JZS131-AEPQF (1991)
Toyota Crown

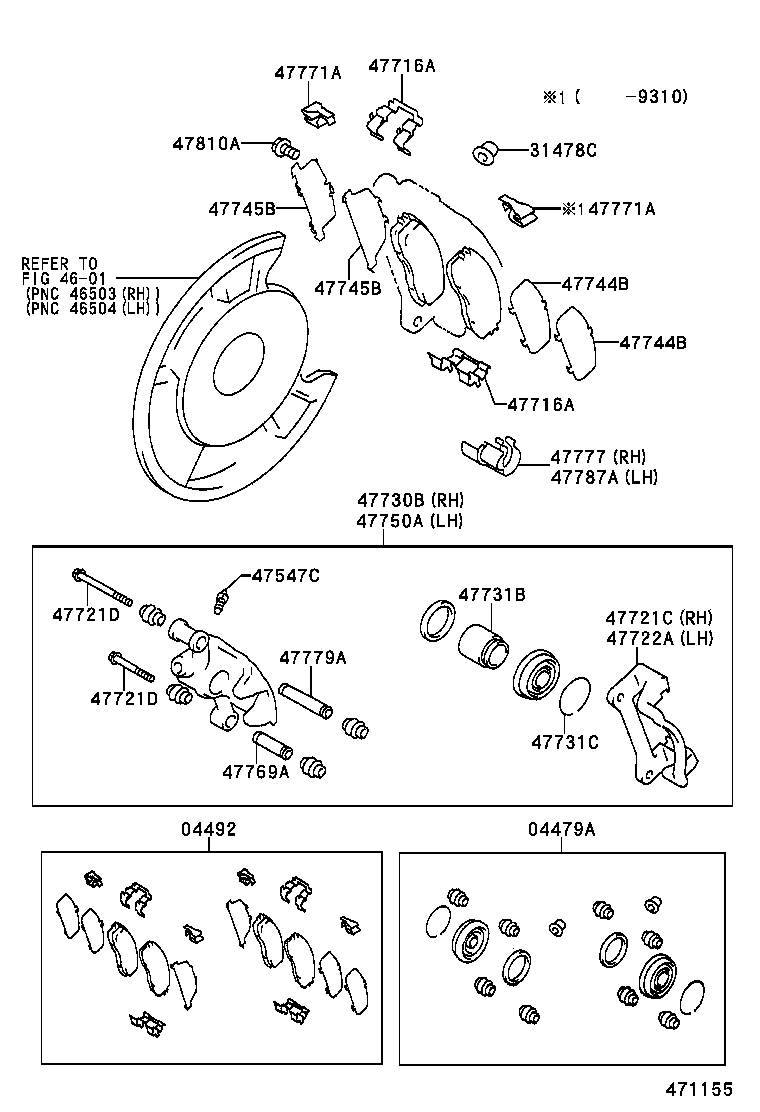

ILLUST NO. 1 OF 2(9110-9512)GS131,JZS131,133,135,LS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-30111 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 04479-30110 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-30130 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27040 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-30050 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-30050 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-30190 |
JZS131,133,135 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-09014 |
GS131,JZS131,133,135,LS131 *9−1.25PX87.4−25 |
2 | ||
| 90119-09013 |
GS131,JZS131,133,135,LS131 *9−1.25PX62.9−25 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-09014 |
GS131,JZS131,133,135,LS131 *9−1.25PX87.4−25 |
2 | ||
| 90119-09013 |
GS131,JZS131,133,135,LS131 *9−1.25PX62.9−25 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-30190 |
JZS131,133,135 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-30290 |
JZS131,133,135 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30090 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-49001 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47744-22091 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47744-22091 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-22051 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-22051 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-30290 |
JZS131,133,135 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-30030 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47771-22040 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 47771-22040 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-20010 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
GS131,JZS131,133,135,LS131 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(9110-9512)GS131,JZS131,133,135,LS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30010 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-22030 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30030 |
GS131,JZS131,133,135,LS131 |
1 | ||
