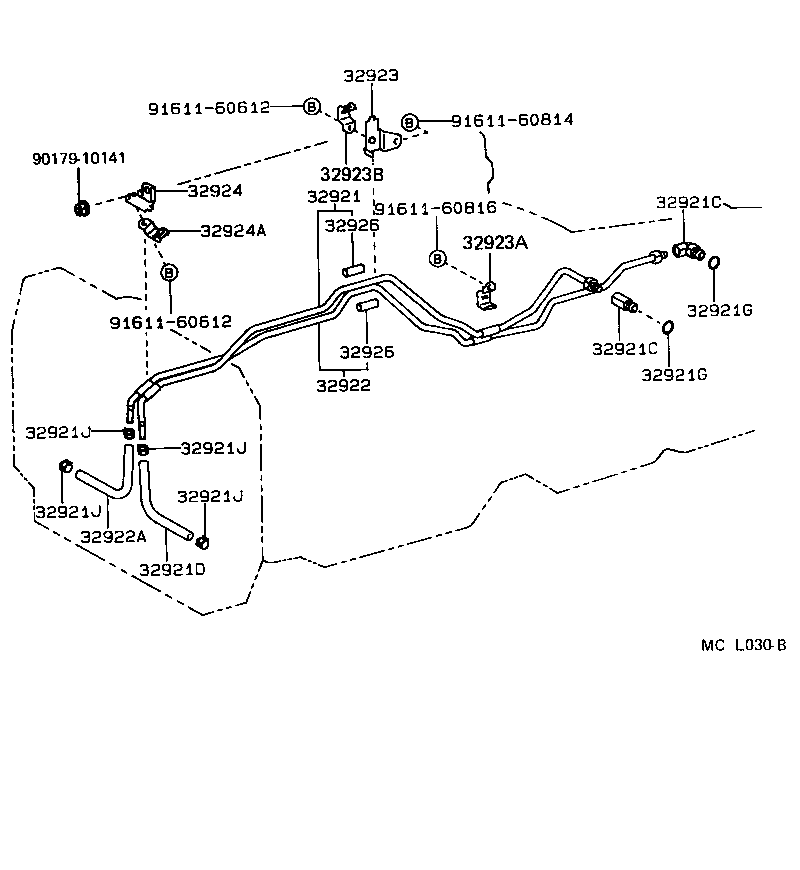

JZS131-AEPQF (1990)
Toyota Crown
(9008- )JZS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-30350 |
GS130,131..ATM..(EFI,TWC) |
1 | ||
| 32921-30500 |
JZS13# |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) OUTLET |
1 | ||
| 90407-16009 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 OUTLET |
1 | ||
| 90404-14007 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) OUTLET |
1 | ||
| 90407-16009 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 OUTLET |
1 | ||
| 90404-14007 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15024 |
GS130,131..ATM..(EFI,HTWC,TWC) |
1 | ||
| 32941-30140 |
JZS13# |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
2 | ||
| 90301-10189 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GS130,131..SPC;JZS13#,MS135,137,UZS131 |
2 | ||
| 90301-10189 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
JZS13#,MS135,137,UZS131 |
4 | ||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
JZS13#,MS135,137,UZS131 |
4 | ||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
JZS13#,MS135,137,UZS131 |
4 | ||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
JZS13#,MS135,137,UZS131 |
4 | ||
| 90467-13039 |
GS130,131,LS13#,MS130,YS130..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-30350 |
GS130,131..ATM..(EFI,TWC) |
1 | ||
| 32922-30500 |
JZS13# |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-30050 |
GS130,131,LS13#..ATM..(DSL,EFI,HTWC,TDE,TWC) |
1 | ||
| 32942-30051 |
GS130,131..ATM..(HTWC,TWC) |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-30150 |
JZS13# |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-30140 |
JZS13# |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-22050 |
JZS13# |
1 | ||
| 32923-30080 |
GS130,131,MS130..ATM..(EFI,HTWC,LPG,TWC) |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-30180 |
JZS13# |
1 | ||
| 32924-30100 |
GS130,131..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS130,131..ATM..(EFI,TWC) 長さ=35,内径=8 |
2 | ||
| 32926-30020 |
JZS13# 長さ=35,内径=10,FR & CTR |
4 | ||
| 32926-30030 |
JZS13# 長さ=35,内径=10,ﾘﾔ |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS130,131..ATM..(EFI,TWC) 長さ=35,内径=8 |
2 | ||
| 32926-30020 |
JZS13# 長さ=35,内径=10,FR & CTR |
4 | ||
| 32926-30030 |
JZS13# 長さ=35,内径=10,ﾘﾔ |
2 | ||
| Common parts | ||||
| 90179-10141 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
