JZS131-AEPJF (1991)
Toyota Crown

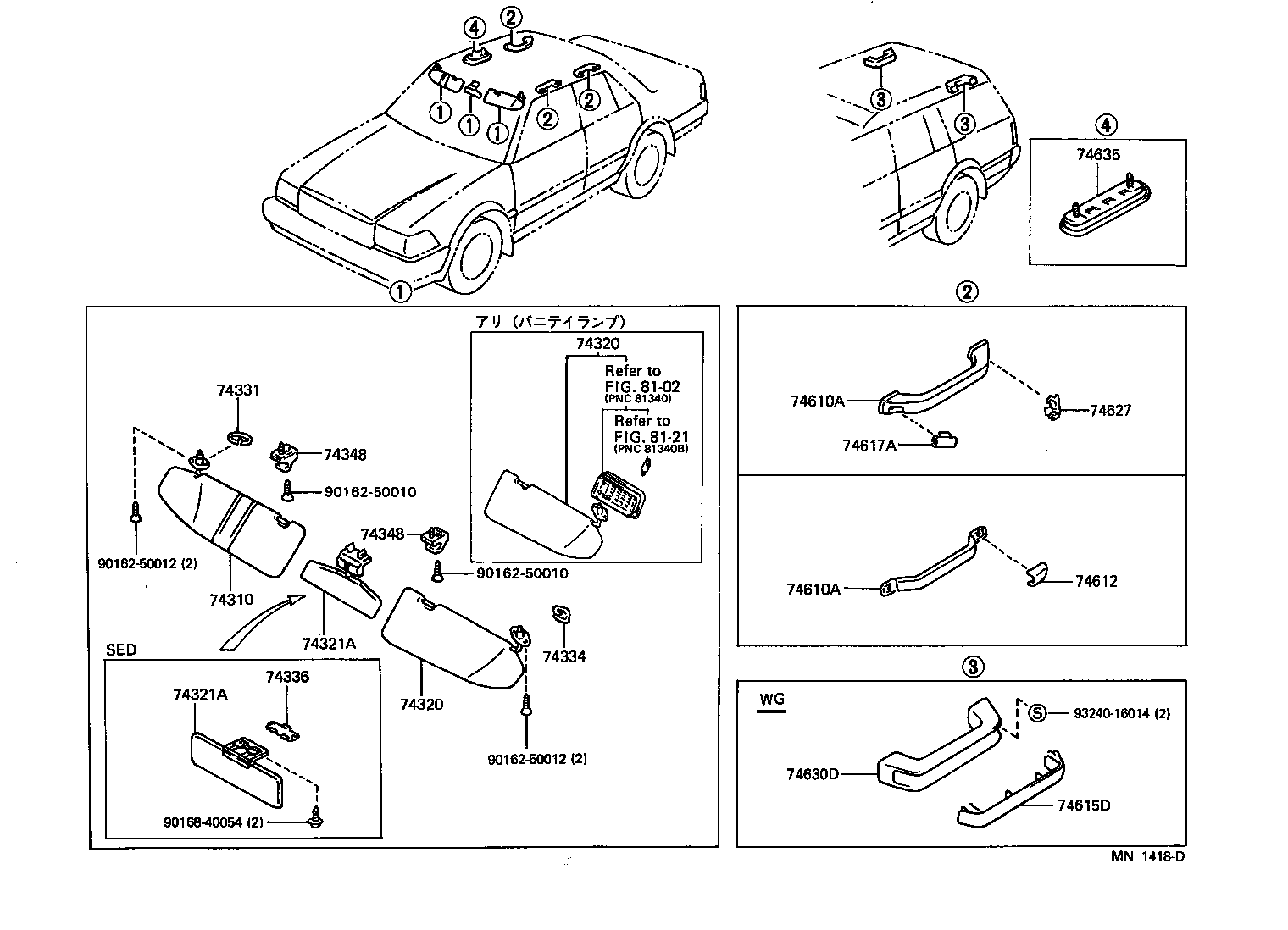

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-30690J1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74310-30691J1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74310-30690E1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74310-30691E1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74310-30692E1 |
GS130,131,JZS131,133,135,LS13#..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74310-30692J1 |
GS130,131,JZS131,133,135,LS13#..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30640E1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74320-30640J1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 74320-30641J1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TWC) DK.BLUE,TRIM8# |
1 | ||
| 74320-30641E1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30640E1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74320-30640J1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 74320-30641J1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TWC) DK.BLUE,TRIM8# |
1 | ||
| 74320-30641E1 |
GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74321A - VISOR, FRONT | ||||
| 74330-30020E3 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74330-30020J3 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74330-30021J4 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74330-30021E4 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74321A - VISOR, FRONT | ||||
| 74330-30020E3 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74330-30020J3 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74330-30021J4 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74330-30021E4 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-24010E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74336-24010W3 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-30010J1 |
GS136;GS130,131,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX LI.BLUE,TRIM8# |
2 | ||
| 74348-30010E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
2 | ||
| 74348-30010J1 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｻﾝﾊﾞｲｻﾞ),LI.BLUE,TRIM8# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-30010J1 |
GS136;GS130,131,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX LI.BLUE,TRIM8# |
2 | ||
| 74348-30010E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
2 | ||
| 74348-30010J1 |
GS13#,JZS13#,LS13#,YS130 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｻﾝﾊﾞｲｻﾞ),LI.BLUE,TRIM8# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30170J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
3 | ||
| 74610-30170E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30170J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
3 | ||
| 74610-30170E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-30140J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
6 | ||
| 74612-30140E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
6 | ||
| 74635 - HOLDER, CARD | ||||
| 74635-16020E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74635-30010J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
1 | ||
| 74635-16020J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) LI.BLUE,TRIM8# |
1 | ||
| 74635-30010E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90162-50010 | ||||
| 90162-50012 | ||||
| 90168-40054 | ||||
| 93240-16014 | ||||
| Linked diagrams | ||||
| 8102 | ||||
| 8121 | ||||

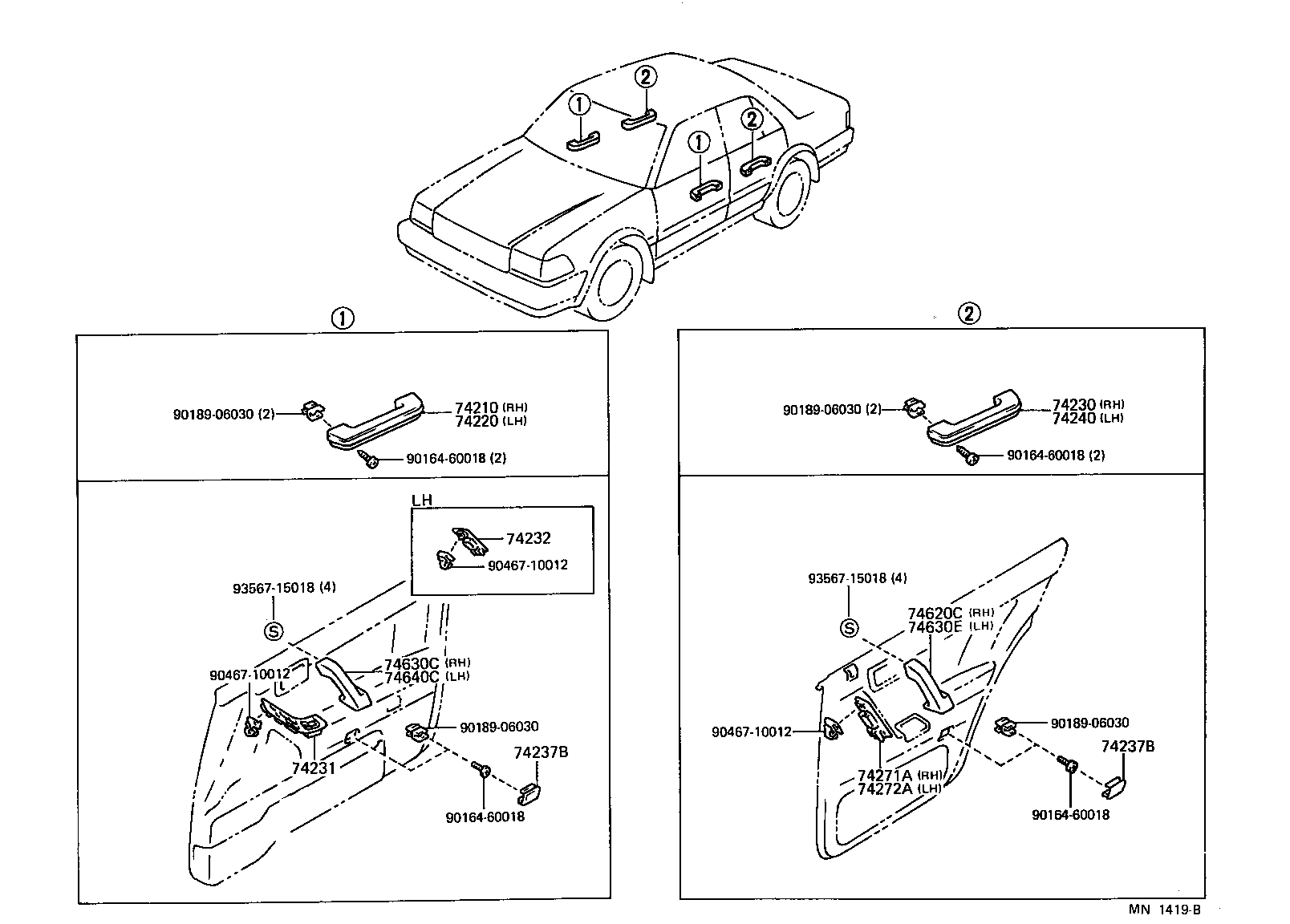

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-30160E0 |
GS130..4H..SDX..HTWC;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74231-30170E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ- ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ),QUARTZ,TRIM4# |
1 | ||
| 74231-30160E0 |
GS130..(SALEX,SDX)..HTWC;GS131,JZS131,133,135,LS130,131..SED QUARTZ,TRIM4# |
1 | ||
| 74231-30160E0 |
GS130..(SALEX,SDX)..HTWC;GS131,JZS131,133,135,LS13#..SED QUARTZ,TRIM4# |
1 | ||
| 74231-30160J0 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 74231-30170J0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ- ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ),DK.BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74231-30150E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74231-30150J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-32010E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
4 | ||
| 74237-32010J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
4 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-32010E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
4 | ||
| 74237-32010J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
4 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-30110E0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..(ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74271-30110J0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..ROY,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-30110E0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..(ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74272-30110J0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..ROY,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74630-30030J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74630-30030E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-30030J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74630-30030E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74640-30020E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74640-30020J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-30020E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 74640-30020J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06030 | ||||
| 90467-10012 | ||||
| 93567-15018 | ||||
