JZS130G-AWSQF (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

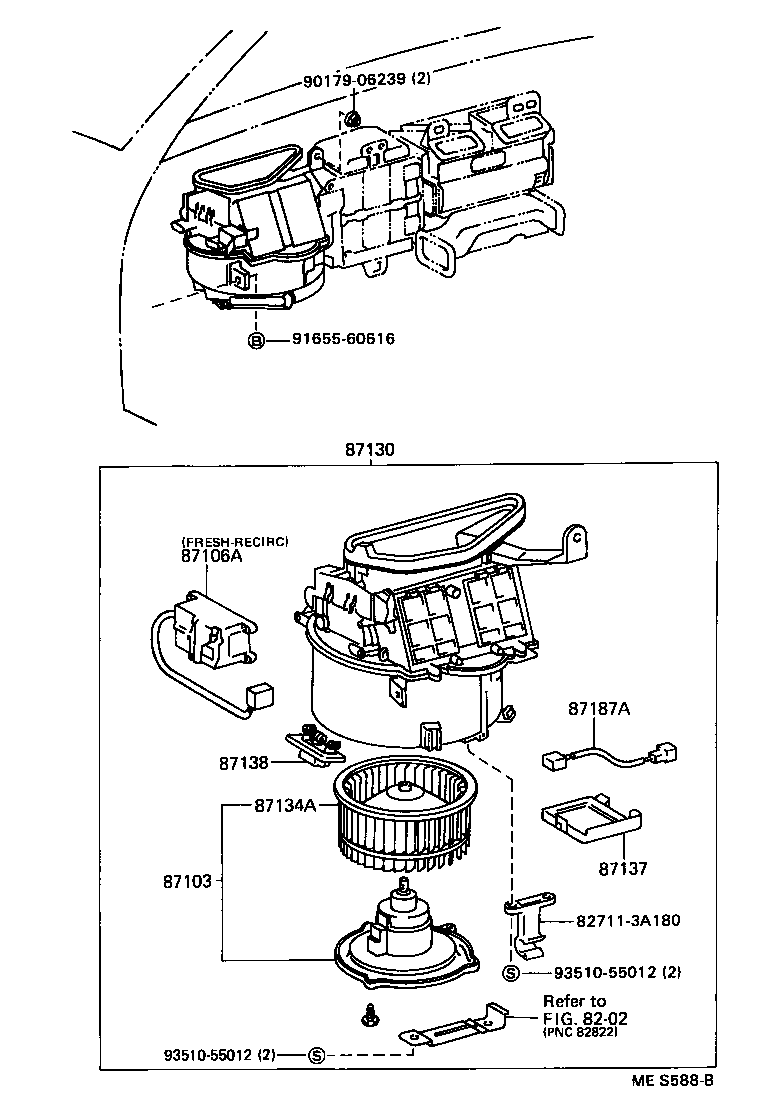

ILLUST NO. 1 OF 2(9110- )GS13#,JZS130,131,133,LS13#,YS130

Click highlighted areas on diagram

ﾋ-ﾀ ﾌﾞﾛﾜ

diagram 8202 827113A180 87103 87106A 87130 87134A 87137 87138 87187A 9017906239 9165560616 9351055012 9351055012
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-30280

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30070

GS13#,JZS130,131,133,LS13#..DLX,ROY,SALEX,SDX

FRESH-RECIRC

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

FRESH-RECIRC

 1
87106-30020

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

BI-LEVEL

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDE,TWC)

FRESH-RECIRC

 1
87106-30011

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ﾓｰﾄﾞ

 1
87106-30091

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ｴｱﾐｯｸｽ

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30470

GS13#,JZS130,131,133,LS13#..DLX,ROY,SALEX,SDX

 1
87134A - FAN, BLOWER, NO.2
87134-30040

GS13#,JZS13#,LS13#

 1
87134-30040

GS13#,JZS13#,LS13#,YS130

 1
87137 - COVER, HEATER BLOWER
87137-30010

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

 1
87138 - RESISTOR, HEATER BLOWER
87138-30370

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
87138-30370

GS13#,JZS130,131,133,LS13#

ﾌﾞﾛﾜ

 1
87138-30370

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
87138-30370

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87187A - WIRE, BLOWER MOTOR LEAD
87187-30010

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

 1
Common parts
82711-3A180
90179-06239
91655-60616
93510-55012
Linked diagrams
8202

ILLUST NO. 2 OF 2(9110- )

Click highlighted areas on diagram

ﾋ-ﾀ ﾗｼﾞｴ-ﾀ

diagram 55907C 87106A 87106A 87106A 87107 87138 8715 8715 8715 8715 87150 88608A 9017906239 9048001420 9048001420
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-30040

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30070

GS13#,JZS130,131,133,LS13#..DLX,ROY,SALEX,SDX

FRESH-RECIRC

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

FRESH-RECIRC

 1
87106-30020

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

BI-LEVEL

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDE,TWC)

FRESH-RECIRC

 1
87106-30011

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ﾓｰﾄﾞ

 1
87106-30091

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ｴｱﾐｯｸｽ

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30070

GS13#,JZS130,131,133,LS13#..DLX,ROY,SALEX,SDX

FRESH-RECIRC

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

FRESH-RECIRC

 1
87106-30020

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

BI-LEVEL

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDE,TWC)

FRESH-RECIRC

 1
87106-30011

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ﾓｰﾄﾞ

 1
87106-30091

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ｴｱﾐｯｸｽ

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30070

GS13#,JZS130,131,133,LS13#..DLX,ROY,SALEX,SDX

FRESH-RECIRC

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

FRESH-RECIRC

 1
87106-30020

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

BI-LEVEL

 1
87106-30070

GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDE,TWC)

FRESH-RECIRC

 1
87106-30011

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ﾓｰﾄﾞ

 1
87106-30091

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

ｴｱﾐｯｸｽ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30390

GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX

 1
87107-30390

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC

 1
87138 - RESISTOR, HEATER BLOWER
87138-30370

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
87138-30370

GS13#,JZS130,131,133,LS13#

ﾌﾞﾛﾜ

 1
87138-30370

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
87138-30370

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-30571

GS130,131,JZS130,131,133,LS130,131..ROY,SALEX

 1
87150-30571

GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDE,TWC)

 1
Common parts
90179-06239
90480-01420
Linked diagrams
8715
