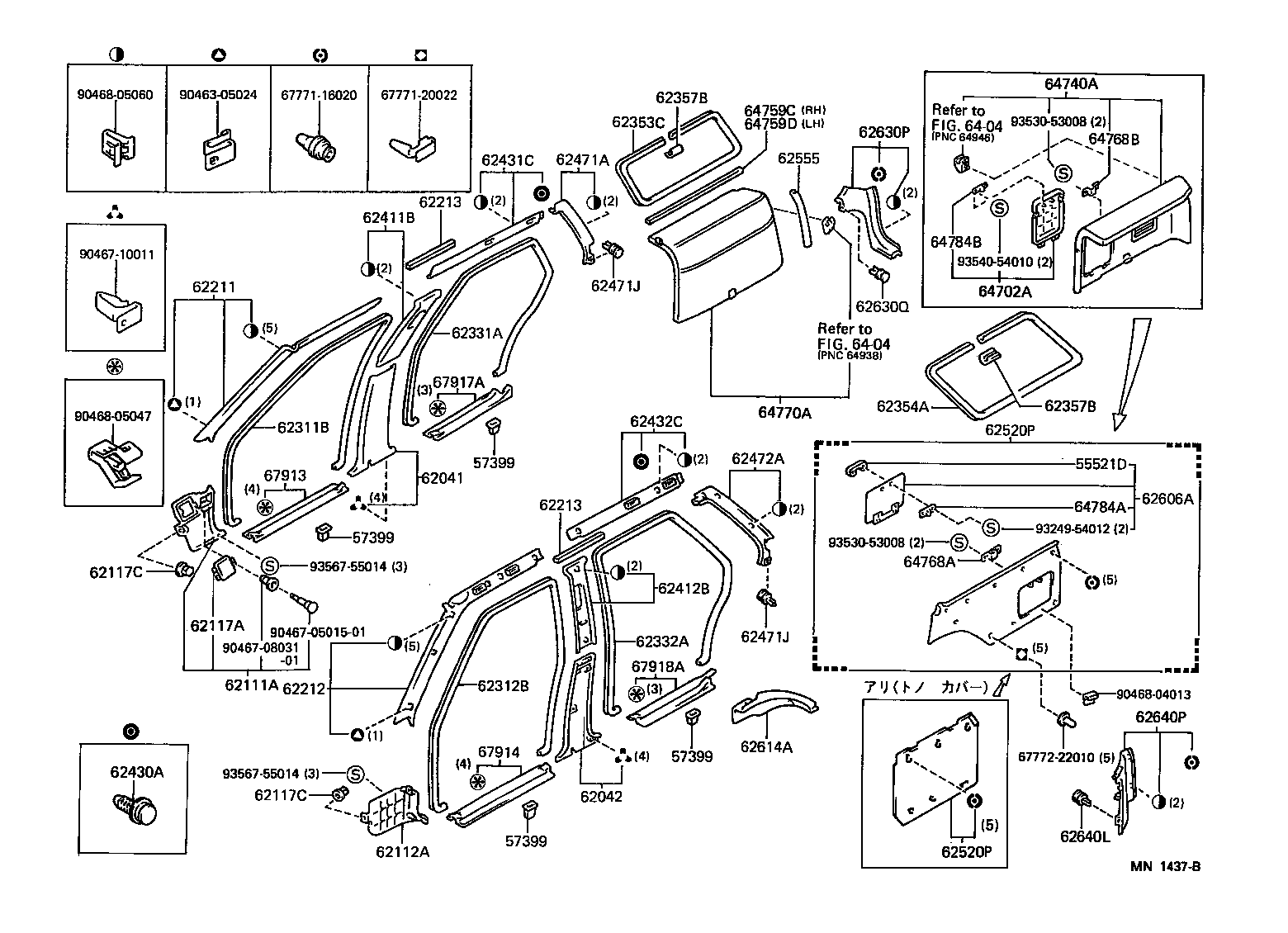

JZS130G-AWSQF (1991)
Toyota Crown
(9110-9512)JZS130,LS130..WG ; (9512- )JZS130,LS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55521D - KNOB, QUARTER TRIM LID | ||||
| 55521-12012E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 55521-12012B0 |
GS130,JZS130,LS130..ROY,SALEX MD.GRAY,TRIM1# |
1 | ||
| 57399 - COVER, FRONT STEP HOLE | ||||
| 57399-24010 |
GS13#,JZS13#,LS13#,YS130 |
14 | ||
| 57399-24010 |
GS13#,JZS13#,LS13# |
14 | ||
| 57399 - COVER, FRONT STEP HOLE | ||||
| 57399-24010 |
GS13#,JZS13#,LS13#,YS130 |
14 | ||
| 57399-24010 |
GS13#,JZS13#,LS13# |
14 | ||
| 57399 - COVER, FRONT STEP HOLE | ||||
| 57399-24010 |
GS13#,JZS13#,LS13#,YS130 |
14 | ||
| 57399-24010 |
GS13#,JZS13#,LS13# |
14 | ||
| 57399 - COVER, FRONT STEP HOLE | ||||
| 57399-24010 |
GS13#,JZS13#,LS13#,YS130 |
14 | ||
| 57399-24010 |
GS13#,JZS13#,LS13# |
14 | ||
| 62041 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH | ||||
| 62041-30050B2 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62041-30050E5 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 62041-30051B2 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62041-30050J5 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62041-30051E5 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62041-30051E5 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 62041-30051B2 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62041-30051J5 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62042 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62042-30050J5 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62042-30051B2 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62042-30050E5 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 62042-30050B2 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62042-30051B2 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62042-30051J5 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62042-30051E5 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 62042-30051E5 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-31010E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62101-30450B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62101-30450J0 |
GS130,JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 62101-31010B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62101-30450E0 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-30420E0 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 62102-31010B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62102-30420B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62102-31010E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62102-30420J0 |
GS130,JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-30032E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62117-30032E1 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 62117-30032B1 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62117-30032J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 62117-30032J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 62117-30032B1 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0505001 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-0505001 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22 |
2 | ||
| 90467-0505022 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22 |
2 | ||
| 90467-06120 |
GS13#,JZS13#,LS13#,YS130 PLANT NO.A21-A26 |
2 | ||
| 90467-0505022 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,ﾀｲﾌﾟ A |
2 | ||
| 90467-06120 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
2 | ||
| 90467-0505022 |
GS130,JZS130,LS130..ROY,SALEX BLACK,TRIM1#,4#,ﾀｲﾌﾟ A |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0505001 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-0505001 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22 |
2 | ||
| 90467-0505022 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22 |
2 | ||
| 90467-06120 |
GS13#,JZS13#,LS13#,YS130 PLANT NO.A21-A26 |
2 | ||
| 90467-0505022 |
JZS13#..ROY,ROYG BLACK,TRIM1#,4#,8#,ﾀｲﾌﾟ A |
2 | ||
| 90467-06120 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
2 | ||
| 90467-0505022 |
GS130,JZS130,LS130..ROY,SALEX BLACK,TRIM1#,4#,ﾀｲﾌﾟ A |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-31010J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62211-31010B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62211-31010B1 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62211-31010E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62211-31010E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-31010E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62212-31010B1 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62212-31010J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62212-31010E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62212-31010B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62213 - PAD, FRONT PILLAR GARNISH | ||||
| 62213-91701 |
GS130,JZS130,LS130..WG..(ROY,SALEX) |
2 | ||
| 62213 - PAD, FRONT PILLAR GARNISH | ||||
| 62213-91701 |
GS130,JZS130,LS130..WG..(ROY,SALEX) |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-30090B0 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62311-30090J0 |
JZS130;GS130,131,JZS131,LS130,131..SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62311-30090E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62311-30090E0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..(ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 62311-30090B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-30080B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62312-30080E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62312-30080J0 |
JZS130;GS130,131,JZS131,LS130,131..SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 62312-30080B0 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62312-30080E0 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..(ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-91703B0 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62331-91703E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 62331-91703J0 |
GS130,JZS130,LS130..WG DK.BLUE,TRIM8# |
1 | ||
| 62331-91703E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62331-91703B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-91703B0 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62332-91703J0 |
GS130,JZS130,LS130..WG DK.BLUE,TRIM8# |
1 | ||
| 62332-91703B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62332-91703E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 62353C - TRIM, QUARTER WINDOW INSIDE, RH | ||||
| 62353-91705E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 62353-91705B0 |
JZS130..ROY LI.GRAY,TRIM1# |
1 | ||
| 62353-91705J0 |
GS130,136,JZS130,LS130,136..V,WG LI.BLUE,TRIM8# |
1 | ||
| 62353-91705B0 |
GS130,JZS130,LS130..ROY,SALEX LI.GRAY,TRIM1# |
1 | ||
| 62353-91705E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62354A - TRIM, QUARTER WINDOW INSIDE, LH | ||||
| 62354-91702B0 |
JZS130..ROY LI.GRAY,TRIM1# |
1 | ||
| 62354-91702E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 62354-91702B0 |
GS130,JZS130,LS130..ROY,SALEX LI.GRAY,TRIM1# |
1 | ||
| 62354-91702J0 |
GS130,136,JZS130,LS130,136..V,WG LI.BLUE,TRIM8# |
1 | ||
| 62354-91702E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62357B - COVER, QUARTER WINDOW INSIDE TRIM | ||||
| 62357-91704E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
2 | ||
| 62357-91704B0 |
JZS130..ROY LI.GRAY,TRIM1# |
2 | ||
| 62357-91704B0 |
GS130,JZS130,LS130..ROY,SALEX LI.GRAY,TRIM1# |
2 | ||
| 62357-91704J0 |
GS130,136,JZS130,LS130,136..V,WG LI.BLUE,TRIM8# |
2 | ||
| 62357-91704E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
2 | ||
| 62357B - COVER, QUARTER WINDOW INSIDE TRIM | ||||
| 62357-91704E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
2 | ||
| 62357-91704B0 |
JZS130..ROY LI.GRAY,TRIM1# |
2 | ||
| 62357-91704B0 |
GS130,JZS130,LS130..ROY,SALEX LI.GRAY,TRIM1# |
2 | ||
| 62357-91704J0 |
GS130,136,JZS130,LS130,136..V,WG LI.BLUE,TRIM8# |
2 | ||
| 62357-91704E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62410-30300E1 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 62410-30300B1 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62410-30300E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62410-30300J1 |
GS130,JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 62410-30300B1 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62420-30290E1 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 62420-30290J1 |
GS130,JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 62420-30290B1 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62420-30290E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62420-30290B1 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-08038 |
GS130,JZS130,LS130..WG..(ROY,SALEX) |
2 | ||
| 62431C - GARNISH, ROOF SIDE RAIL, FRONT RH | ||||
| 62431-31010B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62431-31010E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62431-31010J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62432C - GARNISH, ROOF SIDE RAIL, FRONT LH | ||||
| 62432-31010B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62432-31010E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62432-31010J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-31020E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62471-31020B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62471-31020J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62471-31020E1 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 62471-31020B1 |
JZS130,LS130 SHADOW GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-08114E0 |
JZS130,LS130..WG QUARTZ,TRIM4# |
2 | ||
| 90467-08114B0 |
JZS130..ROY GRAY,TRIM1# |
2 | ||
| 90467-08114B0 |
JZS130,LS130 GRAY,TRIM1# |
2 | ||
| 90467-08114J0 |
JZS130,LS130..WG DK.BLUE,TRIM8# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-08114E0 |
JZS130,LS130..WG QUARTZ,TRIM4# |
2 | ||
| 90467-08114B0 |
JZS130..ROY GRAY,TRIM1# |
2 | ||
| 90467-08114B0 |
JZS130,LS130 GRAY,TRIM1# |
2 | ||
| 90467-08114J0 |
JZS130,LS130..WG DK.BLUE,TRIM8# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-31020J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62472-31020E1 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 62472-31020B1 |
JZS130,LS130 SHADOW GRAY,TRIM1# |
1 | ||
| 62472-31020B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 62472-31020E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-31070B0 |
JZS130,LS130 MD.GRAY,TRIM1# |
1 | ||
| 62520-31060 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-) |
1 | ||
| 62520-31070E0 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-31070B0 |
JZS130,LS130 MD.GRAY,TRIM1# |
1 | ||
| 62520-31060 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-) |
1 | ||
| 62520-31070E0 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 62555 - TRIM, BACK SIDE | ||||
| 62555-91701 |
GS130,JZS130,LS130..WG |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62606-31010B1 |
GS130,JZS130,LS130..ROY,SALEX MD.GRAY,TRIM1# |
1 | ||
| 62606-31010E1 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62614A - COVER, QUARTER WHEEL HOUSE, LH | ||||
| 62620-31030E0 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 62620-31030B0 |
JZS130,LS130 GRAY,TRIM1# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62631-91707E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 62631-91707E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62631-91707B0 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 62631-91707J0 |
GS130,JZS130,LS130..WG DK.BLUE,TRIM8# |
1 | ||
| 62631-91707B0 |
GS130,JZS130,LS130..ROY,SALEX GRAY,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-08114J0 |
GS130,JZS130,LS130..WG DK.BLUE,TRIM8# |
1 | ||
| 90467-08114B0 |
GS130,JZS130,LS130..ROY,SALEX GRAY,TRIM1# |
1 | ||
| 90467-08114E0 |
GS130,JZS130,LS130..WG QUARTZ,TRIM4# |
1 | ||
| 90467-08114B0 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 90467-08114E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-08114E0 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 90467-08114E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
2 | ||
| 90467-08114B0 |
GS130,JZS130,LS130..ROY,SALEX GRAY,TRIM1# |
2 | ||
| 90467-08114B0 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 90467-08114J0 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 90467-08114B0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),GRAY,TRIM1# |
1 | ||
| 90467-08114E0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),QUARTZ,TRIM4# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-91708J0 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 62632-91708E0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),QUARTZ,TRIM4# |
1 | ||
| 62602-31020B0 |
GS130,JZS130,LS130..ROY,SALEX MD.GRAY,TRIM1# |
1 | ||
| 62602-31020E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 62632-91708B0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),GRAY,TRIM1# |
1 | ||
| 62632-91708E0 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 62632-91708B0 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 64702A - COVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE | ||||
| 64702-31010J0 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 64702-31010E0 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 64702-31020B0 |
JZS130,LS130 MD.GRAY,TRIM1# |
1 | ||
| 64702-31020E0 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 64702-31010B0 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 64740A - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-31020B1 |
JZS130..ROY SHADOW GRAY,TRIM1# |
1 | ||
| 64740-31020J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 64740-31040B0 |
JZS130..ROY ｱﾘ(ﾄﾉ ｶﾊﾞ- & ﾘﾔ ｴｱｺﾝ),MD.GRAY,TRIM1# |
1 | ||
| 64740-31020E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 64740-31040E0 |
JZS130..ROY ｱﾘ(ﾘﾔ ｴｱｺﾝ),QUARTZ,TRIM4# |
1 | ||
| 64740-31030B0 |
JZS130..ROY ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.GRAY,TRIM1# |
1 | ||
| 64740-31040E0 |
JZS130..ROY ｱﾘ(ﾄﾉ ｶﾊﾞ- & ﾘﾔ ｴｱｺﾝ),QUARTZ,TRIM4# |
1 | ||
| 64740-31030E0 |
JZS130..ROY ｱﾘ(ﾄﾉ ｶﾊﾞ-),QUARTZ,TRIM4# |
1 | ||
| 64740-31040B0 |
JZS130..ROY ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.GRAY,TRIM1# |
1 | ||
| 64759C - SILENCER, SPARE WHEEL COVER END, RH | ||||
| 64759-91702 |
GS130,JZS130,LS130..WG |
1 | ||
| 64759D - SILENCER, SPARE WHEEL COVER END, LH | ||||
| 64759-91702 |
JZS130,LS130..WG |
1 | ||
| 64768A - STOPPER, QUARTER TRIM LID | ||||
| 64768-91701 |
GS13#,JZS130,LS130 |
1 | ||
| 64768B - STOPPER, QUARTER TRIM LID | ||||
| 64768-91701 |
JZS130,LS130..WG |
1 | ||
| 64770A - COVER ASSY, SPARE WHEEL | ||||
| 64770-31020B1 |
JZS130..ROY ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1# |
1 | ||
| 64770-31020J1 |
JZS130..ROY ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),DK.BLUE,TRIM8# |
1 | ||
| 64770-31050J1 |
JZS130..ROY DK.BLUE,TRIM8# |
1 | ||
| 64770-31020E1 |
JZS130..ROY ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4# |
1 | ||
| 64770-31050B1 |
JZS130..ROY GRAY,TRIM1# |
1 | ||
| 64770-31050E1 |
JZS130..ROY QUARTZ,TRIM4# |
1 | ||
| 64770-31110E0 |
GS130,JZS130,LS130..ROY,SALEX ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4# |
1 | ||
| 64770-31110B0 |
GS130,JZS130,LS130..ROY,SALEX ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 64770-31140E1 |
JZS130,LS130 QUARTZ,TRIM4# |
1 | ||
| 64770-31120E0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),QUARTZ,TRIM4# |
1 | ||
| 64770-31140B1 |
JZS130,LS130 MD.GRAY,TRIM1# |
1 | ||
| 64770-31130B0 |
JZS130,LS130 ｱﾘ(ﾄﾉｶﾊﾞ- & ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),MD.GRAY,TRIM1# |
1 | ||
| 64770-31130E0 |
JZS130,LS130 ｱﾘ(ﾄﾉｶﾊﾞ- & ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4# |
1 | ||
| 64770-31120B0 |
JZS130,LS130 ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.GRAY,TRIM1# |
1 | ||
| 64784A - HOOK, QUARTER TRIM LID | ||||
| 64784-91701 |
GS13#,JZS130,LS130 |
1 | ||
| 64784B - HOOK, QUARTER TRIM LID | ||||
| 64784-91701 |
JZS130,LS130..WG |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-30160E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 67913-30160B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67913-30160J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 67913-30160E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67913-30160J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 67913-30160B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67913-30160B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67913-30160E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 67913-30160E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67913-30160J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 67913-30160J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 67913-30160B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-30110J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 67917-30110E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67917-30110E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 67917-30110B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| 67917-30110J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 67917-30110B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-30090J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 67918-30090B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67918-30090J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 67918-30090E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67918-30090E0 |
GS130,JZS130,LS130..ROY,SALEX QUARTZ,TRIM4# |
1 | ||
| 67918-30090B0 |
GS130,JZS130,LS130..ROY,SALEX SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-16020 | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 90463-05024 | ||||
| 90467-0501501 | ||||
| 90467-0803101 | ||||
| 90467-10011 | ||||
| 90468-04013 | ||||
| 90468-05047 | ||||
| 90468-05060 | ||||
| 93249-54012 | ||||
| 93530-53008 | ||||
| 93540-54010 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 6404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
