JZS130G-AWSQF (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

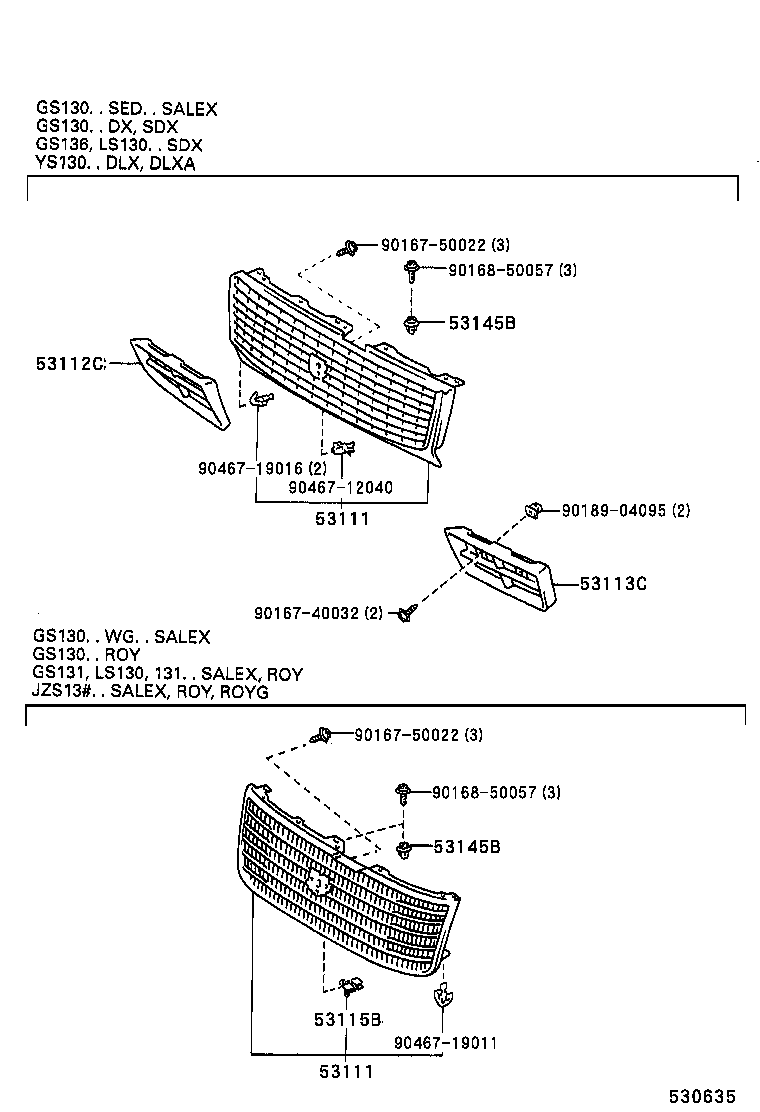

Click highlighted areas on diagram

diagram 53111 53111 53112C 53113C 53115B 53145B 53145B 9016740032 9016750022 9016750022 9016850057 9016850057 9018904095 9046712040 9046719011 9046719016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-30630

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

 1
53111-30710

GS130,JZS130,LS130..ROY,SALEX

 1
53111-30590

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

 1
53111 - GRILLE, RADIATOR
53111-30630

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

 1
53111-30710

GS130,JZS130,LS130..ROY,SALEX

 1
53111-30590

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010

GS13#,JZS13#,LS13#

 1
53145-16010

GS13#,JZS13#,LS13#,YS130

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010

GS13#,JZS13#,LS13#

 1
53145-16010

GS13#,JZS13#,LS13#,YS130

 1
Common parts
90167-40032
90167-50022
90168-50057
90189-04095
90467-12040
90467-19011
90467-19016

(9110- )

Click highlighted areas on diagram

diagram 53111 53131A 53132A 53145B 9016740010 9016750022 9016850057 9018904041 9046712040 9046713011 9046713011 9046719016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-30630

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

 1
53111-30710

GS130,JZS130,LS130..ROY,SALEX

 1
53111-30590

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010

GS13#,JZS13#,LS13#

 1
53145-16010

GS13#,JZS13#,LS13#,YS130

 1
Common parts
90167-40010
90167-50022
90168-50057
90189-04041
90467-12040
90467-13011
90467-19016
