JZS130G-AWPQF (1990)
Toyota Crown

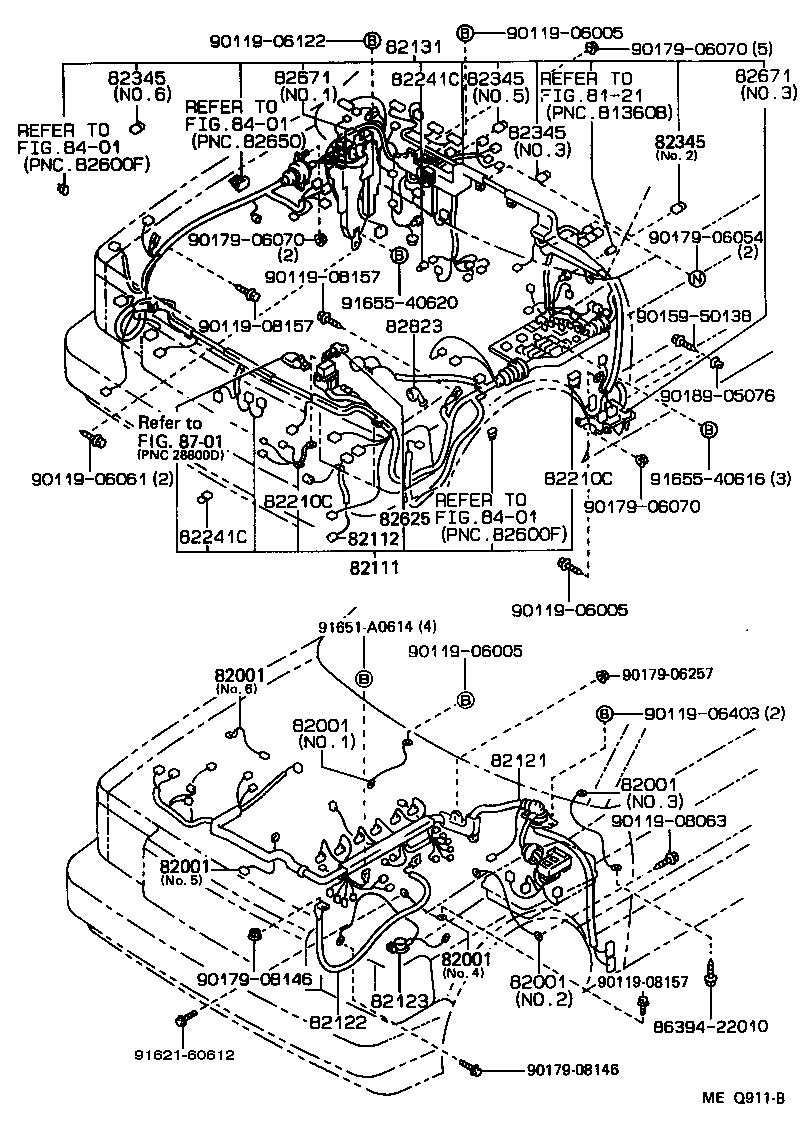

ILLUST NO. 1 OF 9(9008- )JZS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
JZS13# NO.2,NO.3 |
2 | ||
| 90980-07300 |
JZS13# NO.6 |
1 | ||
| 90980-07219 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 90980-07156 |
JZS13# NO.4 |
1 | ||
| 90980-07343 |
JZS13# NO.2 |
1 | ||
| 90980-07270 |
JZS13# NO.5 |
1 | ||
| 90980-07356 |
JZS13# NO.3 |
1 | ||
| 90980-07238 |
GS13#,JZS13#,MS13#,UZS131,YS130 NO.3 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3A430 |
JZS13# |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30090 |
JZS13# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30540 |
JZS13# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30310 |
JZS13# |
1 | ||
| 82122-30320 |
JZS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30170 |
GS130,131,JZS13# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3K110 |
JZS13#..ROY |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08169 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS13#,JZS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08169 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=110,1.0Y |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
GS13#,JZS13#,MS13#,UZS131,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13#,MS13#,UZS131 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 40A,ﾒｽ端子,緑 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
GS130..STD..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL COWL,NO.5 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12030 |
GS13#,JZS13#,MS135..HTWC,SPC,TWC |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30170 |
GS130,JZS130..ROY LH CENTER RILLAR |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30170 |
GS130,JZS130..ROY LH CENTER RILLAR |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06122 | ||||
| 90119-06403 | ||||
| 90119-08063 | ||||
| 90119-08157 | ||||
| 90159-50138 | ||||
| 90179-06054 | ||||
| 90179-06070 | ||||
| 90179-06257 | ||||
| 90179-08146 | ||||
| 90189-05076 | ||||
| 91621-60612 | ||||
| 91651-A0614 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8701 | ||||
