JZS130G-AWPQF (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )WG

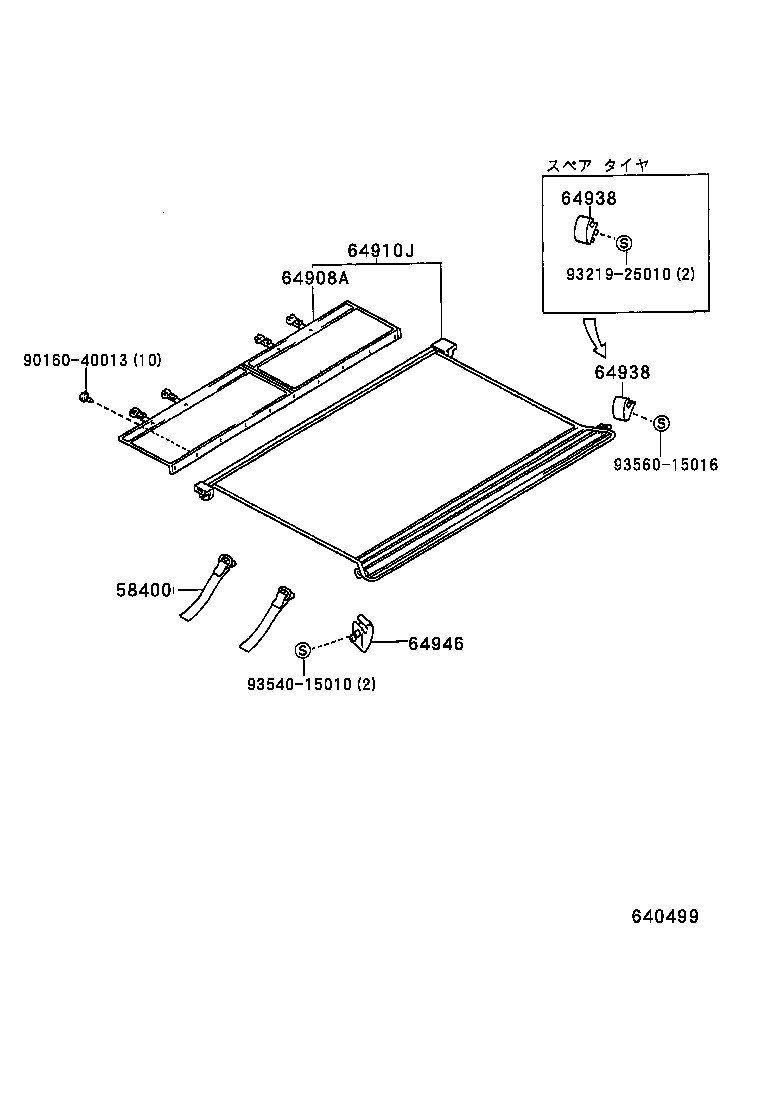

Click highlighted areas on diagram

ｱﾘ(ﾄﾉｶﾊﾞ-;ﾒ-ｶ- ｿｳﾁﾔｸ)

diagram 58400 64908A 64910J 64938 64938 64946 9016040013 9321925010 9354015010 9356015016
Part # Description Qty Price
58400 - BELT ASSY, LUGGAGE HOLD, NO.1
58400-91701B0

JZS130,LS130

SHADOW GRAY,TRIM1#

 2
58400-91701J0

JZS130,LS130..WG

DK.BLUE,TRIM8#

 2
58400-91701E0

JZS130,LS130..WG

QUARTZ,TRIM4#

 2
58400-91701B0

JZS130..ROY

SHADOW GRAY,TRIM1#

 2
64908A - COVER SUB-ASSY, TONNEAU SUB
64908-91702J1

JZS130,LS130..WG

DK.BLUE,TRIM8#

 1
64908-91702E1

JZS130,LS130..WG

QUARTZ,TRIM4#

 1
64908-91702B1

JZS130..ROY

GRAY,TRIM1#

 1
64908-91702B1

JZS130,LS130

GRAY,TRIM1#

 1
64910J - COVER ASSY, TONNEAU
64910-31010J1

JZS130,LS130..WG

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),DK.BLUE,TRIM8#

 1
64910-31010E1

JZS130,LS130..WG

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4#

 1
64910-31010B1

JZS130,LS130

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64910-91704B1

JZS130..ROY

GRAY,TRIM1#

 1
64910-91704E1

JZS130,LS130..WG

QUARTZ,TRIM4#

 1
64910-91704B1

JZS130,LS130

GRAY,TRIM1#

 1
64910-91704J1

JZS130,LS130..WG

DK.BLUE,TRIM8#

 1
64910-31010B1

JZS130..ROY

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64938 - HOOK, TONNEAU COVER, A
64938-31010J0

JZS130,LS130..WG

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),DK.BLUE,TRIM8#

 1
64938-31010B0

JZS130..ROY

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64938-91702B0

JZS130,LS130

GRAY,TRIM1#

 1
64938-91702B0

JZS130..ROY

GRAY,TRIM1#

 1
64938-91702E0

JZS130,LS130..WG

QUARTZ,TRIM4#

 1
64938-31010E0

GS130,JZS130,LS130..WG..(ROY,SALEX)

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4#

 1
64938-91702J0

JZS130,LS130..WG

DK.BLUE,TRIM8#

 1
64938-31010B0

GS130,JZS130,LS130..ROY,SALEX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64938 - HOOK, TONNEAU COVER, A
64938-31010J0

JZS130,LS130..WG

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),DK.BLUE,TRIM8#

 1
64938-31010B0

JZS130..ROY

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64938-91702B0

JZS130,LS130

GRAY,TRIM1#

 1
64938-91702B0

JZS130..ROY

GRAY,TRIM1#

 1
64938-91702E0

JZS130,LS130..WG

QUARTZ,TRIM4#

 1
64938-31010E0

GS130,JZS130,LS130..WG..(ROY,SALEX)

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),QUARTZ,TRIM4#

 1
64938-91702J0

JZS130,LS130..WG

DK.BLUE,TRIM8#

 1
64938-31010B0

GS130,JZS130,LS130..ROY,SALEX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ｸﾞﾗﾝﾄﾞ ﾀｲﾔ),GRAY,TRIM1#

 1
64946 - HOOK, TONNEAU COVER, B
64946-91701J0

JZS130,LS130..WG

DK.BLUE,TRIM8#

 1
64946-91701B0

JZS130..ROY

GRAY,TRIM1#

 1
64946-91701E0

JZS130,LS130..WG

QUARTZ,TRIM4#

 1
64946-91701B0

JZS130,LS130

GRAY,TRIM1#

 1
Common parts
90160-40013
93219-25010
93540-15010
93560-15016
