JZS130G-AWPQF (1991)
Toyota Crown

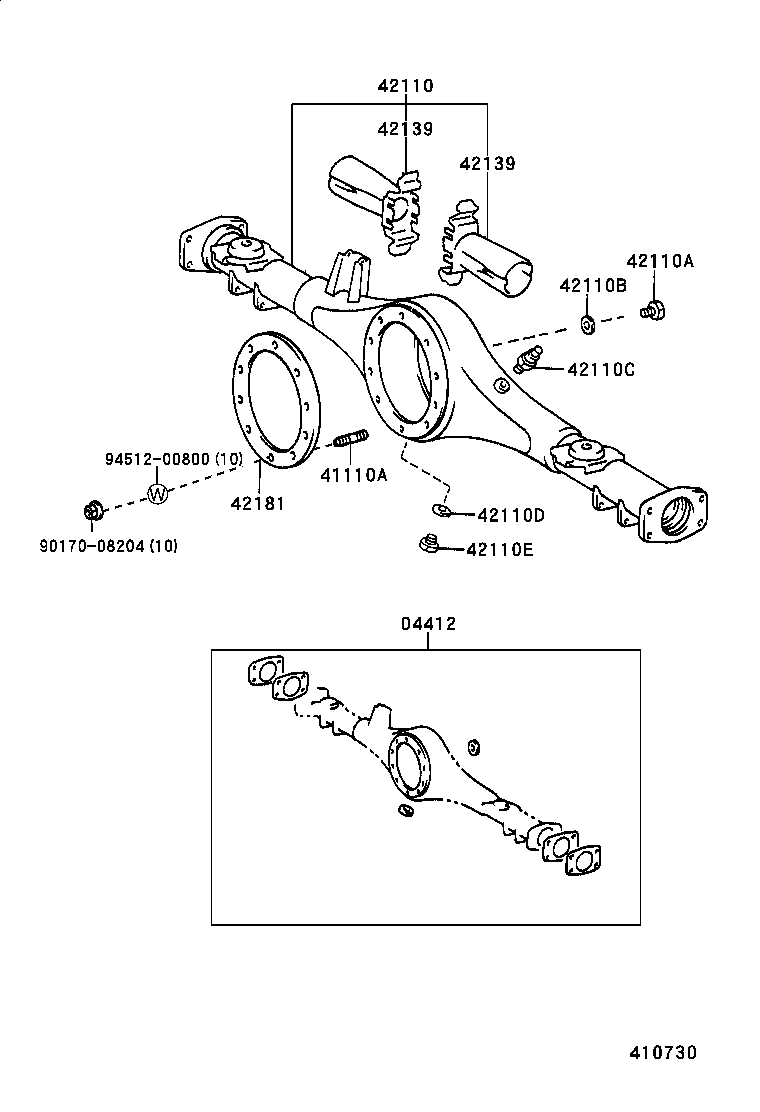

ILLUST NO. 2 OF 2(9110- )GS130,136,JZS130,LS130,136,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-30050 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
GS130,136,JZS130,LS130,136 ﾈｼﾞ部長さ=12 & 15,長さ=34 |
10 | ||
| 90116-08235 |
GS130,136,JZS130,LS130,136,YS130 ﾈｼﾞ部長さ=12 & 15,長さ=34 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-30260 |
GS130,JZS130,LS130..WG |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 90341-18006 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 12157-10010 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 90930-03031 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 12157-10010 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GS130,136,JZS130,LS130,136..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
GS130,JZS130,LS130 |
2 | ||
| 42108-30010 |
GS130,JZS130,LS130,YS130 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
GS130,JZS130,LS130 |
2 | ||
| 42108-30010 |
GS130,JZS130,LS130,YS130 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30020 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 42181-30020 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||

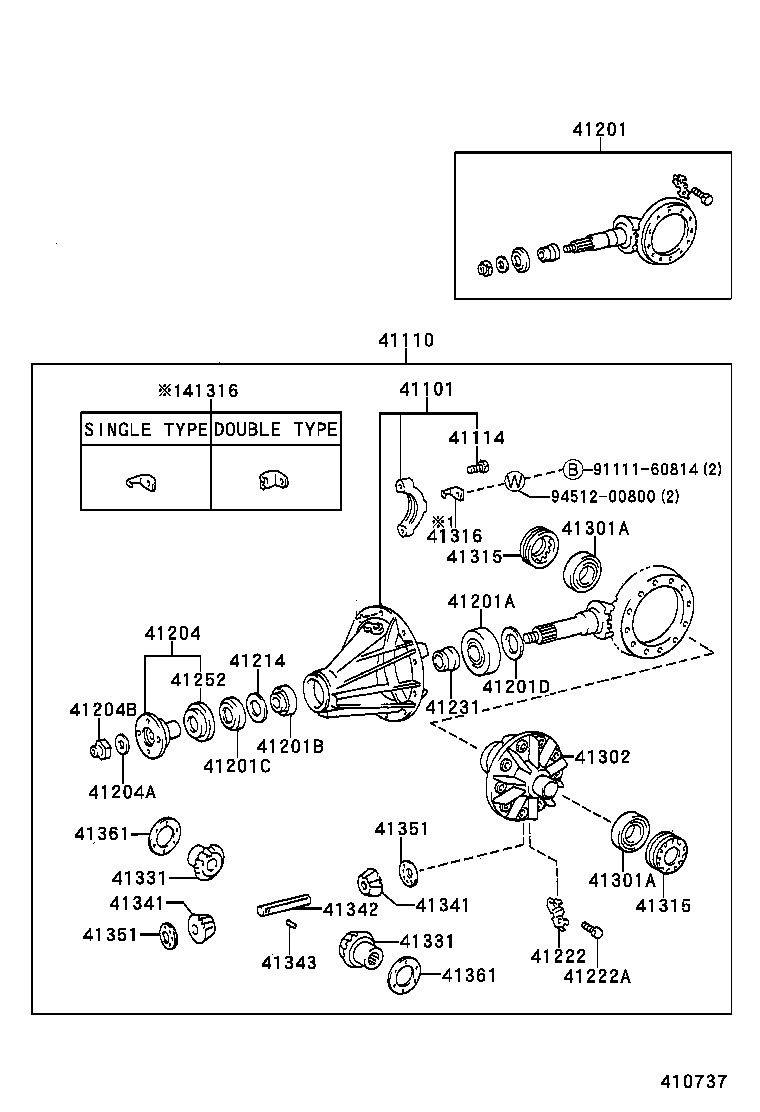

ILLUST NO. 1 OF 2(9110- )GS130,136,JZS130,LS130,136,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30031 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 41101-30031 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-28070 |
YS130..4H;JZS130,LS130 *FGR=43:10=4.300 |
1 | ||
| 41110-28070 |
JZS130,LS130 *FGR=43:10=4.300 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GS130,136,JZS130,LS130,136 |
4 | ||
| 90105-12053 |
GS130,136,JZS130,LS130,136,YS130 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80004 |
YS130..4H;JZS130,LS13# *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35073 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 90366-35073 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 90366-35023 |
GS13#,JZS130,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30055 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 90366-30022 |
GS13#,JZS130,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 90366-30055 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 90366-30055 |
GS13#,JZS130,LS130 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 90311-38133 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 90311-38047 |
GS13#,JZS130,LS130 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
GS13#,JZS130,LS13# 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35401 |
GS13#,JZS130,LS13# 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35399 |
GS13#,JZS130,LS13# 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35396 |
GS13#,JZS130,LS13# 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35434 |
GS13#,JZS130,LS13# 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35400 |
GS13#,JZS130,LS13# 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35398 |
GS13#,JZS130,LS13# 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35439 |
GS13#,JZS130,LS13# 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35436 |
GS13#,JZS130,LS13# 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35435 |
GS13#,JZS130,LS13# 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35404 |
GS13#,JZS130,LS13# 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35437 |
GS13#,JZS130,LS13# 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35440 |
GS13#,JZS130,LS13# 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 90201-35403 |
GS13#,JZS130,LS13# 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35434 |
GS13#,JZS130,LS13#,YS130 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35437 |
GS13#,JZS130,LS13#,YS130 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35438 |
GS13#,JZS130,LS13# 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35441 |
GS13#,JZS130,LS13# 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35402 |
GS13#,JZS130,LS13# 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35435 |
GS13#,JZS130,LS13#,YS130 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35436 |
GS13#,JZS130,LS13#,YS130 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35396 |
GS13#,JZS130,LS13#,YS130 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35398 |
GS13#,JZS130,LS13#,YS130 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35400 |
GS13#,JZS130,LS13#,YS130 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35515 |
GS13#,JZS13#,LS13#,YS130 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35441 |
GS13#,JZS130,LS13#,YS130 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35438 |
GS13#,JZS130,LS13#,YS130 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35397 |
GS13#,JZS130,LS13#,YS130 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35440 |
GS13#,JZS130,LS13#,YS130 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 90201-35401 |
GS13#,JZS130,LS13#,YS130 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35402 |
GS13#,JZS130,LS13#,YS130 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35403 |
GS13#,JZS130,LS13#,YS130 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35399 |
GS13#,JZS130,LS13#,YS130 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35404 |
GS13#,JZS130,LS13#,YS130 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35439 |
GS13#,JZS130,LS13#,YS130 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35518 |
GS13#,JZS13#,LS13#,YS130 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35517 |
GS13#,JZS13#,LS13#,YS130 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35516 |
GS13#,JZS13#,LS13#,YS130 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35050 |
JZS130,LS130,131 |
1 | ||
| 41204-35050 |
GS130,JZS130,LS130,131,YS130..LPEFI,TDE,TDEC,TWC,TWLPG |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 90201-18485 |
GS13#,JZS130,LS13# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18020 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 90179-18001 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 90179-18020 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 90179-18001 |
GS13#,JZS130,LS13# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
GS13#,JZS130,LS13# |
1 | ||
| 41214-30021 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
GS13#,JZS130,LS13# |
5 | ||
| 41222-35030 |
GS13#,JZS130,LS13#,YS130 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GS13#,JZS13#,LS13#,YS130 |
10 | ||
| 90101-11353 |
GS13#,JZS13#,LS13# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 41231-22010 |
GS13#,JZS130,LS13# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
GS13#,JZS130,LS13# |
1 | ||
| 41252-30010 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90368-45066 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90368-45066 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30050 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 41311-30050 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41315-35010 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41315-35010 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
GS130,136,JZS130,LS130,136,YS130 SINGLE TYPE |
2 | ||
| 41316-30010 |
GS130,136,JZS130,LS130,136 SINGLE TYPE |
2 | ||
| 41317-30010 |
GS130,136,JZS130,LS130,136 DOUBLE TYPE |
2 | ||
| 41317-30010 |
GS130,136,JZS130,LS130,136,YS130 DOUBLE TYPE |
2 | ||
| 41316-35010 |
GS130,136,JZS130,LS130,136,YS130 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
GS130,136,JZS130,LS130,136,YS130 SINGLE TYPE |
2 | ||
| 41316-30010 |
GS130,136,JZS130,LS130,136 SINGLE TYPE |
2 | ||
| 41317-30010 |
GS130,136,JZS130,LS130,136 DOUBLE TYPE |
2 | ||
| 41317-30010 |
GS130,136,JZS130,LS130,136,YS130 DOUBLE TYPE |
2 | ||
| 41316-35010 |
GS130,136,JZS130,LS130,136,YS130 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41331-30030 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 41331-30030 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
GS13#,JZS130,LS13# |
2 | ||
| 41341-30020 |
GS13#,JZS130,LS13#,YS130 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
GS13#,JZS130,LS13# |
2 | ||
| 41341-30020 |
GS13#,JZS130,LS13#,YS130 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
GS13#,JZS130,LS13# |
1 | ||
| 41342-22020 |
GS13#,JZS130,LS13#,YS130 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
GS13#,JZS13#,LS13# |
1 | ||
| 90250-06058 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS13#,JZS130,LS13#,YS130 |
2 | ||
| 41351-30060 |
GS13#,JZS130,LS13# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS13#,JZS130,LS13#,YS130 |
2 | ||
| 41351-30060 |
GS13#,JZS130,LS13# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
GS13#,JZS130,LS13# 厚さ=1.3 |
2 | ||
| 41361-30040 |
GS13#,JZS130,LS13# 厚さ=1.0 |
2 | ||
| 41361-30060 |
GS13#,JZS130,LS13# 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS13#,JZS130,LS13#,YS130 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS13#,JZS130,LS13#,YS130 厚さ=1.1 |
2 | ||
| 41361-30050 |
GS13#,JZS130,LS13# 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS13#,JZS130,LS13#,YS130 厚さ=1.2 |
2 | ||
| 41361-30040 |
GS13#,JZS130,LS13#,YS130 厚さ=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
GS13#,JZS130,LS13# 厚さ=1.3 |
2 | ||
| 41361-30040 |
GS13#,JZS130,LS13# 厚さ=1.0 |
2 | ||
| 41361-30060 |
GS13#,JZS130,LS13# 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS13#,JZS130,LS13#,YS130 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS13#,JZS130,LS13#,YS130 厚さ=1.1 |
2 | ||
| 41361-30050 |
GS13#,JZS130,LS13# 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS13#,JZS130,LS13#,YS130 厚さ=1.2 |
2 | ||
| 41361-30040 |
GS13#,JZS130,LS13#,YS130 厚さ=1.0 |
2 | ||
| Common parts | ||||
| 91111-60814 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
