JZS130G-AWPQF (1991)
Toyota Crown
Production
Oct 1991
-
Apr 1999
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )1JZGE,2JZGE

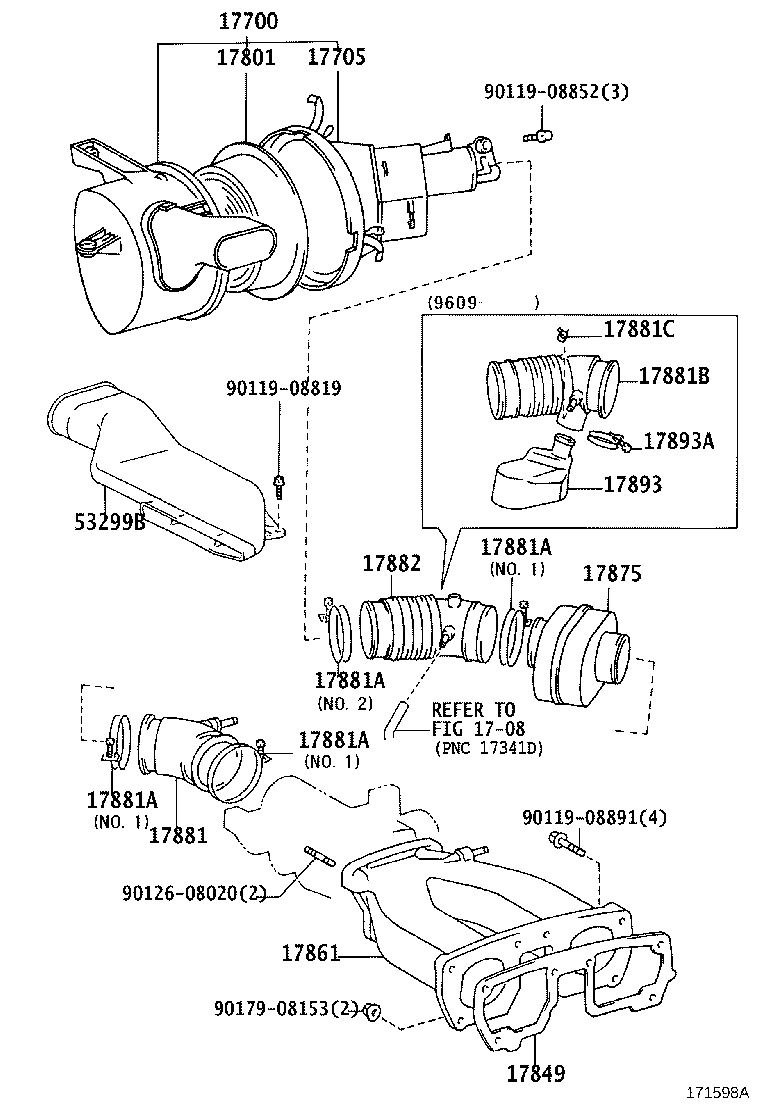

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-46120 |
1JZGE,2JZGE..JZS13# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-46090 |
1JZGE,2JZGE..JZS13# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-46050 |
1JZGE,2JZGE..JZS13# |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-46020 |
1JZGE..JZS130 |
1 | ||
| 17849-46010 |
1JZGE,2JZGE..JZS13# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-46102 |
1JZGE..JZS130 |
1 | ||
| 17860-46101 |
1JZGE..JZS130 |
1 | ||
| 17860-46100 |
1JZGE..JZS130 |
1 | ||
| 17860-46010 |
1JZGE..JZS130,131 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-46070 |
1JZGE..JZS130 |
1 | ||
| 17875-46010 |
1JZGE..JZS130,131 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-46060 |
1JZGE..JZS130,131 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGE..JZS130,131 NO.1 |
3 | ||
| 96111-10900 |
1JZGE,2JZGE..JZS13# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGE..JZS130,131 NO.1 |
3 | ||
| 96111-10900 |
1JZGE,2JZGE..JZS13# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGE..JZS130,131 NO.1 |
3 | ||
| 96111-10900 |
1JZGE,2JZGE..JZS13# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGE..JZS130,131 NO.1 |
3 | ||
| 96111-10900 |
1JZGE,2JZGE..JZS13# NO.2 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-46240 |
1JZGE..JZS130 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96132-51100 |
1JZGE..JZS130 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-46040 |
1JZGE..JZS130,131 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-46100 |
1JZGE..JZS130 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10430 |
1JZGE..JZS130 |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-30220 |
JZS13# |
1 | ||
| Common parts | ||||
| 90119-08819 | ||||
| 90119-08852 | ||||
| 90119-08891 | ||||
| 90126-08020 | ||||
| 90179-08153 | ||||
| Linked diagrams | ||||
| 1708 | ||||
