JZS130G-AWPJF (1991)
Toyota Crown
ILLUST NO. 1 OF 3(9110- )GS130,131,JZS13#,LS130,131..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30081 |
GS130,131,JZS13#,LS130,131..ATM..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30110 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS130,131,JZS13#,LS130,131..ATM |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS130,131,JZS13#,LS130,131..ATM |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30070 |
GS130,131,JZS13#,LS130,131..ATM..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 46209-30071 |
GS130,JZS130,LS130 |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS130,131,JZS13#,LS130,131..ATM |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS130,131,JZS13#,LS130,131..ATM |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30040 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30040 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30550 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-30080 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 46451-30080 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 46451-30080 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08126 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90463-12570 | ||||
| 90467-09074 | ||||
| 90468-08001 | ||||
| 91651-40816 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

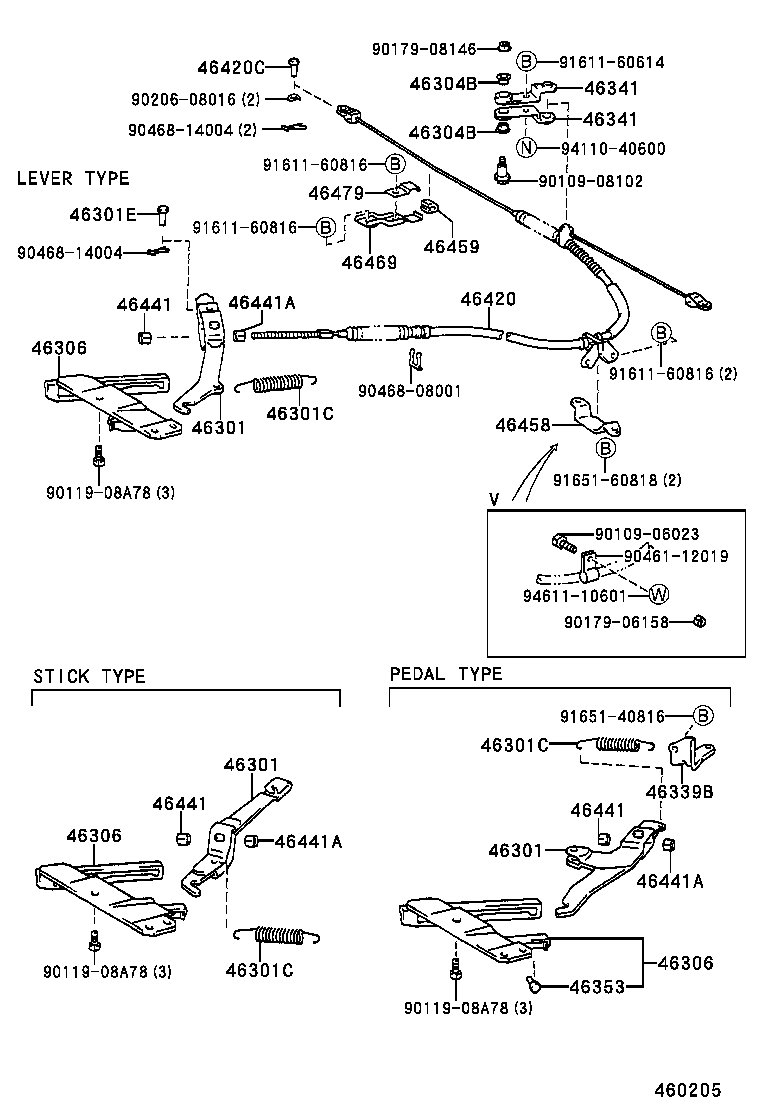

ILLUST NO. 2 OF 3(9110- )GS130,136,JZS130,LS130,136,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30210 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30210 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30210 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90905-07001 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90905-07001 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90905-07001 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90385-12029 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
2 | ||
| 90385-12029 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90385-12029 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
2 | ||
| 90385-12029 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30150 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30150 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30150 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46339B - HANGER, INTERMEDIATE LEVER RETURN SPRING | ||||
| 46339-30020 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-30050 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
2 | ||
| 46341-30050 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 46341-30050 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-30050 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
2 | ||
| 46341-30050 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 46341-30050 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 46353 - CUSHION, INTERMEDIATE LEVER | ||||
| 46353-30020 |
GS130,JZS130,LS130..ATM |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30450 |
GS130,JZS130,LS130..4FC,4HC,5F |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08059 |
GS130,136,JZS130,LS130,136 |
2 | ||
| 90240-08059 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
2 | ||
| 90240-08059 |
GS130,136,JZS130,LS130,136,YS130 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 46441-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-30050 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-30050 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-30050 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS131,136,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 46441-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
GS130,JZS130,LS130 |
1 | ||
| 46458-30042 |
GS130,JZS130,LS130,YS130 |
1 | ||
| 46458-30042 |
GS130..SED..4H;GS130..4FC,4HC,5F;JZS130,LS130,YS130 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 46459-30010 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 46459-30010 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 46469-31011 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
1 | ||
| 46469-31011 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 46479-30010 |
GS130..SED..4H;GS130..4FC,4HC,5F;GS136,JZS130,LS130,YS130 |
1 | ||
| 46479-30010 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90119-08A78 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91651-60818 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
