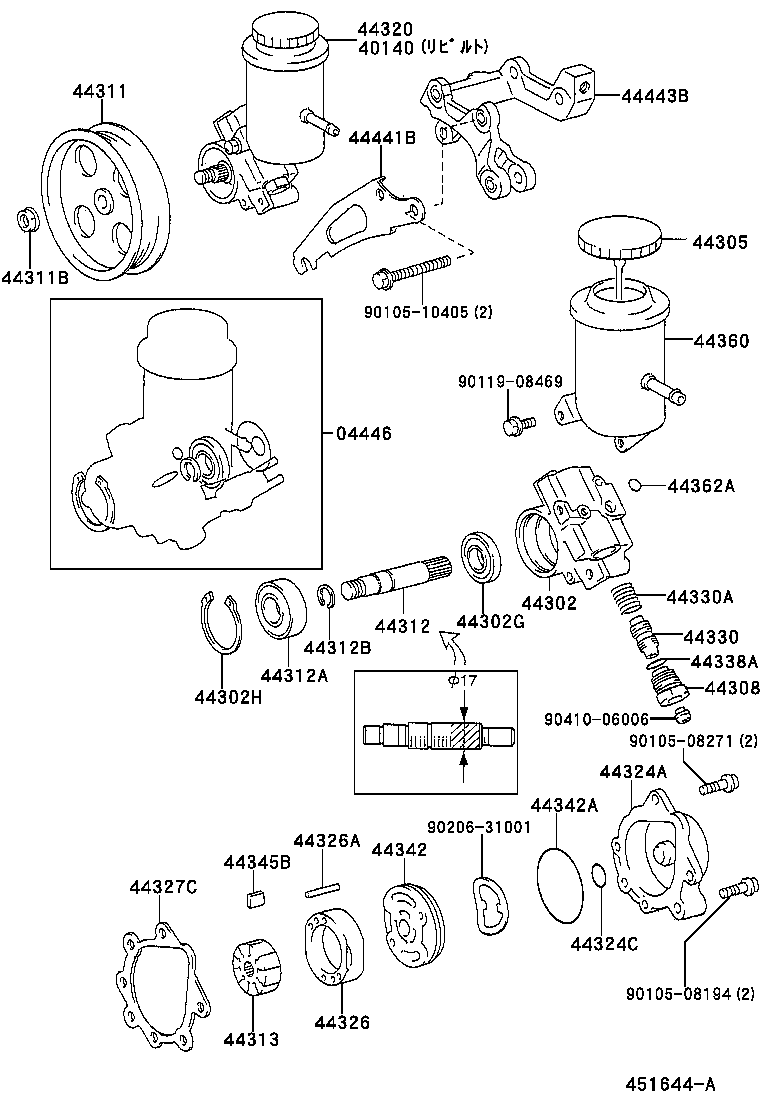

JZS130G-AWPJF (1991)
Toyota Crown
(9110- )JZS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30120 |
JZS13# |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-30450 |
JZS130,131 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30120 |
JZS13# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17007 |
JZS13# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
JZS13#,LS13# |
1 | ||
| 90521-44002 |
JZS13# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-50010 |
JZS13# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30140 |
JZS130,131 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22090 |
JZS13# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GS13#,JZS13#,YS130 |
1 | ||
| 90178-12003 |
GS13#,JZS130,LS130 |
1 | ||
| 90179-12022 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-26020 |
JZS13# 外径=17.004−17.009 |
1 | ||
| 44312-26010 |
JZS13# 外径=17.009−17.014 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17008 |
JZS13# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
JZS13#,LS13# |
1 | ||
| 90520-15001 |
JZS13# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26090 |
JZS13# ﾏｰｸ 3 |
1 | ||
| 44313-26100 |
JZS13# ﾏｰｸ 4 |
1 | ||
| 44313-26060 |
JZS13# ﾏｰｸ無し |
1 | ||
| 44313-26080 |
JZS13# ﾏｰｸ 2 |
1 | ||
| 44313-26070 |
JZS13# ﾏｰｸ 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30450 |
JZS130,131 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-30130 |
JZS13# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-18007 |
JZS13# |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32270 |
JZS130,131 ﾏｰｸ無し |
1 | ||
| 44325-32290 |
JZS130,131 ﾏｰｸ 2 |
1 | ||
| 44325-32310 |
JZS130,131 ﾏｰｸ 4 |
1 | ||
| 44325-32300 |
JZS130,131 ﾏｰｸ 3 |
1 | ||
| 44325-32280 |
JZS130,131 ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
JZS13# 長さ=23.3,外径=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
JZS13# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26121 |
JZS13# ﾏｰｸ F |
1 | ||
| 44330-26091 |
JZS13# ﾏｰｸ C |
1 | ||
| 44330-26101 |
JZS13# ﾏｰｸ D |
1 | ||
| 44330-26111 |
JZS13# ﾏｰｸ E |
1 | ||
| 44330-26081 |
JZS13# ﾏｰｸ B |
1 | ||
| 44330-26071 |
JZS13# ﾏｰｸ A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
JZS13# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
GS13#,JZS130 内径=19.2,外径=22.3 |
1 | ||
| 90301-19003 |
GS13#,JZS13#..HTWC,TWC 内径=19.5,外径=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32060 |
JZS13# |
1 | ||
| 44342-26020 |
JZS13# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
JZS13# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26040 |
JZS13# 長さ=14.994 |
10 | ||
| 44345-26030 |
JZS13# 長さ=14.996 |
10 | ||
| 44345-26050 |
JZS13# 長さ=14.992 |
10 | ||
| 44345-26020 |
JZS13# 長さ=14.998 |
10 | ||
| 44345-26010 |
JZS13# 長さ=15.000 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-30280 |
JZS13# |
1 | ||
| 44306-24060 |
JZS130,131 |
1 | ||
| 44306-30280 |
JZS13# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11016 |
JZS130 |
1 | ||
| 90301-11010 |
JZS13# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-30080 |
JZS13# |
1 | ||
| 44443B - BRACKET, VANE PUMP | ||||
| 44443-22130 |
JZS13# |
1 | ||
| Common parts | ||||
| 90105-08194 | ||||
| 90105-08271 | ||||
| 90105-10405 | ||||
| 90119-08469 | ||||
| 90206-31001 | ||||
| 90410-06006 | ||||
