JZS130G-AWPJF (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1JZGE..JZS130

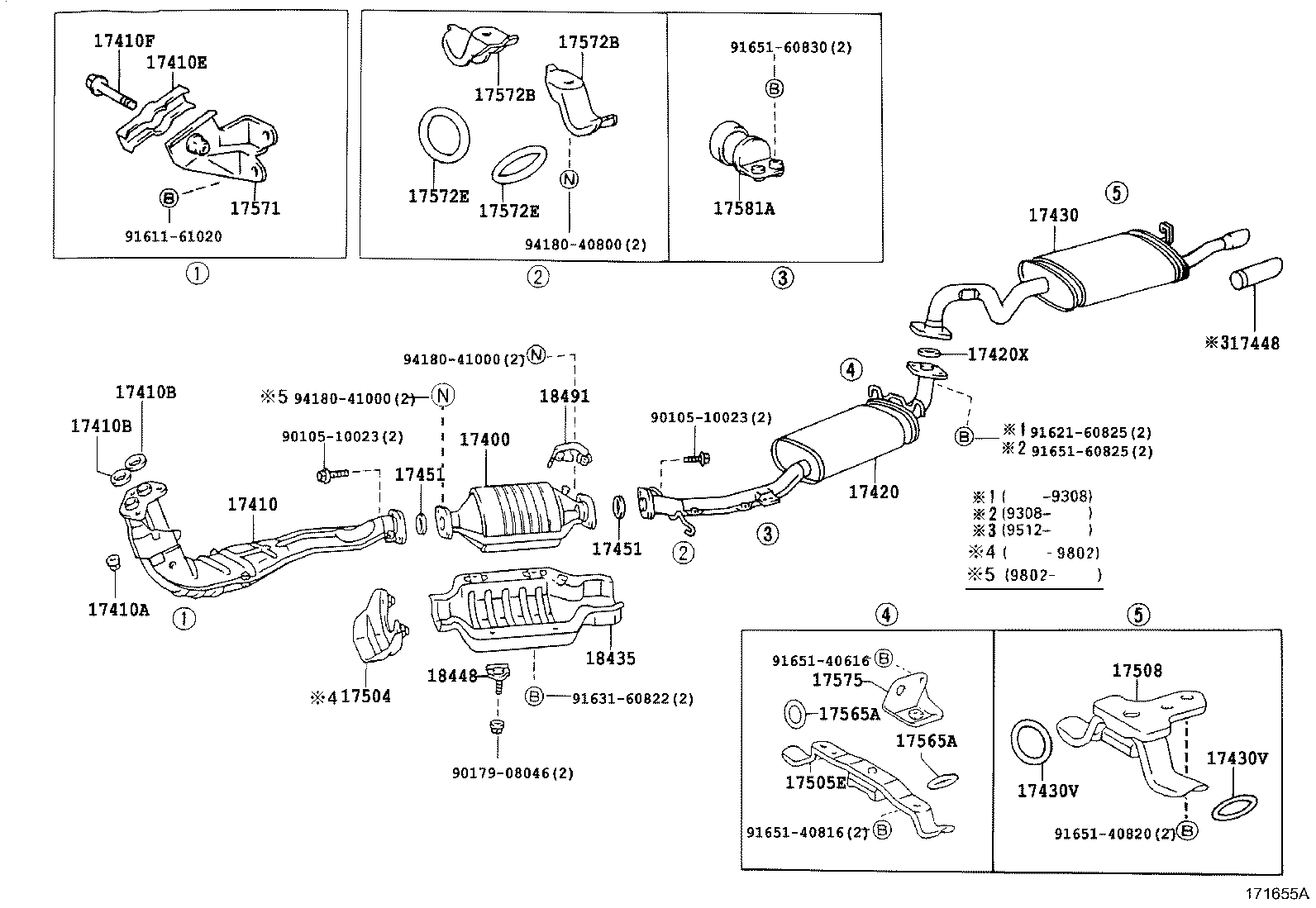

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17410F 17420 17420X 17430 17430V 17430V 17448 17451 17451 17504 17505E 17508 17565A 17565A 17571 17572B 17572B 17572E 17572E 17575 17581A 18435 18448 18491 9010510023 9010510023 9017908046 9161161020 9162160825 9163160822 9165140616 9165140816 9165140820 9165160825 9165160830 9418040800 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-42090

1JZGE..JZS130,131

 1
18450-46280

1JZGE..JZS130

 1
18450-46290

1JZGE..JZS130

 1
18450-46080

1JZGE..JZS130,131

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70200

1JZGE..JZS130,131

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1G#,1JZGE,2LT#,2L..GS13#,JZS130,131,LS13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

1G#,1JZGE..GS13#,JZS130,131

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

1G#,1JZGE..GS13#,JZS130,131

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1G#,1JZGE..GS13#,JZS130,131

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10018

1G#,1JZGE..GS13#,JZS130,131

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-70282

1JZGE..JZS130

 1
17420-70283

1JZGE..JZS130

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

1G#,1JZGE..GS130,131,JZS130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70560

1JZGE..JZS130

 1
17430-70561

1GFE,1JZGE..GS130,JZS130..ROY,SALEX

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GGP,1JZGE,2LT#,2L..GS130,JZS130,LS130,136

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GGP,1JZGE,2LT#,2L..GS130,JZS130,LS130,136

 2
17448 - BAFFLE, TAIL PIPE
17408-74040

1GFE,1JZGE,2LTE..GS130,JZS130,LS130..ROY,SALEX

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1JZGE,2JZGE..JZS13#

ﾘﾔ

 1
90917-06043

1JZGE..JZS130,131

ﾌﾛﾝﾄ

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1JZGE,2JZGE..JZS13#

ﾘﾔ

 1
90917-06043

1JZGE..JZS130,131

ﾌﾛﾝﾄ

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-42010

1JZGE..JZS130,131

 1
17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER
17505-45040

1GFE,1JZGE..GS130,JZS130

 1
17505-45040

1G#,1JZGE,3YPE..GS130,JZS130,YS130

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-54020

1GFE,1JZGE,2LT#..GS130,JZS130,LS130..WG

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-45010

1GGP,1JZGE,2LT#,2L,3YPE..GS130,JZS130,LS130,136,YS130

 2
17565-45010

1JZGE,2L#..JZS130,LS130,136

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-45010

1GGP,1JZGE,2LT#,2L,3YPE..GS130,JZS130,LS130,136,YS130

 2
17565-45010

1JZGE,2L#..JZS130,LS130,136

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-46080

1JZGE..JZS130,131

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1G#,1JZGE,2JZGE,2LT#..GS13#,JZS13#,LS130,131

 2
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-41020

1GFE,1JZGE..GS130,JZS130

 1
17575-41020

1G#,1JZGE,3YPE..GS130,JZS130,YS130

 1
17581A - DAMPER, EXHAUST PIPE
17581-70080

1JZGE..JZS130

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-42010

1G#,1JZGE..GS13#,JZS130,131

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1G#,1JZGE..GS13#,JZS130,131

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

1G#,1JZGE,2JZGE..GS13#,JZS13#

 1
Common parts
90105-10023
90179-08046
91611-61020
91621-60825
91631-60822
91651-40616
91651-40816
91651-40820
91651-60825
91651-60830
94180-40800
94180-41000
