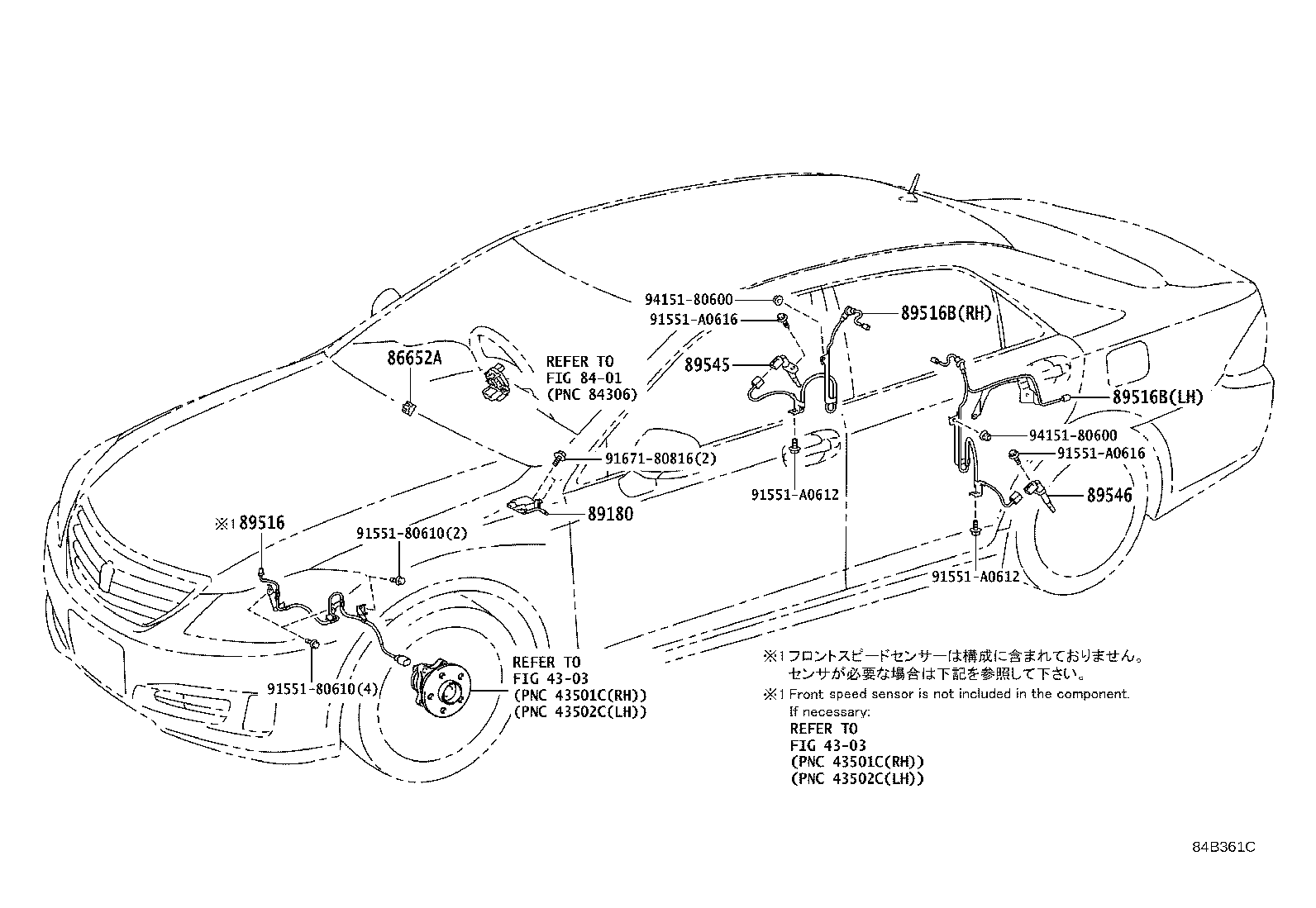

GWS204-AEXZH (2010)
Toyota Crown
(1002- )GRS200,202,204
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
GRS20#,GWS204..CBU |
1 | ||
| 86652-50010 |
GRS20#,GWS204 |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 89180-30090 |
GRS20#,GWS204 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30030 |
GRS200,202,204,GWS204..CBU 左側 |
1 | ||
| 89516-30020 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516-30030 |
GRS200,202,204,GWS204..CBU 左側 |
1 | ||
| 89516-30150 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516-30020 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-22040 |
GRS20#,GWS204 左側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204..CBU 右側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204 右側 |
1 | ||
| 89516-22040 |
GRS20#,GWS204..CBU 左側 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-22040 |
GRS20#,GWS204 左側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204..CBU 右側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204 右側 |
1 | ||
| 89516-22040 |
GRS20#,GWS204..CBU 左側 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS20#,GWS204 |
1 | ||
| 89545-30070 |
GRS20#,GWS204..CBU |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GRS20#,GWS204 |
1 | ||
| 89546-30070 |
GRS20#,GWS204..CBU |
1 | ||
| Common parts | ||||
| 91551-80610 | ||||
| 91551-A0612 | ||||
| 91551-A0616 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4303 | ||||
| 8401 | ||||

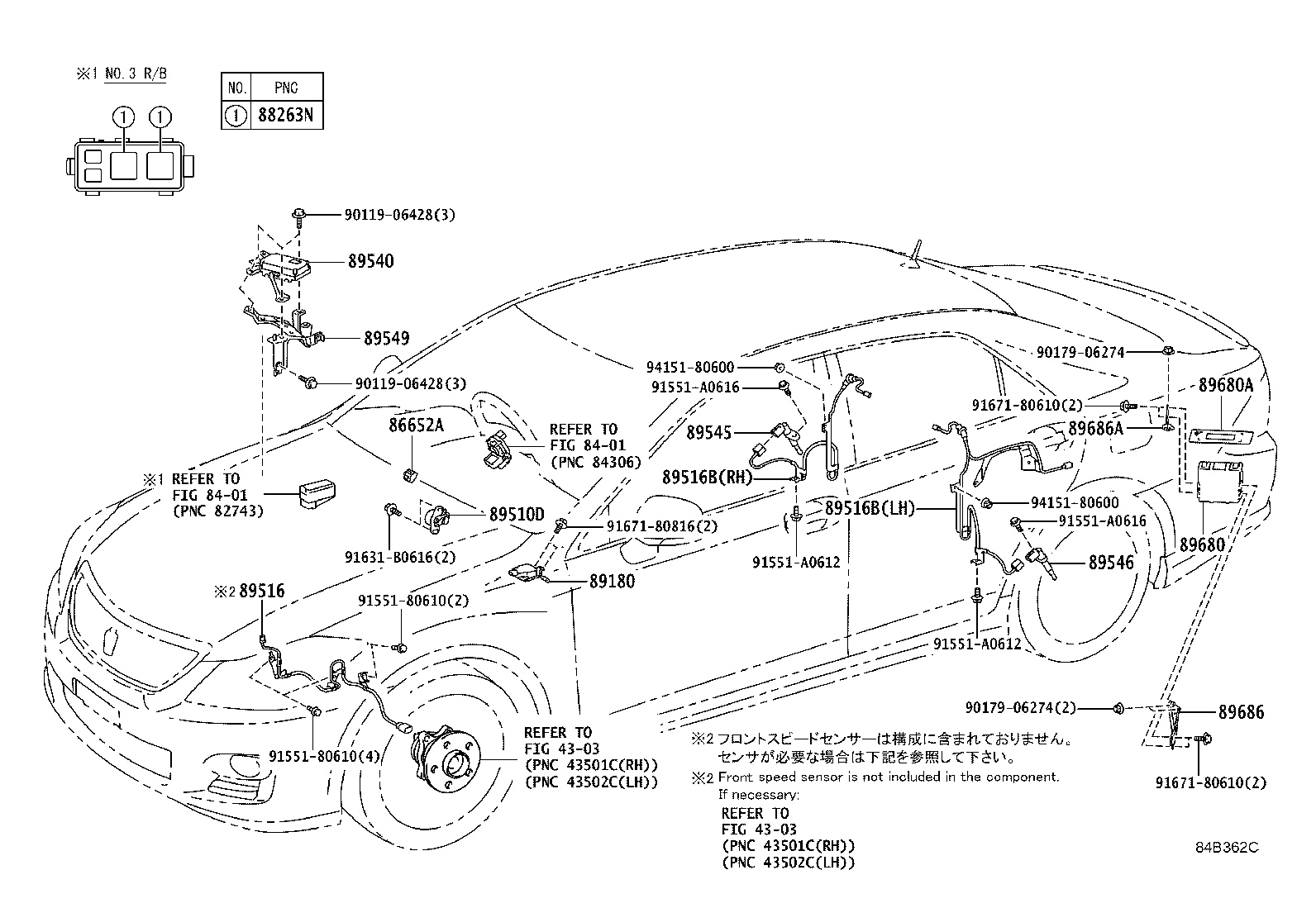

(1002- )GWS204
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
GRS20#,GWS204..CBU |
1 | ||
| 86652-50010 |
GRS20#,GWS204 |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-21010 |
GWS204 |
2 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 89180-30090 |
GRS20#,GWS204 |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-28010 |
GWS204 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30030 |
GRS200,202,204,GWS204..CBU 左側 |
1 | ||
| 89516-30020 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516-30030 |
GRS200,202,204,GWS204..CBU 左側 |
1 | ||
| 89516-30150 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516-30020 |
GRS200,202,204,GWS204..CBU 右側 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-22040 |
GRS20#,GWS204 左側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204..CBU 右側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204 右側 |
1 | ||
| 89516-22040 |
GRS20#,GWS204..CBU 左側 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-22040 |
GRS20#,GWS204 左側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204..CBU 右側 |
1 | ||
| 89516-22020 |
GRS20#,GWS204 右側 |
1 | ||
| 89516-22040 |
GRS20#,GWS204..CBU 左側 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-30B70 |
GWS204 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS20#,GWS204 |
1 | ||
| 89545-30070 |
GRS20#,GWS204..CBU |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GRS20#,GWS204 |
1 | ||
| 89546-30070 |
GRS20#,GWS204..CBU |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88269-30190 |
GWS204 |
1 | ||
| 89680 - SUPPLY ASSY, BRAKE CONTROL POWER | ||||
| 89680-33010 |
GWS204 |
1 | ||
| 89680A - COVER, BRAKE CONTROL POWER SUPPLY | ||||
| F1971-30010 |
GWS204 |
1 | ||
| 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-30020 |
GWS204 |
1 | ||
| 89686A - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-30010 |
GWS204 |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90179-06274 | ||||
| 91551-80610 | ||||
| 91551-A0612 | ||||
| 91551-A0616 | ||||
| 91631-B0616 | ||||
| 91671-80610 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4303 | ||||
| 8401 | ||||
