GWS204-AEXZH (2010)

Toyota Crown

Production Feb 2010 - Dec 2012
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

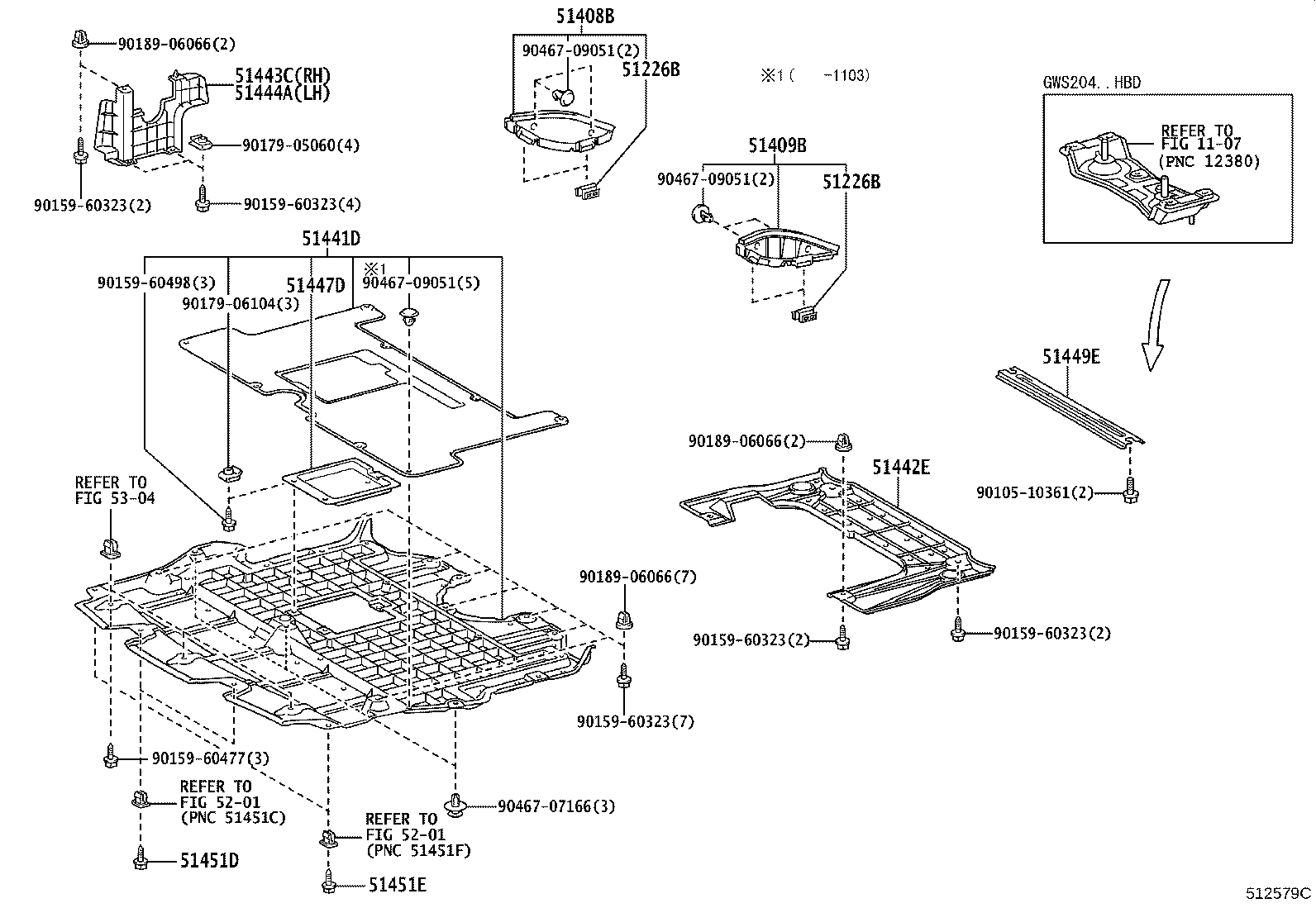

ILLUST NO. 3 OF 3(1106- )GRS200,202,204,GWS204

Click highlighted areas on diagram

ｱﾝﾀﾞ ｶﾊﾞｰ

diagram 1107 51226B 51226B 51408B 51409B 51441D 51442E 51443C 51444A 51447D 51449E 51451D 51451E 5201 5201 5304 9010510361 9015960323 9015960323 9015960323 9015960323 9015960323 9015960477 9015960498 9017905060 9017906104 9018906066 9018906066 9018906066 9046707166 9046709051 9046709051 9046709051
Part # Description Qty Price
51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2
51226-30020

GRS200,202,204,GWS204..CBU

 4
51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2
51226-30020

GRS200,202,204,GWS204..CBU

 4
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-30050

GRS200,202,204,GWS204..CBU

 1
51408-30060

GRS200,202,204,GWS204..CBU

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-30060

GRS200,202,204,GWS204..CBU

 1
51409-30050

GRS200,202,204,GWS204..CBU

 1
51441D - COVER, ENGINE UNDER
51410-30140

GRS200,202,204,GWS204..CBU

 1
51410-30141

GRS200,202,204,GWS204..CBU

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-30151

GRS200,202,204..CBU

 1
51442-30150

GRS200,202,204..CBU

 1
51442-30171

GWS204

 1
51442-30181

GRS200,202,204,GWS204..CBU

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-30141

GRS200,202,204,GWS204..CBU

 1
51443-30140

GRS200,202,204,GWS204..CBU

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-30170

GRS200,202,204,GWS204..CBU

 1
51444-30171

GRS200,202,204,GWS204..CBU

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-30080

GRS200,202,204,GWS204..CBU

 1
51447-30080

GRS200,202,204,GWS204..CBU

 1
51449E - BRACKET, ENGINE UNDER COVER AIR GUIDE
51449-53030

GRS200,202,204..CBU

 1
51449-30100

GRS200,202,204..CBU

 1
51449-30090

GRS200,202,204

 1
51451D - SCREW, NO.1
90159-60477

GRS20#,GWS204..CBU

 2
90159-60477

GRS20#,GWS204..CBU

 2
51451E - SCREW, NO.2
90159-60477

GRS20#,GWS204..CBU

 2
90159-60477

GRS20#,GWS204..CBU

 2
Common parts
90105-10361
90159-60323
90159-60477
90159-60498
90179-05060
90179-06104
90189-06066
90467-07166
90467-09051
