GWS204-AEXZH (2008)

Toyota Crown

Production May 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )GWS204

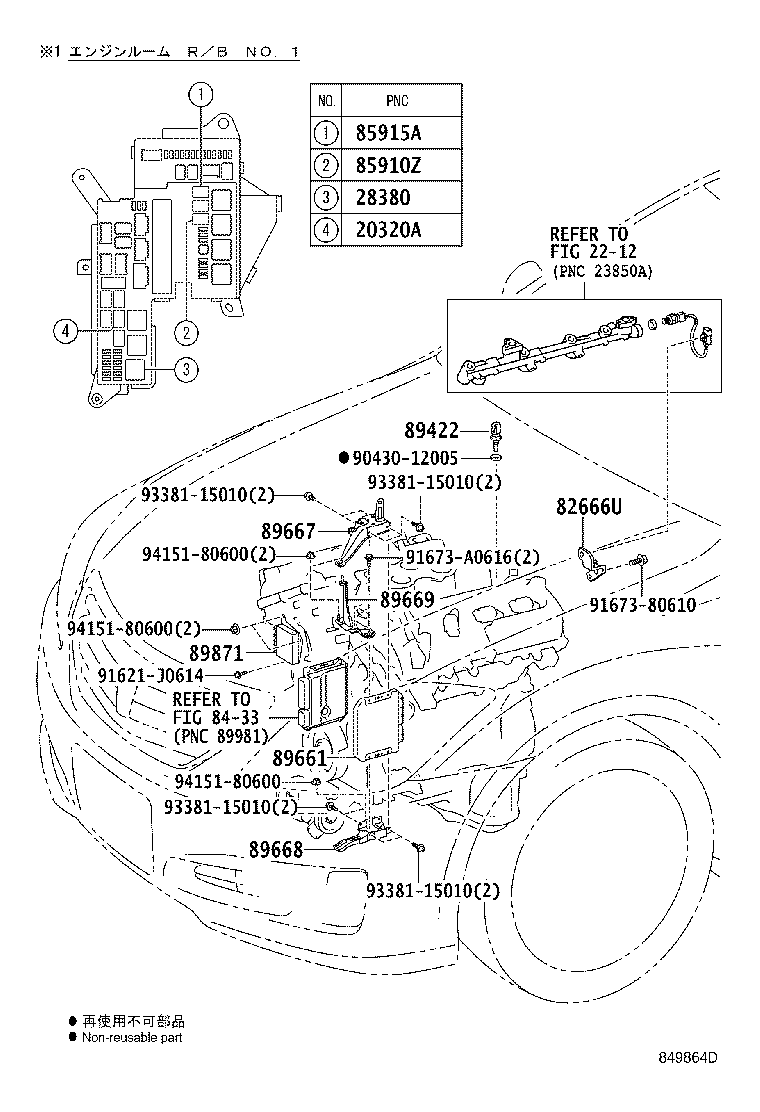

Click highlighted areas on diagram

diagram 20320A 2212 28380 82666U 8433 85910Z 85915A 89422 89661 89667 89668 89669 89871 9043012005 91621J0614 9167380610 91673A0616 9338115010 9338115010 9338115010 9338115010 9415180600 9415180600 9415180600
Part # Description Qty Price
20320A - RELAY, FUEL RELIEF VALVE
90987-02027

2GRFSE..GWS204

 1
28380 - RELAY ASSY, FUEL PUMP
90987-03003

2GRFSE..GWS204

 1
82666U - HOLDER, CONNECTOR
82666-30780

GRS20#,GWS204

 1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

GRS20#,GWS204

 1
85915A - RELAY, MAIN
90987-02027

GRS20#,GWS204

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GRS20#,GWS204

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30G40

GWS204

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30290

GWS204

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30241

GWS204

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30161

GWS204

 1
89871 - DRIVER, INJECTOR
89871-53010

GRS20#,GWS204

 1
Common parts
90430-12005
91621-J0614
91673-80610
91673-A0616
93381-15010
94151-80600
Linked diagrams
2212
8433
