GWS204-AEXZH (2008)

Toyota Crown

Production May 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )2GRFSE..GWS204

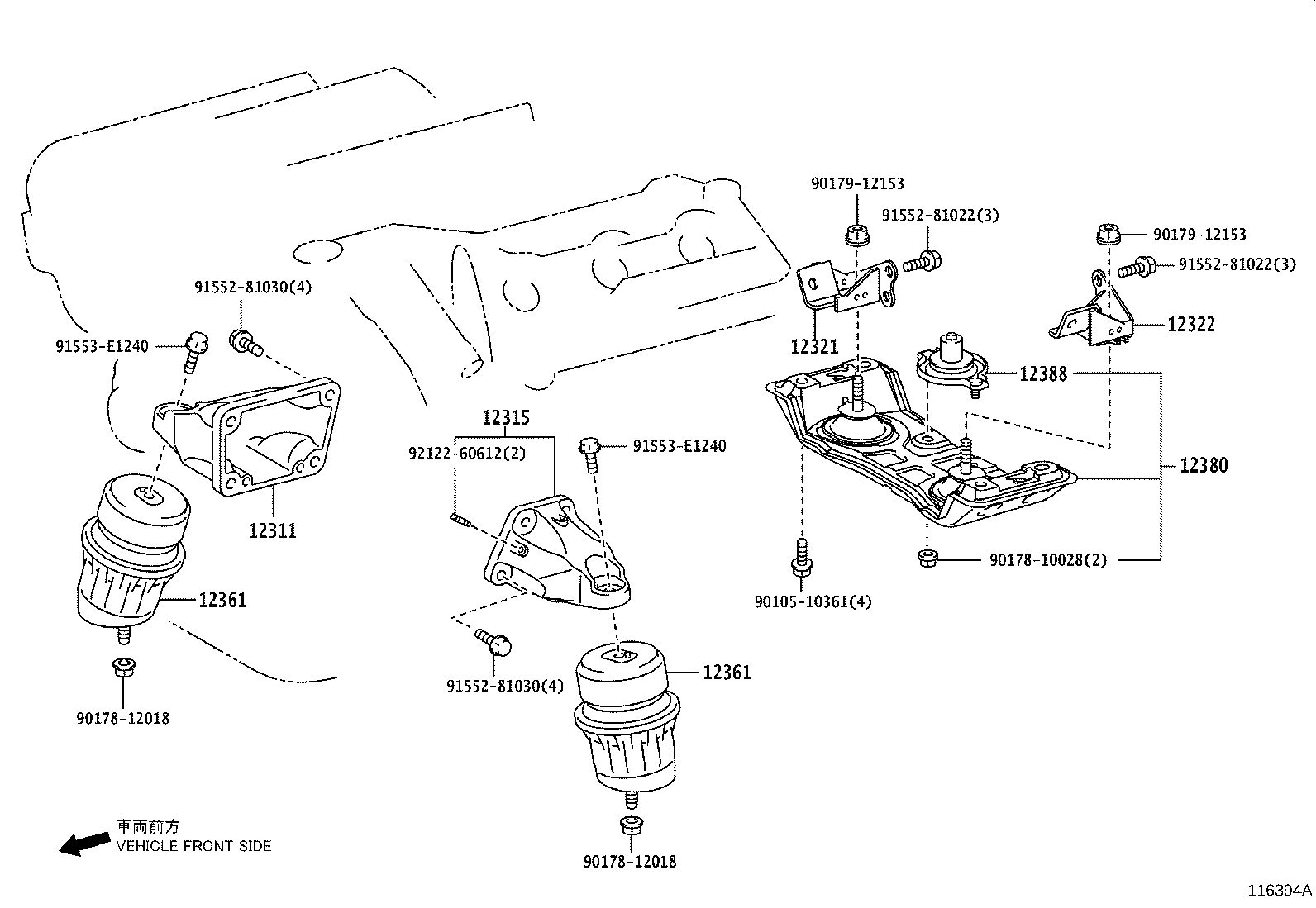

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12380 12388 9010510361 9017810028 9017812018 9017812018 9017912153 9017912153 9155281022 9155281022 9155281030 9155281030 91553E1240 91553E1240 9212260612
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31040

2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31010

2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31110

2GRFSE..GWS204

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12325-31030

2GRFSE..GWS204

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

2GRFSE..GWS204

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

2GRFSE..GWS204

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-31041

2GRFSE..GWS204

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-31010

2GRFSE..GWS204

 1
Common parts
90105-10361
90178-10028
90178-12018
90179-12153
91552-81022
91552-81030
91553-E1240
92122-60612
