GS136V-AXPFK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS136,LS136

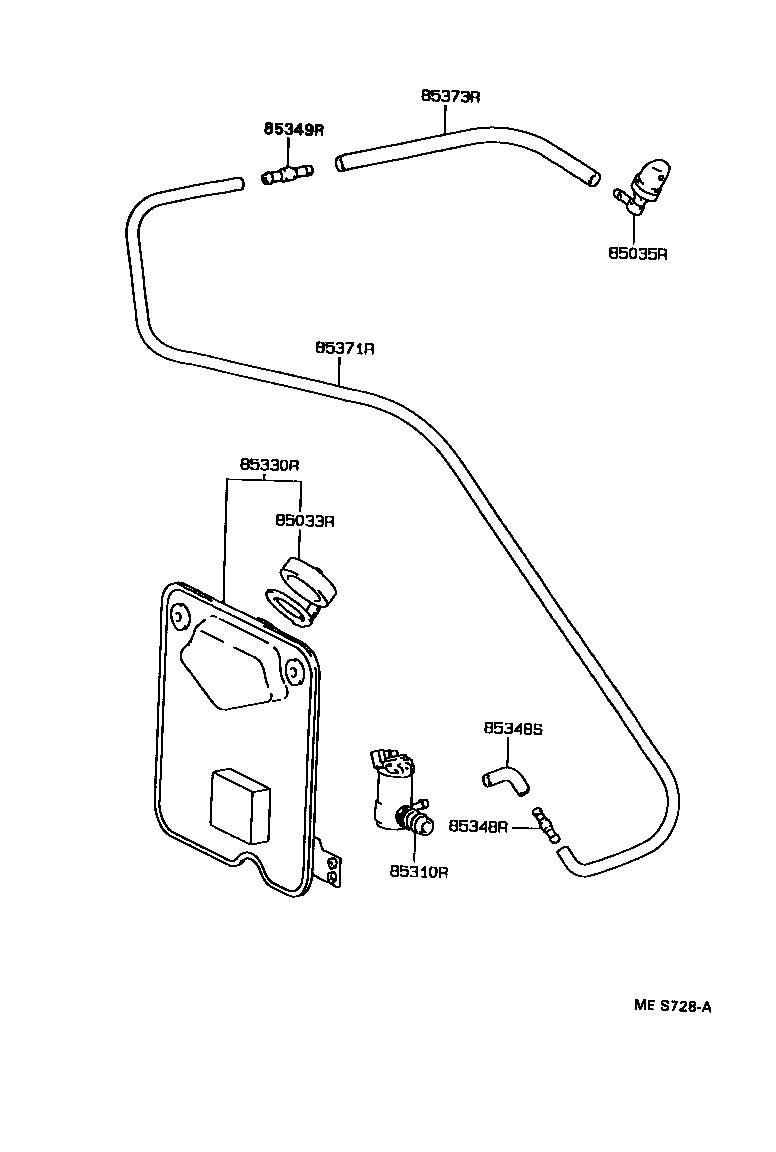

Click highlighted areas on diagram

diagram 85033R 85035R 85310R 85330R 85348R 85348S 85349R 85371R 85373R
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-20070

GS136,LS136

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-91702

GS130,136,JZS130,LS130,136..V,WG

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

GS136,LS136

 1
85330R - JAR ASSY, REAR WASHER
85330-20251

GS136,LS136

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

GS136,LS136

 2
85349-89122

GS136,LS136

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

GS130,136,JZS130,LS130,136..V,WG

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85031-12250

GS136,LS136

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85343-91701

GS136,LS136

長さ=1240

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

GS130,136,JZS130,LS130,136..V,WG

*H,L=350

 1
