GS136V-AXPFK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)

Click highlighted areas on diagram

diagram 81570 81570 81977 9011906005 9011906279 9016850023
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-91701J0

GS130,136,JZS130,LS130,136..V,WG

LI.BLUE,TRIM8#

 1
81570-31010J0

GS13#..DLX,SDX

LT.BLUE,TRIM8#

 1
81570 - LAMP ASSY, CENTER STOP
81570-91701J0

GS130,136,JZS130,LS130,136..V,WG

LI.BLUE,TRIM8#

 1
81570-31010J0

GS13#..DLX,SDX

LT.BLUE,TRIM8#

 1
81977 - COVER, CENTER STOP LAMP
81977-31010J0

GS13#..DLX,SDX

LT.BLUE,TRIM8#

 1
Common parts
90119-06005
90119-06279
90168-50023

(9512- )

Click highlighted areas on diagram

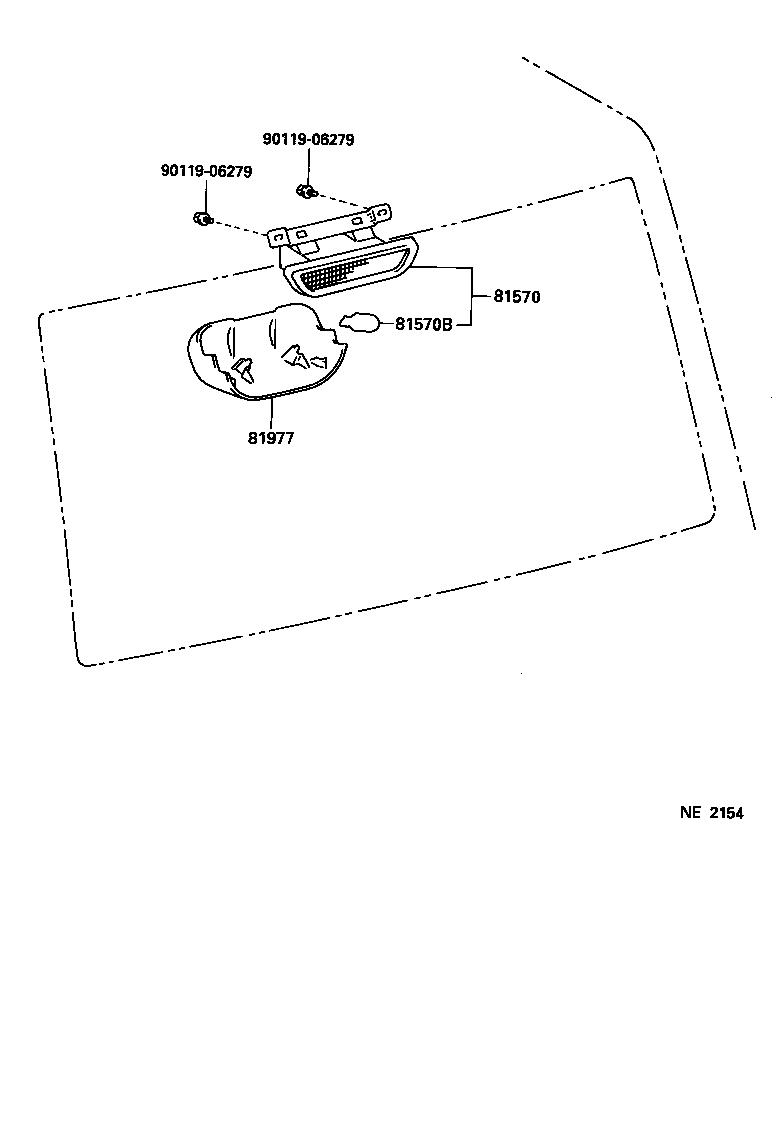

diagram 81570 81570B 81977 9011906279 9011906279
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-91701J0

GS130,136,JZS130,LS130,136..V,WG

LI.BLUE,TRIM8#

 1
81570-31010J0

GS13#..DLX,SDX

LT.BLUE,TRIM8#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

GS13#,JZS130,LS130

12V 16W

 1
90981-11039

GS13#,JZS130,LS130

12V 16W

 1
81977 - COVER, CENTER STOP LAMP
81977-31010J0

GS13#..DLX,SDX

LT.BLUE,TRIM8#

 1
Common parts
90119-06279
