GS136V-AXPFK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS136,LS136

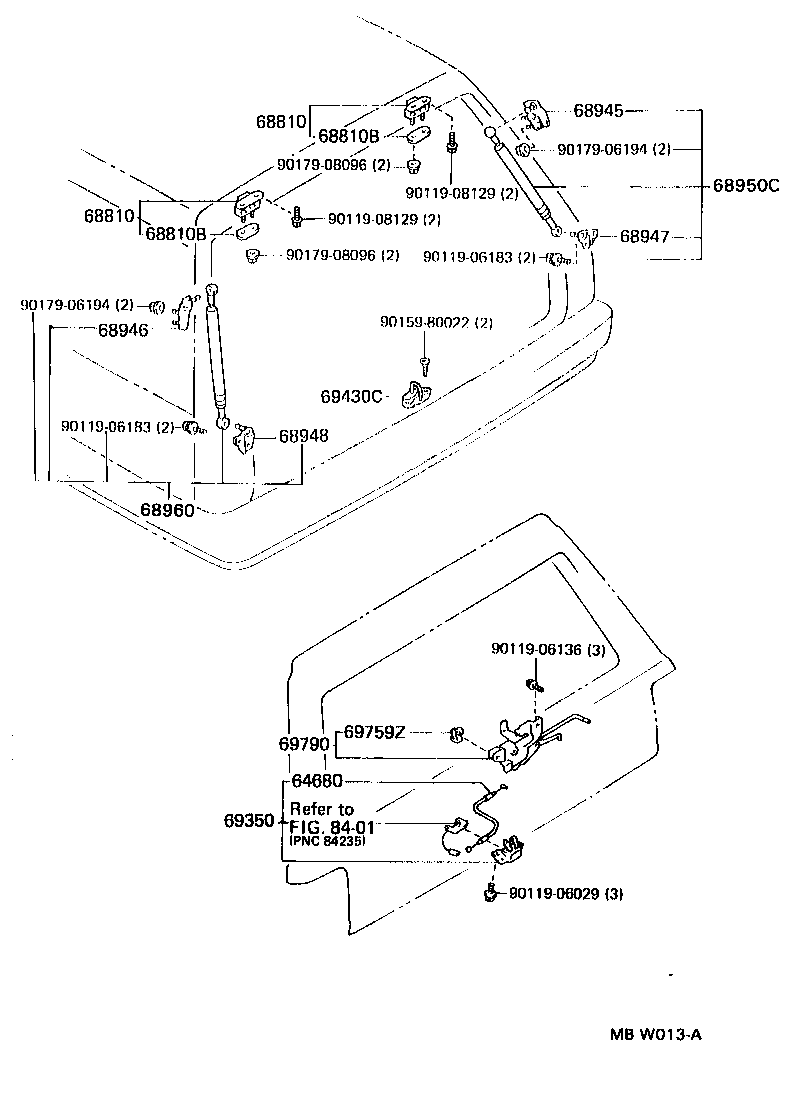

Click highlighted areas on diagram

diagram 64680 68810 68810 68810B 68810B 68945 68946 68947 68948 68950C 68960 69350 69430C 69759Z 69790 8401 9011906029 9011906136 9011906183 9011906183 9011908129 9011908129 9015980022 9017906194 9017906194 9017908096 9017908096
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-31010

GS130,136,JZS130,LS130,136..V,WG

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-91706

GS130,136,JZS130,LS130,136..V,WG

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-91706

GS130,136,JZS130,LS130,136..V,WG

 2
68810B - PAD, BACK DOOR HINGE
68838-15011

GS130,136,JZS130,LS130,136..V,WG

 2
68810B - PAD, BACK DOOR HINGE
68838-15011

GS130,136,JZS130,LS130,136..V,WG

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-31010

GS130,136,JZS130,LS130,136..V,WG

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-31010

GS130,136,JZS130,LS130,136..V,WG

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-31010

GS130,136,JZS130,LS130,136..V,WG

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-31010

GS130,136,JZS130,LS130,136..V,WG

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-39245

GS136..SDX

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-39105

GS136..SDX

 1
69350 - LOCK ASSY, BACK DOOR
69350-31010

GS130,136,JZS130,LS130,136..V,WG

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-31010

GS130,136,JZS130,LS130,136..V,WG

 1
69759Z - SNAP, DOOR LOCK CONTROL LINK
69759-24060

GS136,LS136

 1
69759-24060

GS13#,JZS130,LS130..DLX,SALEX,SDX

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-31010

GS136,LS136

 1
Common parts
90119-06029
90119-06136
90119-06183
90119-08129
90159-80022
90179-06194
90179-08096
Linked diagrams
8401
