GS136V-AXPFK (1991)
Toyota Crown
Production
Oct 1991
-
Apr 1999
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )GS13#,LS136,YS130..ATM

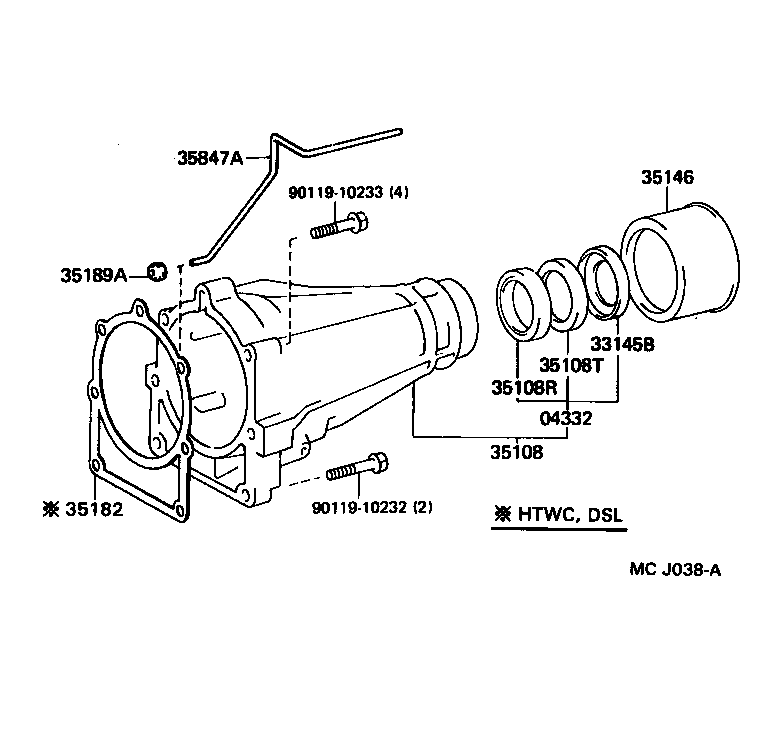

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30030 |
GS13#,LS136..4FC |
1 | ||
| 04332-30030 |
GS13#,LS136,YS130..ATM |
1 | ||
| 33145B - RETAINER, EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
GS13#,LS136..4FC |
1 | ||
| 33145-30010 |
GS13#,LS136,YS130..ATM |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-35020 |
GS13#,LS136..ATM..(DSL,HTWC) |
1 | ||
| 35108-35040 |
GS13#..ATM..HTWC |
1 | ||
| 35108-35040 |
GS136..SDX |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-38030 |
GS13#,LS136,YS130..ATM |
1 | ||
| 90311-38030 |
GS13#,LS136..4FC |
1 | ||
| 90311-38032 |
GS13#,LS136..ATM..(DSL,HTWC) |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
GS13#,LS136..4FC |
1 | ||
| 90303-38010 |
GS13#,LS136,YS130..ATM |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30020 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 33146-30010 |
GS13#,JZS130,131,LS13#,YS130..ATM |
1 | ||
| 33146-30010 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-28010 |
GS13#,JZS13#,LS13#..ATM..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
GS13#,JZS13#,LS13#..ATM |
1 | ||
| 35189-30010 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 35847-30020 |
GS13#,JZS13#,LS13#..ATM |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
