GS136V-AXMFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS136,LS136

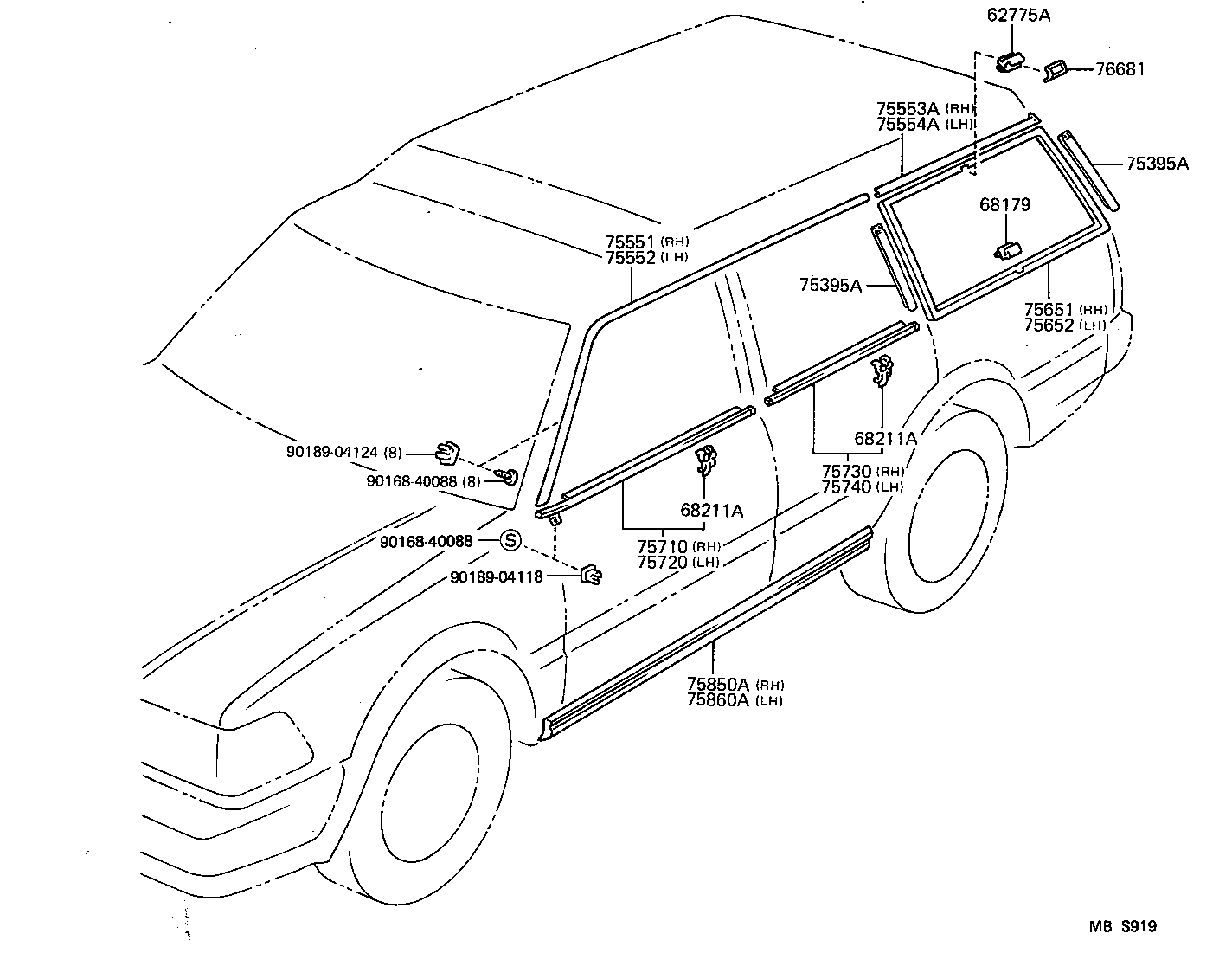

Click highlighted areas on diagram

diagram 62775A 68179 68211A 68211A 75395A 75395A 75551 75552 75553A 75554A 75651 75652 75710 75720 75730 75740 75850A 75860A 76681 9016840088 9016840088 9018904118 9018904124
Part # Description Qty Price
62775A - CLIP, QUARTER WINDOW
62775-91702

GS136,LS136

 2
68179 - CLIP, QUARTER WINDOW NO.2 GLASS MOULDING
68179-91701

GS136,LS136

 2
68211A - CLIP, DOOR BELT MOULDING
68211-30130

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

ﾌﾛﾝﾄ

 12
68211-30130

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

ﾘﾔ

 16
68211A - CLIP, DOOR BELT MOULDING
68211-30130

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

ﾌﾛﾝﾄ

 12
68211-30130

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

ﾘﾔ

 16
75395A - CLIP, OUTSIDE MOULDING, NO.1
75395-91704

GS136,LS136

 4
75395A - CLIP, OUTSIDE MOULDING, NO.1
75395-91704

GS136,LS136

 4
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-91706

GS130,136,JZS130,LS130,136..V,WG

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-91706

GS130,136,JZS130,LS130,136..V,WG

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-91704

GS136,LS136

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-91704

GS136,LS136

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-91703

GS136,LS136

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-91703

GS136,LS136

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-30210

GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-30210

GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-30090

GS13#,LS13#,MS13#,YS130..SED,V,WG

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-30140

GS13#,LS13#,MS13#,YS130..SED,V,WG

 1
75850A - MOULDING ASSY, BODY ROCKER PANEL, RH
75850-30090

GS136..SDX;GS130,LS130,MS130,YS130..DLX

 1
75860A - MOULDING ASSY, BODY ROCKER PANEL, LH
75860-30080

GS136..SDX;GS130,LS130,MS130,YS130..DLX

 1
76681 - COVER, OUTSIDE MOULDING END, NO.1
76681-91701

GS136,LS136

 2
Common parts
90168-40088
90189-04118
90189-04124
