GS136V-AXMFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )1GE,1GFE,1GG#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8709-8908)1GE

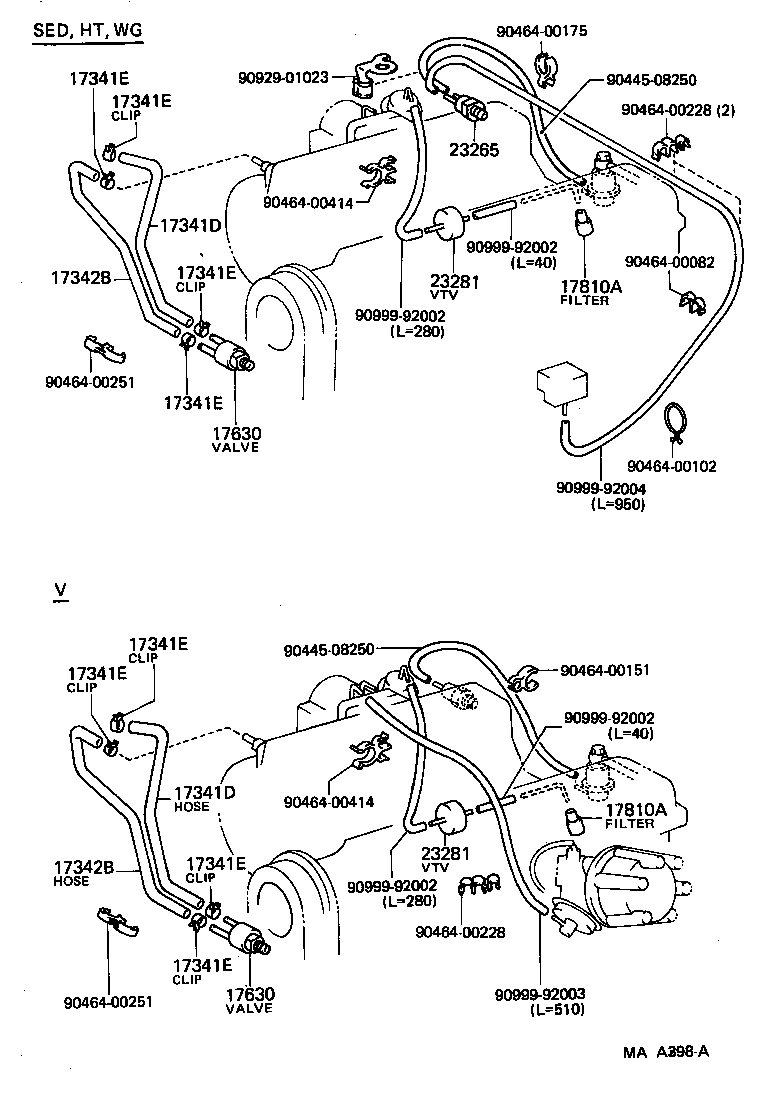

Click highlighted areas on diagram

diagram 17341D 17341D 17341E 17341E 17341E 17341E 17341E 17341E 17341E 17341E 17342B 17342B 17630 17630 17810A 17810A 23265 23281 23281 9044508250 9044508250 9046400082 9046400102 9046400151 9046400175 9046400228 9046400228 9046400251 9046400251 9046400414 9046400414 9092901023 9099992002 9099992002 9099992002 9099992002 9099992003 9099992004
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70100

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70100

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

1GE..GS136;1GE,1GGE..GS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-70090

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-70090

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70010

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70010

1GE..GS136;1GE..GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL

 1
17810A - FILTER ASSY, AIR
90925-06006

1GE..GS13#

 1
17810A - FILTER ASSY, AIR
90925-06006

1GE..GS13#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01021

1GE..GS13#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01021

1GE..GS13#

 1
Common parts
90445-08250
90464-00082
90464-00102
90464-00151
90464-00175
90464-00228
90464-00251
90464-00414
90929-01023
90999-92002
90999-92003
90999-92004
