GS136V-AXMDK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

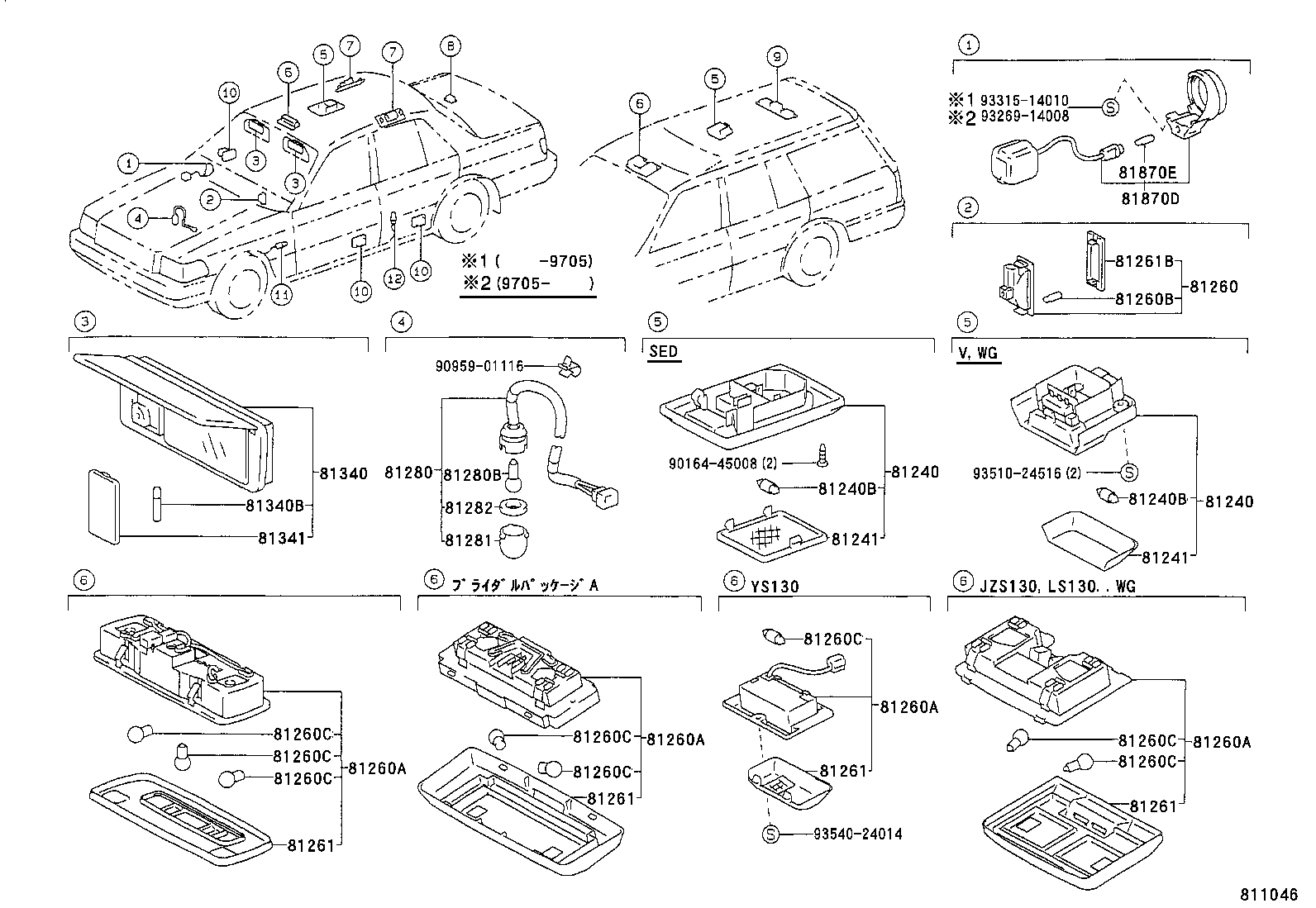

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81241 81241 81260 81260A 81260A 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81260C 81260C 81260C 81260C 81261 81261 81261 81261 81261B 81280 81280B 81281 81282 81340 81340B 81341 81870D 81870E 9016445008 9095901116 9326914008 9331514010 9351024516 9354024014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-30070J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

LI.BLUE,TRIM8#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-30070J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

LI.BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS130,YS130..DLX,DLXA,STD;GS130,136,JZS130,LS130,136..V,WG

12V 10W

 1
99132-12100

GS130..DLX,STD;GS130,136,JZS130,LS130,136..V,WG

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS130,YS130..DLX,DLXA,STD;GS130,136,JZS130,LS130,136..V,WG

12V 10W

 1
99132-12100

GS130..DLX,STD;GS130,136,JZS130,LS130,136..V,WG

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

GS130,136,LS136..V,WG

 1
81241-30070

GS13#,JZS130,LS130..DLX,SALEX,SDX

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

GS130,136,LS136..V,WG

 1
81241-30070

GS13#,JZS130,LS130..DLX,SALEX,SDX

 1
Common parts
90164-45008
90959-01116
93269-14008
93315-14010
93510-24516
93540-24014

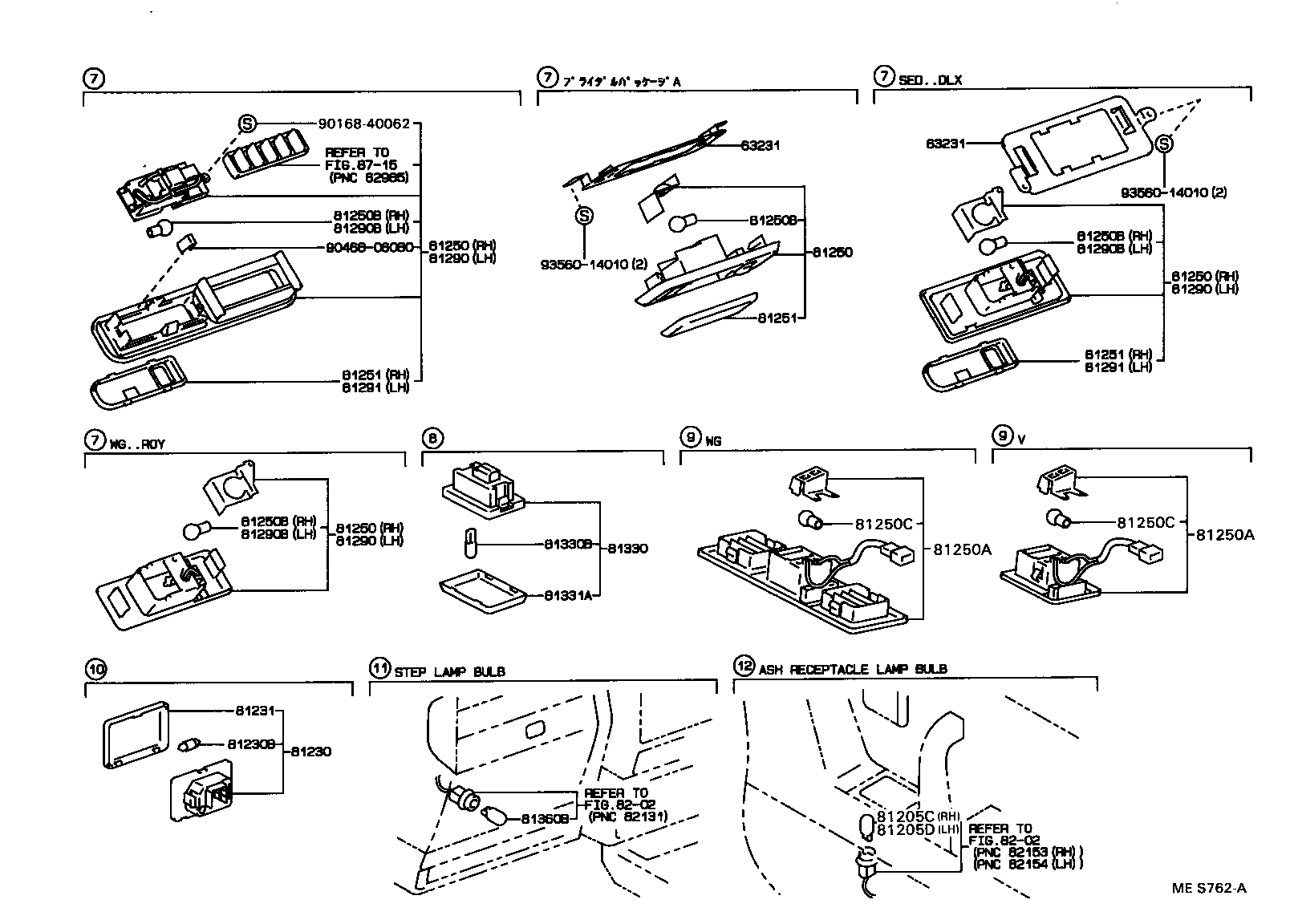

ILLUST NO. 2 OF 2(9110- )

Click highlighted areas on diagram

diagram 63231 63231 81205C 81205D 81230 81230B 81231 81250 81250 81250 81250 81250A 81250A 81250B 81250B 81250B 81250B 81250C 81250C 81251 81251 81251 81290 81290 81290 81290B 81290B 81290B 81291 81291 81330 81330B 81331A 81360B 8202 8202 8715 9016840062 9046806080 9356014010 9356014010
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30120

GS136;GS130,LS136..DLX,STD

 2
81230-30120

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 2
81230B - BULB(FOR COURTESY LAMP)
90981-14001

GS136;GS130,LS136..DLX,STD

12V 3W

 2
90981-14001

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 3W

 2
81231 - LENS, COURTESY LAMP
81231-30120

GS136;GS130,LS136..DLX,STD

 2
81231-30120

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 2
81250A - LAMP ASSY, SPOT
81250-91703J0

GS136,LS136

LI.BLUE,TRIM8#

 1
81250A - LAMP ASSY, SPOT
81250-91703J0

GS136,LS136

LI.BLUE,TRIM8#

 1
81250C - BULB, SPOT LAMP
90981-12014

GS130,136,JZS130,LS130,136..V,WG

 1
81250C - BULB, SPOT LAMP
90981-12014

GS130,136,JZS130,LS130,136..V,WG

 1
Common parts
90168-40062
90468-06080
93560-14010
Linked diagrams
8202
8715
