GS136V-AXMDK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

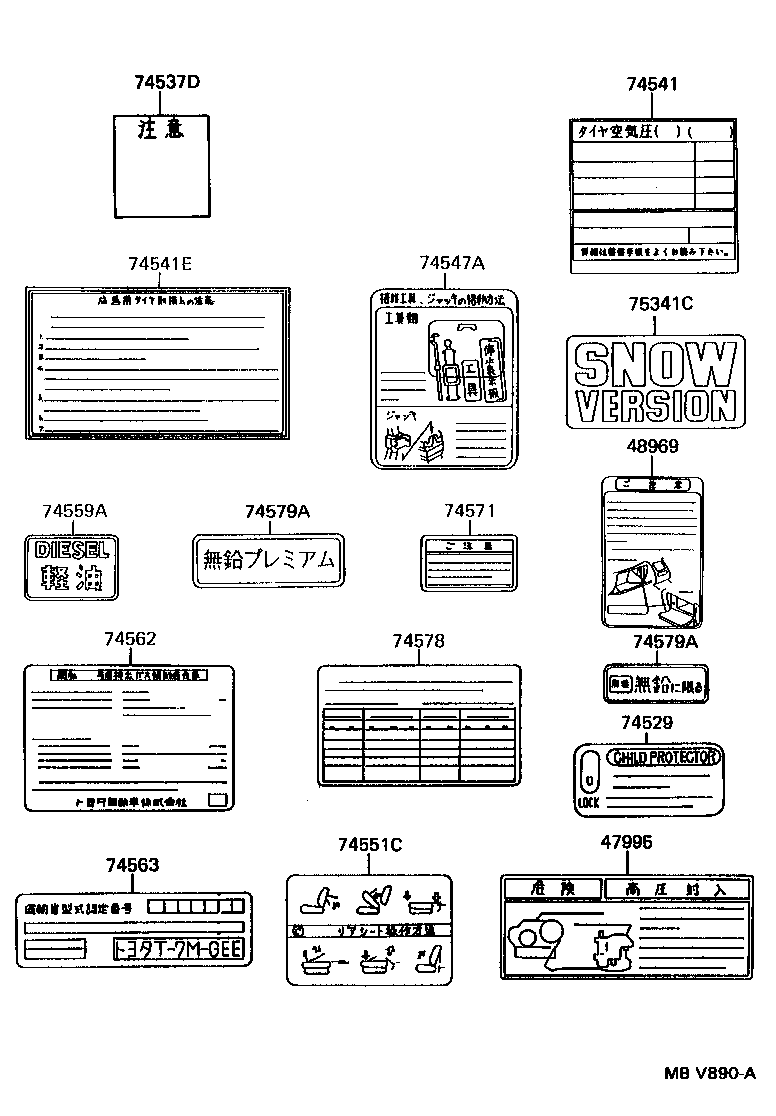

Click highlighted areas on diagram

diagram 47995 48969 74529 74537D 74541 74541E 74547A 74551C 74559A 74562 74563 74571 74578 74579A 74579A 75341C
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC

ﾘﾔﾄﾞｱ ﾛﾂｸ

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-30250

GS136,LS136

 1
42661-30251

GS136

 1
74547A - PLATE, JACK CARRIER CAUTION
74547-31010

GS136,LS136

 1
74551C - PLATE, REAR SEAT PROTECTOR CAUTION
74551-91601

GS136,LS136..4FC,5F

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-30590

GS136

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-30280

GS136

 1
74563-30370

GS136

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-28010

GS13#,JZS13#,LS13#

 1
47288-32010

GS13#,JZS13#,LS13#,YS130

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-30011

GS13#..HTWC

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-30011

GS13#..HTWC

 1
75341C - PLATE, HOOD NAME
75341-20060

GS13#,JZS13#,LS13#

ﾕｷｸﾞﾆ ｼﾖｳ

 1
75341-20060

GS13#,JZS13#,LS13#,YS130

ﾕｷｸﾞﾆ ｼﾖｳ

 1
