GS136V-AXMDK (1991)
Toyota Crown

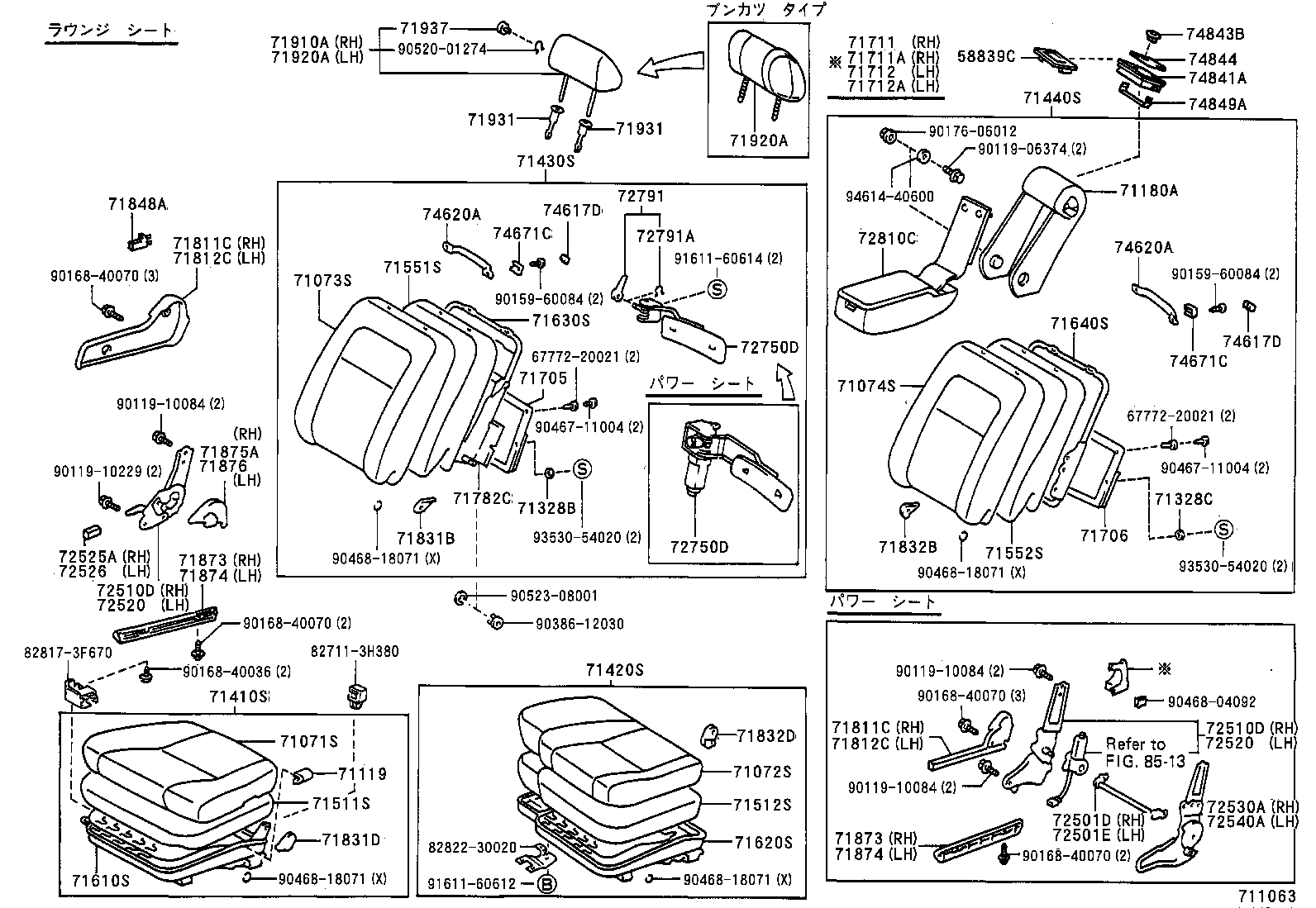

ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30250J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-30120J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706-30120J0 |
YS130;GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30040J1 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30040J0 |
GS130..4H..SDX;GS130,JZS131,133..4FC,4HC,5F;GS131,136,JZS130,LS13#,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71875-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J0 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-30080J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010J0 |
YS130;GS130..(4H,4HC)..TWLPG;GS130,JZS131,133..4FC,5F;GS131,136,JZS130,LS13#..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 72791-22020J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DARK BLUE,TRIM8# |
1 | ||
| 72791-12010J0 |
GS13#..DLX,SDX DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 |
1 | ||
| 90520-01002 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD |
1 | ||
| 90520-01006 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40070 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-60614 | ||||
| 93510-14016 | ||||
| 93530-54020 | ||||
| 93540-15010 | ||||
| 93560-14014 | ||||
ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-91712J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71071-31150J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-91705J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072-31100J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-91714J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073-31130J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-91708J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074-31120J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
GS130..WG..4FC;GS130..4FC..SDX..TWLPG;LS130,YS130..DLX,DLXA,SALEX,STD;GS130,JZS131..(4FC,5F)..(DLX,ROY);GS136,JZS130,133,135,LS136..4FC,4HC,5F;GS130,JZS131..(4H,4HC)..(ROY,SALEX,SDX) |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS130..4FC,4HC,5F |
2 | ||
| 71328-30010 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS130..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
GS130..WG;JZS131..4HC;JZS131..4FC..ROY;GS130..SDX..TWLPG;LS130,YS130..DLX,DLXA,SALEX,STD;GS130..(4FC,4HC,5F)..(DLX,ROY,SALEX);GS136,JZS130,133,135,LS136..4FC,4HC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31140J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31110J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-31120J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31120J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31050J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-31110J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31110J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31040J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30700 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30330 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71620-30330 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A090 |
GS136,LS130,136..DLX,SDX;GS130..(4FC,5F)..(DLX,SDX)..HTWC |
1 | ||
| 71630-3A090 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDEC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30790 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30250J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30250J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-30120J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706-30120J0 |
YS130;GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-30120J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706-30120J0 |
YS130;GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
GS136 DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
YS130;JZS130..4HC;GS130..4H..SDX;GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
GS136 DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
YS130;JZS130..4HC;GS130..4H..SDX;GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30040J1 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30030J0 |
GS130..4FC,5F;GS130..4H..SDX;GS131,136,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
YS130;GS130..4H..SDX;GS130..4FC,4HC,5F;GS131,136,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
GS130..4H..SDX;JZS131,133,YS130;GS130..4FC,4HC,5F;GS131,136,JZS130,LS13#..(4FC,5F)..(DLX,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30020J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30010J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30010J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30020J0 |
GS130..4H..SDX;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS130,136,LS130,136..(4FC,4HC,5F)..(DLX,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30020J0 |
GS130..4H..SDX;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS130,136,LS130,136..(4FC,4HC,5F)..(DLX,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30040J0 |
GS130..4H..SDX;GS130,JZS131,133..4FC,4HC,5F;GS131,136,JZS130,LS13#,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71875-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30040J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71876-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71876-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J0 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-30080J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-30050J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72526-30050J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72526-30050J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010J0 |
YS130;GS130..(4H,4HC)..TWLPG;GS130,JZS131,133..4FC,5F;GS131,136,JZS130,LS13#..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 72791-22020J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DARK BLUE,TRIM8# |
1 | ||
| 72791-12010J0 |
GS13#..DLX,SDX DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 |
1 | ||
| 90520-01002 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD |
1 | ||
| 90520-01006 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40049 | ||||
| 90168-40070 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91611-60614 | ||||
| 93530-54020 | ||||

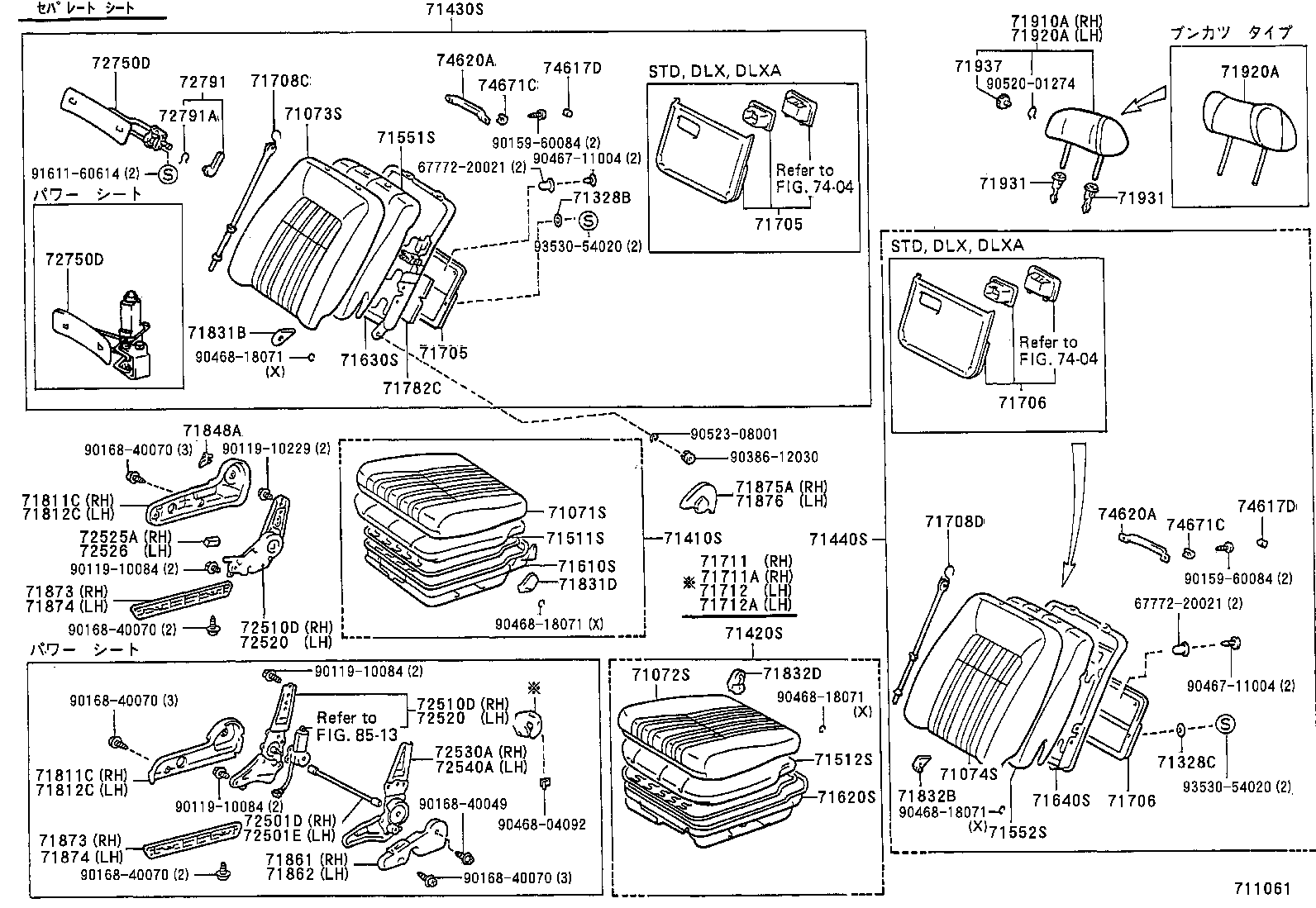

ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-91712J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71071-31150J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-91705J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072-31100J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-91714J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073-31130J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-91708J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074-31120J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
GS130..WG..4FC;GS130..4FC..SDX..TWLPG;LS130,YS130..DLX,DLXA,SALEX,STD;GS130,JZS131..(4FC,5F)..(DLX,ROY);GS136,JZS130,133,135,LS136..4FC,4HC,5F;GS130,JZS131..(4H,4HC)..(ROY,SALEX,SDX) |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS130..4FC,4HC,5F |
2 | ||
| 71328-30010 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31140J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31110J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-31120J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31120J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31050J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-31110J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31110J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31040J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30700 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30330 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71620-30330 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A090 |
GS136,LS130,136..DLX,SDX;GS130..(4FC,5F)..(DLX,SDX)..HTWC |
1 | ||
| 71630-3A090 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDEC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30790 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30250J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
GS136 DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
YS130;JZS130..4HC;GS130..4H..SDX;GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30020J0 |
GS130..4H..SDX;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS130,136,LS130,136..(4FC,4HC,5F)..(DLX,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J0 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90149-60097 | ||||
| 90159-60084 | ||||
| 90168-40049 | ||||
| 90168-40070 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91611-60614 | ||||
| 93510-14012 | ||||
| 93520-53008 | ||||
| 93530-54020 | ||||

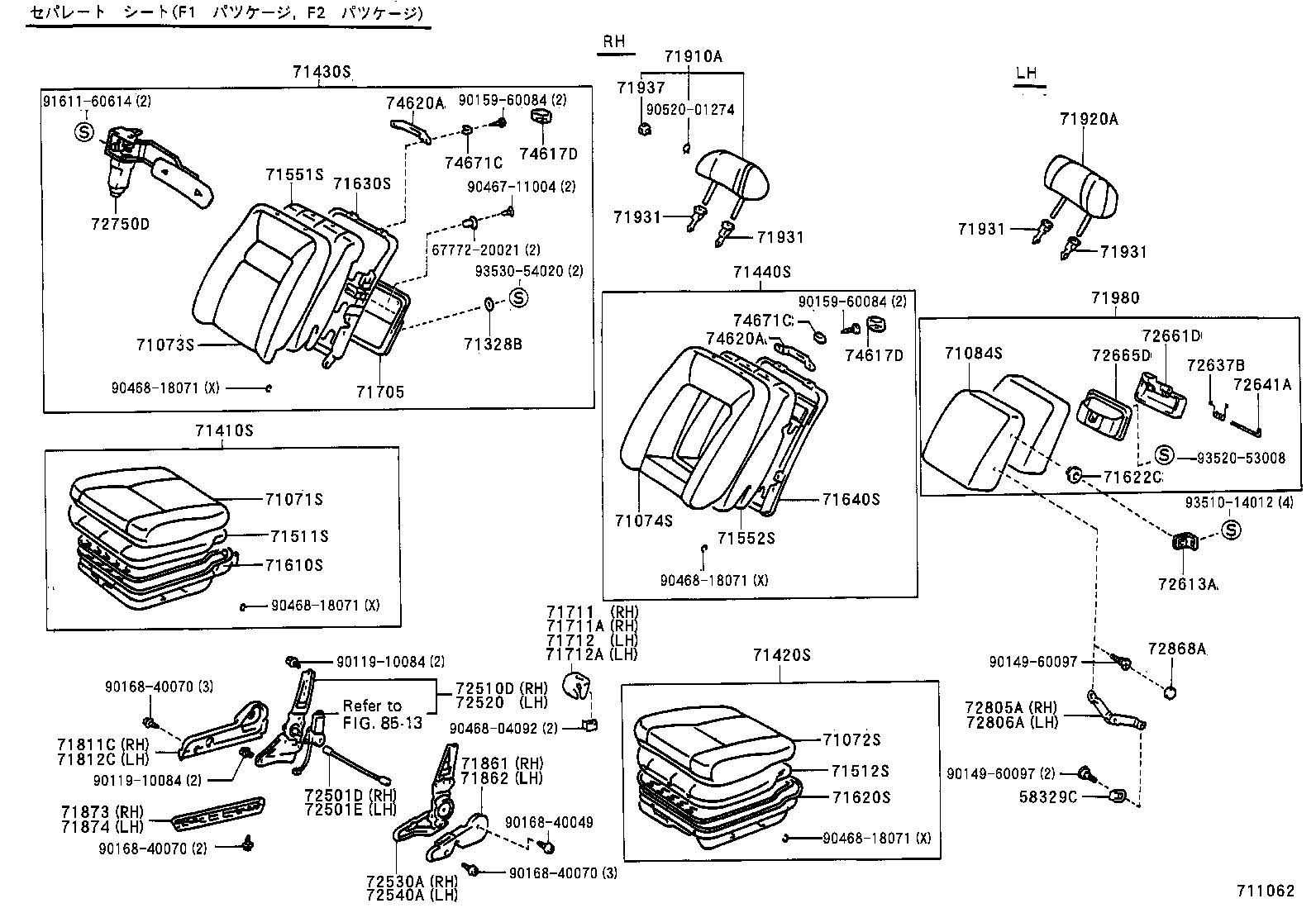

ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-91712J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71071-31150J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-91705J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71072-31100J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-91714J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71073-31130J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-91708J0 |
GS136,LS136..(4FC,5F)..DLX DK.BLUE,TRIM8# |
1 | ||
| 71074-31120J0 |
GS136..DLX DK.BLUE,TRIM8# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
GS130..WG..4FC;GS130..4FC..SDX..TWLPG;LS130,YS130..DLX,DLXA,SALEX,STD;GS130,JZS131..(4FC,5F)..(DLX,ROY);GS136,JZS130,133,135,LS136..4FC,4HC,5F;GS130,JZS131..(4H,4HC)..(ROY,SALEX,SDX) |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS130..4FC,4HC,5F |
2 | ||
| 71328-30010 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS130..4FC,4HC,5F |
2 | ||
| 71328-30010 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
2 | ||
| 71328-30010 |
GS130..WG;JZS131..4HC;JZS131..4FC..ROY;GS130..SDX..TWLPG;LS130,YS130..DLX,DLXA,SALEX,STD;GS130..(4FC,4HC,5F)..(DLX,ROY,SALEX);GS136,JZS130,133,135,LS136..4FC,4HC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-31140J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-31060J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31060J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-31110J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-31120J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31120J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-31050J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-31110J1 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31110J2 |
GS136,LS136..(4FC,5F)..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-31040J0 |
GS136..DLX ***,DK.BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30670 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71511-30670 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 71511-30840 |
YS130;GS130,136,LS130..(4FC,5F)..(DLX,ROY,SDX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30820 |
YS130;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71551-30820 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30700 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30330 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71620-30330 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A090 |
GS136,LS130,136..DLX,SDX;GS130..(4FC,5F)..(DLX,SDX)..HTWC |
1 | ||
| 71630-3A090 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDEC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30790 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30250J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-30120J0 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71706-30120J0 |
YS130;GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30220J0 |
GS130..4H..SDX;GS130,136,LS130,136..SED,V DK.BLUE,TRIM8# |
1 | ||
| 71811-30220J0 |
GS130..4H..SDX..HTWC;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
GS136 DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
YS130;JZS130..4HC;GS130..4H..SDX;GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
GS136 DK.BLUE,TRIM8# |
1 | ||
| 71812-30130J0 |
YS130;JZS130..4HC;GS130..4H..SDX;GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30040J1 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 71831-30040J1 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30030J0 |
GS130..4FC,5F;GS130..4H..SDX;GS131,136,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
YS130;GS130..4H..SDX;GS130..4FC,4HC,5F;GS131,136,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
GS130..4H..SDX;JZS131,133,YS130;GS130..4FC,4HC,5F;GS131,136,JZS130,LS13#..(4FC,5F)..(DLX,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 71831-30030J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30020J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30010J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71832-30010J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71832-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30020J0 |
GS130..4H..SDX;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS130,136,LS130,136..(4FC,4HC,5F)..(DLX,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30020J0 |
GS130..4H..SDX;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS130,136,LS130,136..(4FC,4HC,5F)..(DLX,ROY,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021J0 |
GS130,JZS130..WG..(4H,4HC);GS13#,JZS131,133,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71873-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30040J0 |
GS130..4H..SDX;GS130,JZS131,133..4FC,4HC,5F;GS131,136,JZS130,LS13#,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 71875-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30040J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71876-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71876-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J0 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-30760J0 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J1 |
GS136;GS130,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 71910-30760J2 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD DK.BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#..DLX,SDX ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
GS13#,JZS13#,LS13# ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13# ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#..DLX,SDX ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
GS13#,JZS13#,LS13#,YS130 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-91705 |
GS136,LS136..4FC,5F |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-30080J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72525-30080J0 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-30050J0 |
GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72526-30050J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72526-30050J0 |
YS130;GS130..4H..SDX;GS13#,JZS130,131,133,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72750-30121 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010J0 |
YS130;GS130..(4H,4HC)..TWLPG;GS130,JZS131,133..4FC,5F;GS131,136,JZS130,LS13#..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 72791-22020J1 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 DARK BLUE,TRIM8# |
1 | ||
| 72791-12010J0 |
GS13#..DLX,SDX DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130 |
1 | ||
| 90520-01002 |
JZS131,133;GS13#,JZS130,LS13#..DLX,SALEX,SDX,STD |
1 | ||
| 90520-01006 |
JZS130..SALEX;GS13#,JZS131,133,LS13#,YS130..4FC,5F |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 82711-3H380 | ||||
| 82817-3F670 | ||||
| 82822-30020 | ||||
| 90119-06374 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40036 | ||||
| 90168-40070 | ||||
| 90176-06012 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 93530-54020 | ||||
| 94614-40600 | ||||

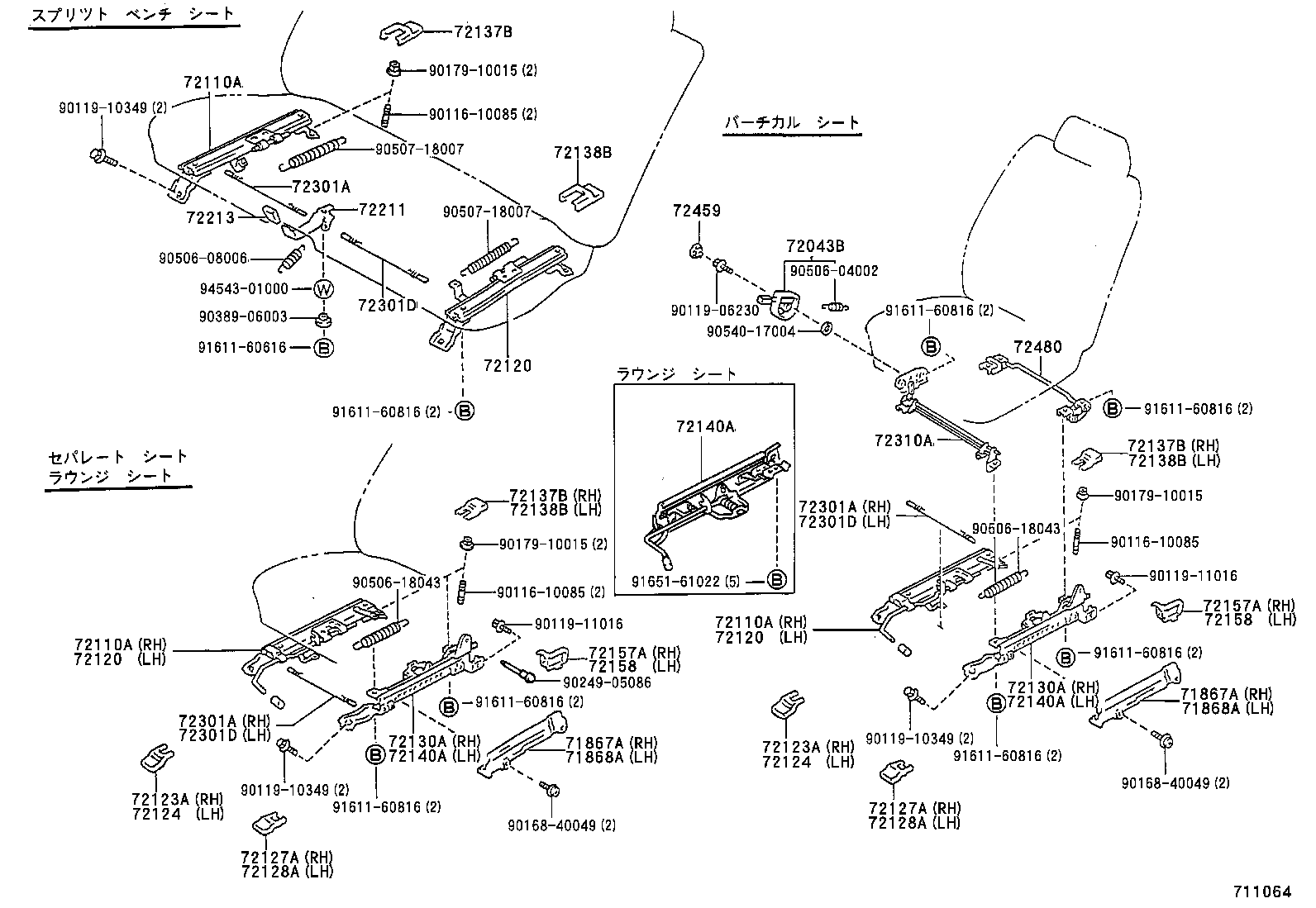

ILLUST NO. 2 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30030J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71867-30030J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30030J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71867-30030J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30050J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
GS130..4H..SDX;JZS130,YS130..4H,4HC;GS13#,JZS131,133,135,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30050J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
GS130..4H..SDX;JZS130,YS130..4H,4HC;GS13#,JZS131,133,135,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30390 |
GS130..WG..SALEX;GS130..4H..SDX..HTWC;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30390 |
GS130..WG..SALEX;GS130..4H..SDX..HTWC;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30390 |
GS130..WG..SALEX;GS130..4H..SDX..HTWC;GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD)..(DSL,HTWC,TDE,TDEC) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-30130 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 72130-30130 |
YS130;GS130..WG..SALEX;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-30130 |
GS130,136,LS130,136..(4FC,5F)..(DLX,SDX,STD) |
1 | ||
| 72130-30130 |
YS130;GS130..WG..SALEX;GS130,136,LS130,136..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30030J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137-30030J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30030J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137-30030J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30030J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137-30030J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30020J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30020J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#,JZS130,131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30020J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30020J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#,JZS130,131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30020J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30020J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#,JZS130,131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72140-30130 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72140-30130 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
YS130;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72140-30130 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30120 |
GS130..4H..SDX;GS130..WG..SALEX;GS130..(4FC,4HC,5F)..(DLX,ROY,SDX,STD);GS136,LS130,136,YS130..(SED,V)..(4FC,5F) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30120 |
GS130..4H..SDX;GS130..WG..SALEX;GS130..(4FC,4HC,5F)..(DLX,ROY,SDX,STD);GS136,LS130,136,YS130..(SED,V)..(4FC,5F) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30120 |
GS130..4H..SDX;GS130..WG..SALEX;GS130..(4FC,4HC,5F)..(DLX,ROY,SDX,STD);GS136,LS130,136,YS130..(SED,V)..(4FC,5F) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
GS13#,JZS130,131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
GS13#,JZS130,131,133,LS13#,YS130..4FC,5F |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
GS13#,JZS130,131,133,LS13#,YS130..4FC,5F |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90179-10015 | ||||
| 90249-05086 | ||||
| 90389-06003 | ||||
| 90506-04002 | ||||
| 90506-08006 | ||||
| 90506-18043 | ||||
| 90507-18007 | ||||
| 90540-17004 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91651-61022 | ||||
| 94543-01000 | ||||
ILLUST NO. 2 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30030J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71867-30030J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30050J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 71868-30050J0 |
GS130..4H..SDX;JZS130,YS130..4H,4HC;GS13#,JZS131,133,135,LS13#..(SED,V)..(4FC,4HC,5F) DK.BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72123-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30040J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72124-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72127-30040J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30010J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX..HTWC;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(DSL,HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72128-30010J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30030J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72137-30030J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30020J0 |
GS130,136,LS130,136..DLX,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30020J0 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#,JZS130,131,133,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 72138-30021J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72157-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30020J0 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS13#..DLX,SDX DK.BLUE,TRIM8# |
1 | ||
| 72158-30020J0 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90168-40061 | ||||
| 90179-10015 | ||||
| 91611-60816 | ||||
| 91651-61022 | ||||
ILLUST NO. 3 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71521B - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-30280 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71521-30280 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71522B - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30140 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71522-30140 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523-30040 |
GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523-30040 |
GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523-30040 |
GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71523-30040 |
GS13#,JZS13#,LS13#..4FC,5F |
2 | ||
| 71524A - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 71524-30060 |
YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
