GS136V-AXMDE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

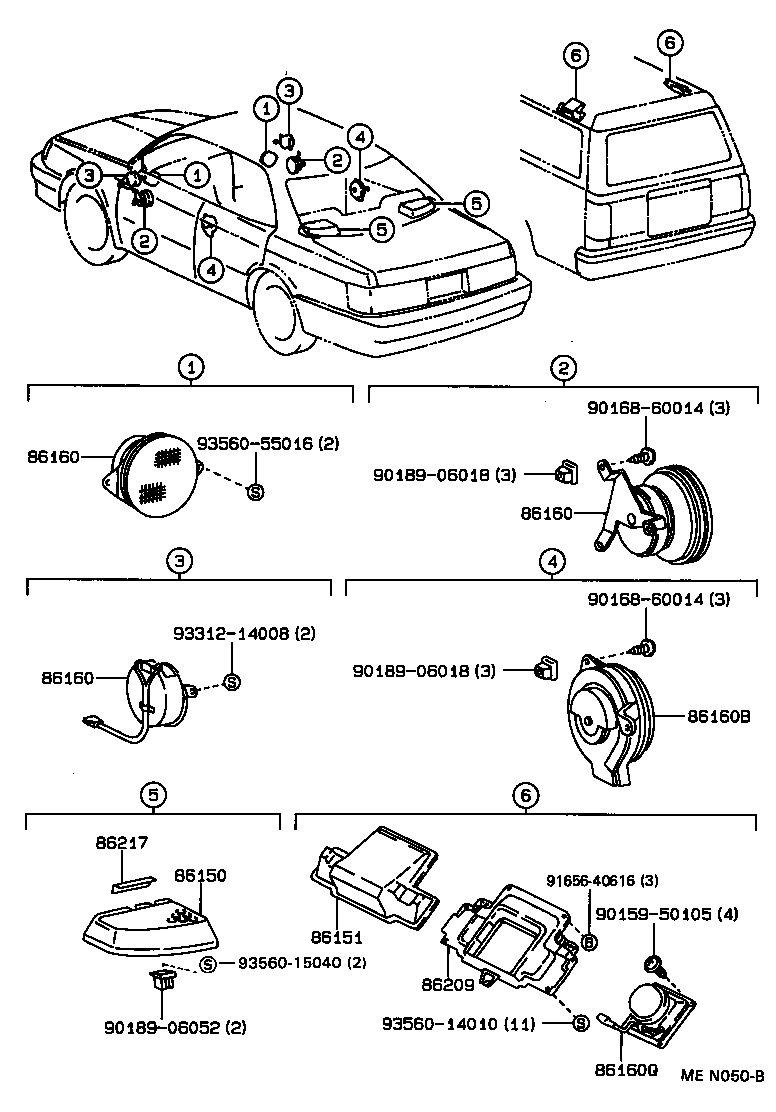

Click highlighted areas on diagram

diagram 86150 86151 86160 86160 86160 86160B 86160Q 86209 86217 9015950105 9016860014 9016860014 9018906018 9018906018 9018906052 9165640616 9331214008 9356014010 9356015040 9356055016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-30450

GS136,LS136..DLX,SDX;GS130,LS130,MS130,YS130..DLX,STD

INSTRUMENT PANEL,LH

 1
86160-30240

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

INSTRUMENT PANEL,RH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-30450

GS136,LS136..DLX,SDX;GS130,LS130,MS130,YS130..DLX,STD

INSTRUMENT PANEL,LH

 1
86160-30240

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

INSTRUMENT PANEL,RH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-30450

GS136,LS136..DLX,SDX;GS130,LS130,MS130,YS130..DLX,STD

INSTRUMENT PANEL,LH

 1
86160-30240

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

INSTRUMENT PANEL,RH

 1
Common parts
90159-50105
90168-60014
90189-06018
90189-06052
91656-40616
93312-14008
93560-14010
93560-15040
93560-55016
