GS136V-AXMDE (1987)
Toyota Crown
(8709-8908)SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

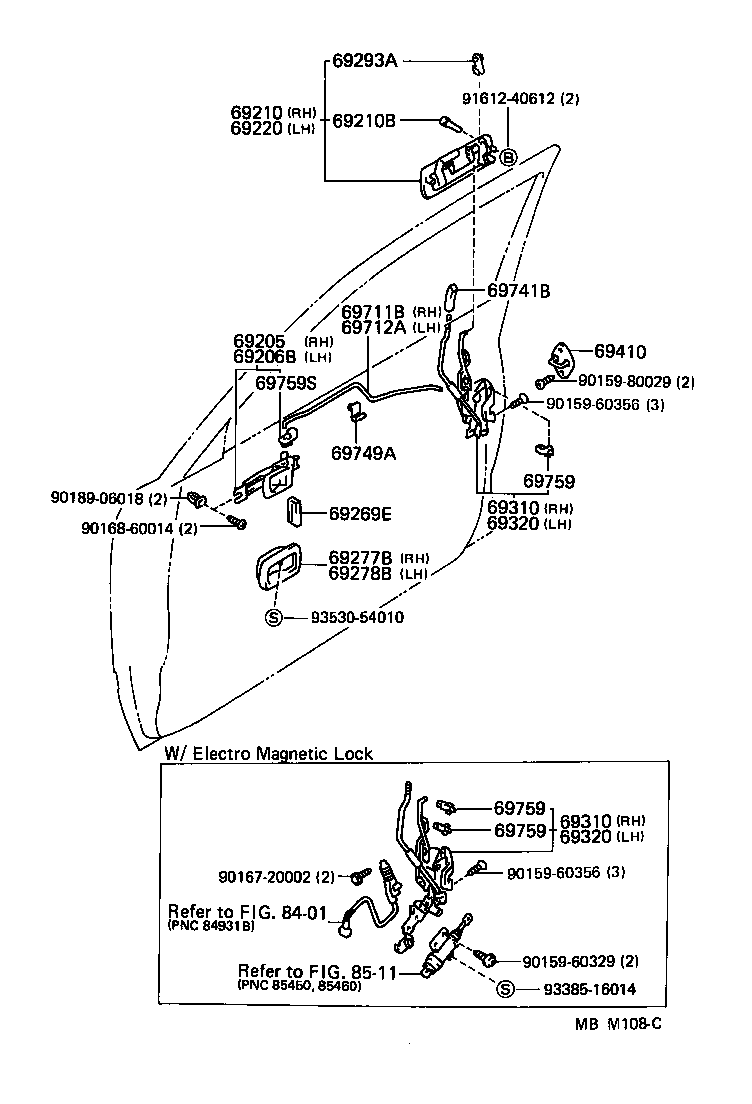

| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30041 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69205-30040 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30040 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69206-30041 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30150 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-30130 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 69269E - SEAL, FRONT DOOR INSIDE HANDLE | ||||
| 69269-30010 |
GS13#,LS13#,MS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 69277-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69277-3006004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 69277-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| 69293-12050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30650 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30650 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30630 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30630 |
GS136,LS136;GS130,LS130,YS130..STD |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-30100 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-3003022 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
2 | ||
| 69741-3003024 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG DARK BLUE,TRIM8# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GS136,LS136;GS130,LS130,YS130..STD 左側 |
1 | ||
| 69759-24060 |
GS136,LS136;GS130,LS130,YS130..STD 右側 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GS136,LS136;GS130,LS130,YS130..STD 左側 |
1 | ||
| 69759-24060 |
GS136,LS136;GS130,LS130,YS130..STD 右側 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GS136,LS136;GS130,LS130,YS130..STD 左側 |
1 | ||
| 69759-24060 |
GS136,LS136;GS130,LS130,YS130..STD 右側 |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24010 |
GS13#,LS13#,MS13#,YS130 左側 |
1 | ||
| 69759-24020 |
GS13#,LS13#,MS13#,YS130 右側 |
1 | ||
| Common parts | ||||
| 90159-60329 | ||||
| 90159-60356 | ||||
| 90159-80029 | ||||
| 90167-20002 | ||||
| 90168-60014 | ||||
| 90189-06018 | ||||
| 91612-40612 | ||||
| 93385-16014 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
