GS136V-AXMDE (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
1GE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )GS136,LS136

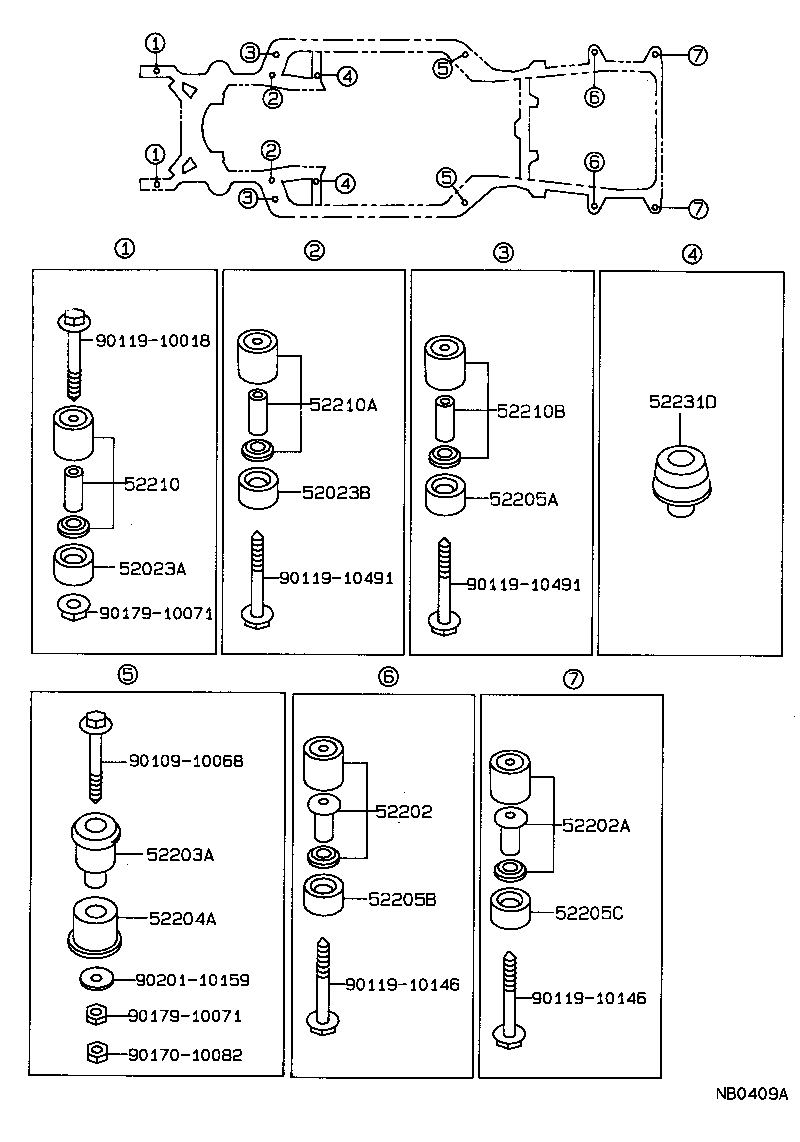

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52023-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52023B - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52023-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52202 - CUSHION SUB-ASSY, BODY MOUNTING, UPPER | ||||
| 52202-91590 |
GS136,LS136 |
2 | ||
| 52202A - CUSHION SUB-ASSY, BODY MOUNTING, UPPER | ||||
| 52202-91590 |
GS136,LS136 |
2 | ||
| 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER | ||||
| 52203-91701 |
GS136,LS136 |
2 | ||
| 52204A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52204-91701 |
GS136,LS136 |
2 | ||
| 52205A - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52205B - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-91702 |
GS136,LS136 |
2 | ||
| 52205C - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-91702 |
GS136,LS136 |
2 | ||
| 52210 - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52210A - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52210B - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52231D - CUSHION, BODY MOUNTING, REAR UPPER | ||||
| 52231-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| Common parts | ||||
| 90109-10068 | ||||
| 90119-10018 | ||||
| 90119-10146 | ||||
| 90119-10491 | ||||
| 90170-10082 | ||||
| 90179-10071 | ||||
| 90201-10159 | ||||
