GS136V-AXMDE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS13#,JZS13#,LS13#,MS130,135,YS130

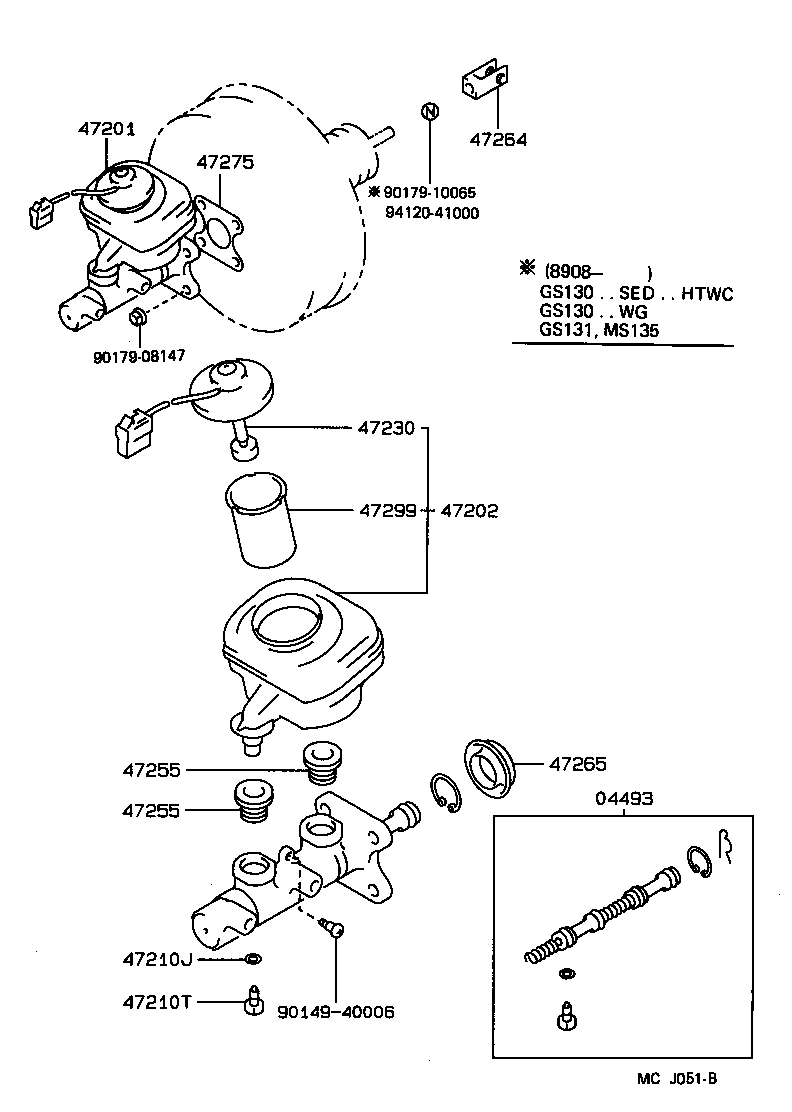

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908147 9017910065 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-30180

YS130..4HC;GS136,LS136;YS130..4H..DLX;GS130,131,LS130,131,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWLPG)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-30300

YS130..4HC;YS130..4H..DLX;GS131,136,LS136,MS130..DSL,EFI,LPG;GS130,LS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-30100

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS13#;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS130,135;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12080

YS130..4HC;GS136,LS136;YS130..4H..DLX;GS130,131,LS130,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GS13#,LS13#,MS13#,YS130

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GS13#,LS13#,MS13#,YS130

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,JZS13#,LS131,136,MS13#,UZS131;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS13#;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
Common parts
90149-40006
90179-08147
90179-10065
94120-41000
