GS136V-AXMDE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS13#..5F

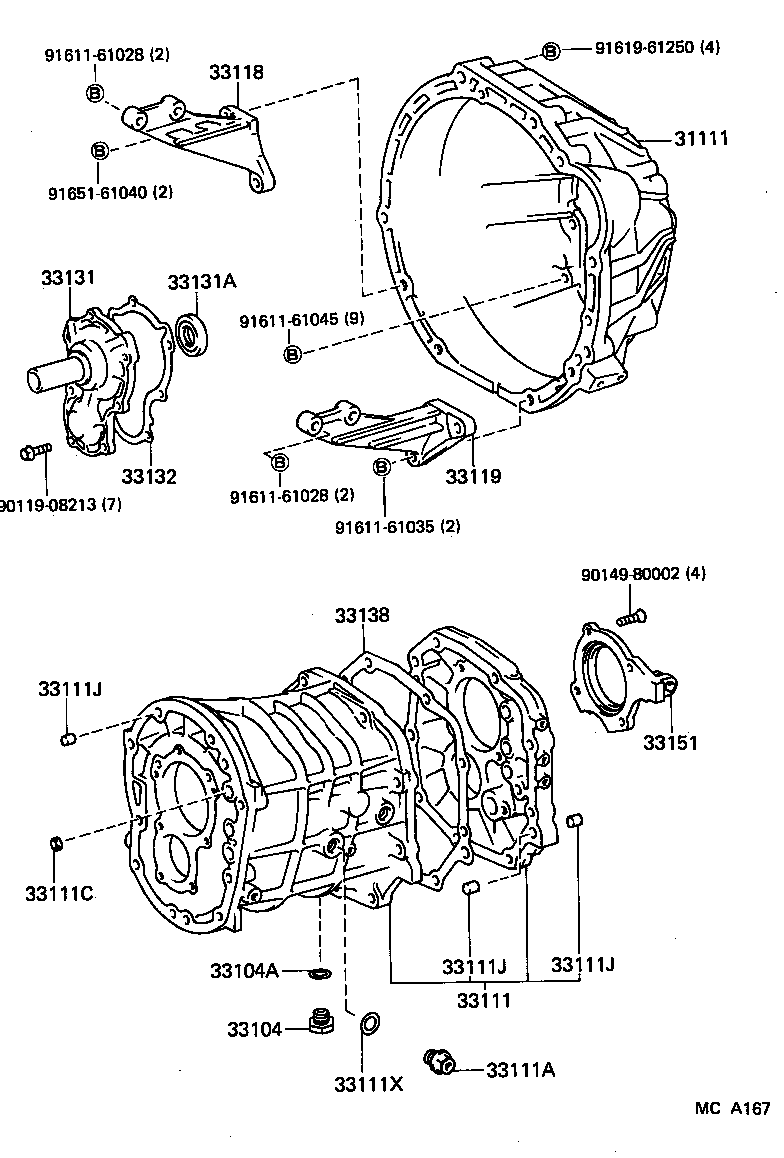

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9014980002 9161161028 9161161028 9161161035 9161161045 9161961250 9165161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-22130

GS13#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GS13#,LS13#,MS130,YS130..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GS13#,LS13#,MS130,YS130..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22031

GS13#,LS13#,YS130..5F

 1
33101-22030

GS13#,LS13#,YS130..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GS13#,LS13#,YS130..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GS13#,LS13#,YS130..5F

外径=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS131..HT..5F;GS136..5F..EFI;GS130,LS130,136,YS130..5F..(DSL,EFI,HTWC,LPG,TD)

長さ=16,外径=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS131..HT..5F;GS136..5F..EFI;GS130,LS130,136,YS130..5F..(DSL,EFI,HTWC,LPG,TD)

長さ=16,外径=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS131..HT..5F;GS136..5F..EFI;GS130,LS130,136,YS130..5F..(DSL,EFI,HTWC,LPG,TD)

長さ=16,外径=12

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

GS13#,LS13#,MS130,YS130..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22051

GS13#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22042

GS13#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GS13#,LS13#,YS130..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GS13#,LS13#,MS130,YS130..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

GS13#,LS13#,YS130..5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

GS13#,LS13#,YS130..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GS13#,LS13#,YS130..5F

 1
Common parts
90119-08213
90149-80002
91611-61028
91611-61035
91611-61045
91619-61250
91651-61040
