GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)SDX..TWLPG ; (9110-9512)GS130,136..ROY,STD

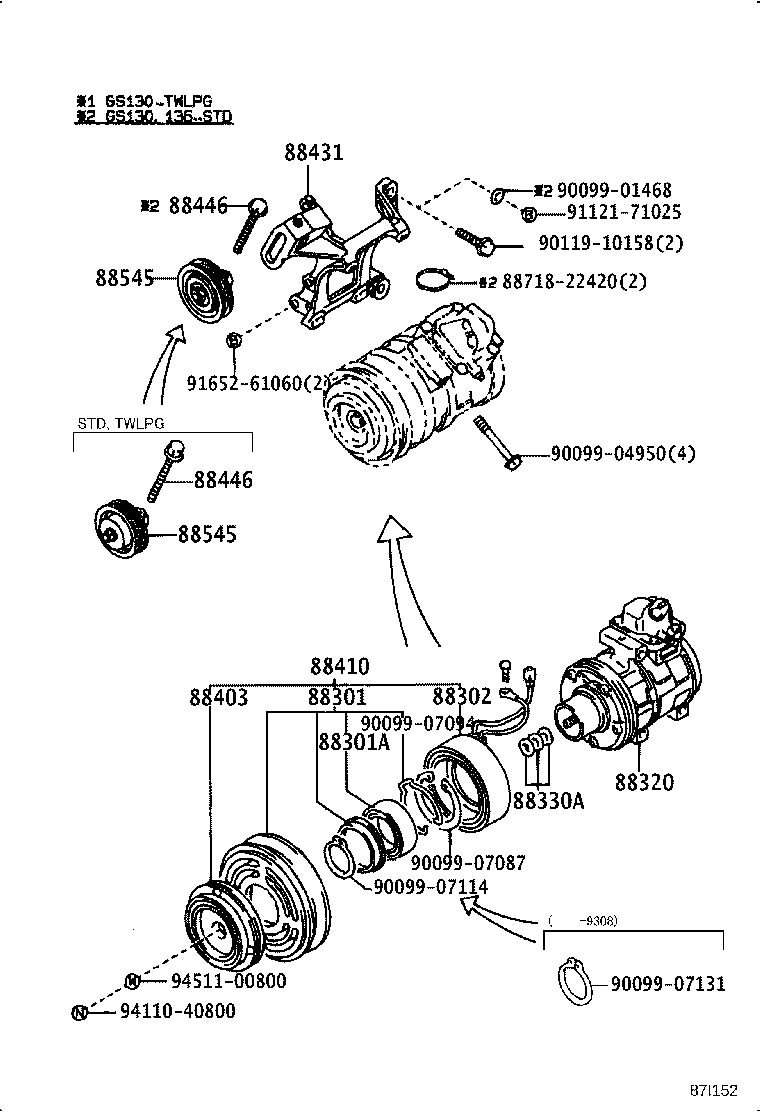

Click highlighted areas on diagram

diagram 88301 88301A 88302 88320 88330A 88403 88410 88431 88446 88446 88545 88545 8871822420 9009901468 9009904950 9009907087 9009907094 9009907114 9009907131 9011910158 9112171025 9165261060 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22050

GS130..SDX..TWLPG;GS130,136..ROY,STD

 1
88301A - BEARING (FOR MAGNET CLUTCH)
90099-10133

GS130..SDX..TWLPG;GS130,136..ROY,STD

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20180

GS130..SDX..TWLPG;GS130,136..ROY,STD

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30570

GS130..SDX..TWLPG;GS130,136..ROY,STD

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

GS130,136..STD

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

GS130,136..STD

 1
88410 - CLUTCH ASSY, MAGNET
88410-30640

GS130..SDX..TWLPG;GS130,136..ROY,STD

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24041

GS130,136..STD

 1
88446 - BOLT, IDLE PULLEY
90099-04306

GS13#,YS130

 1
88446 - BOLT, IDLE PULLEY
90099-04306

GS13#,YS130

 1
88545 - PULLEY ASSY, IDLE
88440-24010

GS130,136..STD

 1
88545 - PULLEY ASSY, IDLE
88440-24010

GS130,136..STD

 1
Common parts
88718-22420
90099-01468
90099-04950
90099-07087
90099-07094
90099-07114
90099-07131
90119-10158
91121-71025
91652-61060
94110-40800
94511-00800
