GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS13#

Click highlighted areas on diagram

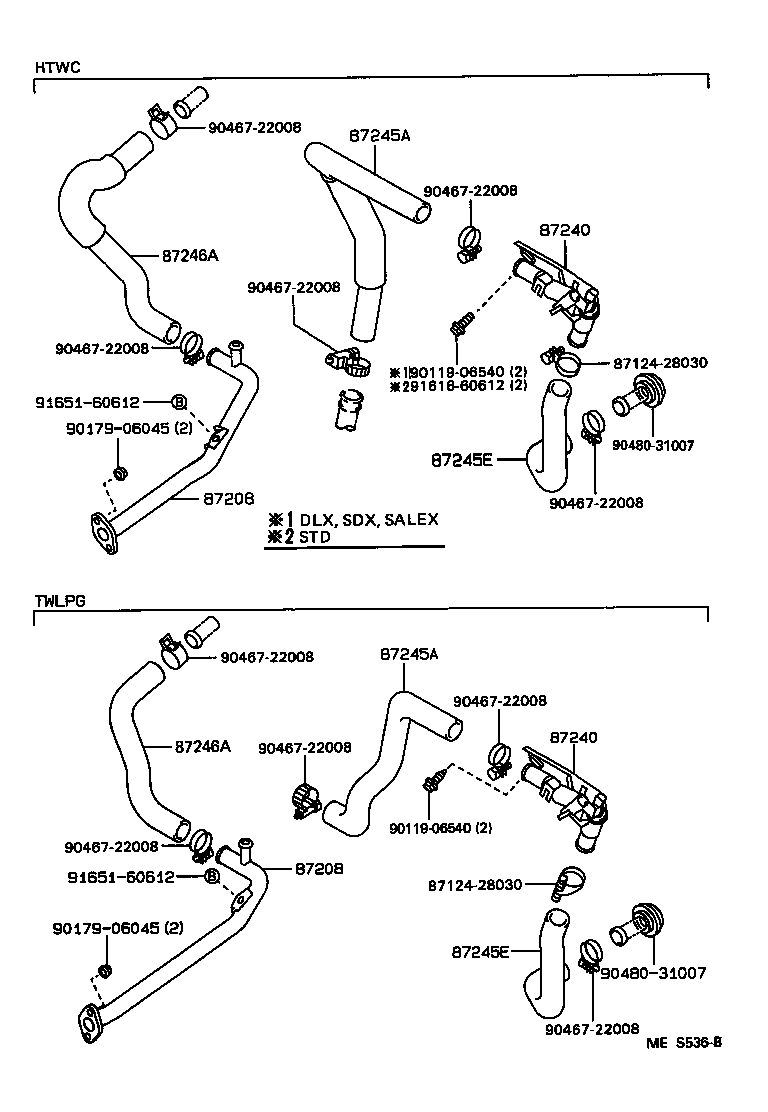

diagram 8712428030 8712428030 87208 87208 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906540 9011906540 9017906045 9017906045 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9048031007 9048031007 9161660612 9165160612 9165160612
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22262

GS13#..HTWC

 1
87208-22260

GS13#

 1
87208-22261

GS13#..HTWC

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22262

GS13#..HTWC

 1
87208-22260

GS13#

 1
87208-22261

GS13#..HTWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30540

GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87240 - VALVE ASSY, HEATER WATER
87240-30540

GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A380

GS13#..HTWC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A380

GS13#..HTWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A670

LS130,131;GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A260

GS13#,LS13#,YS130

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A670

LS130,131;GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A260

GS13#,LS13#,YS130

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30380

GS13#..HTWC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A360

GS13#..HTWC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30380

GS13#..HTWC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A360

GS13#..HTWC

 1
Common parts
87124-28030
90119-06540
90179-06045
90467-22008
90480-31007
91616-60612
91651-60612

(9110- )HTWC

Click highlighted areas on diagram

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

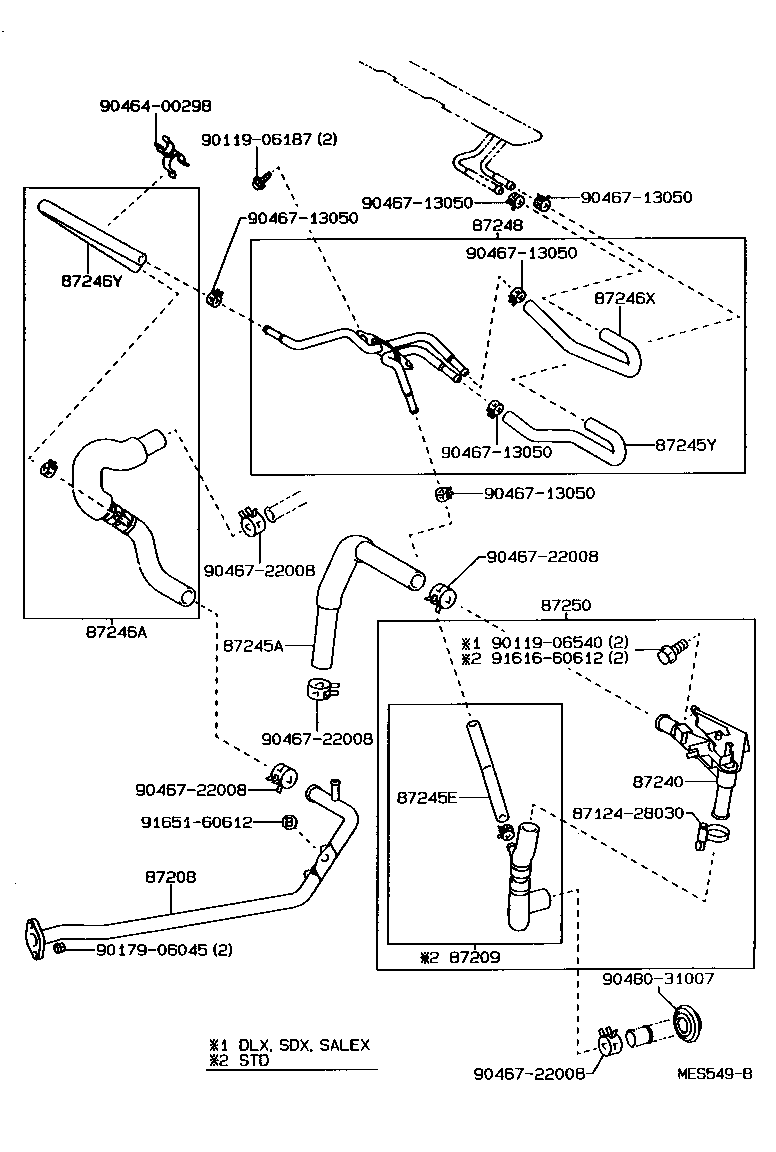

diagram 8712428030 87208 87209 87240 87245A 87245E 87245Y 87246A 87246X 87246Y 87248 87250 9011906187 9011906540 9017906045 9046400298 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046722008 9046722008 9046722008 9046722008 9046722008 9048031007 9161660612 9165160612
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22262

GS13#..HTWC

 1
87208-22260

GS13#

 1
87208-22261

GS13#..HTWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30540

GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A380

GS13#..HTWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A670

LS130,131;GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A260

GS13#,LS13#,YS130

 1
87245Y - HOSE, HEATER WATER
87245-3A650

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30380

GS13#..HTWC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A360

GS13#..HTWC

 1
87246X - HOSE, HEATER WATER
87245-3A640

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246Y - HOSE, HEATER WATER
87245-3A660

GS13#,JZS13#

 1
87245-3A660

GS13#

 1
87248 - PIPE SUB-ASSY, WATER
87248-30340

GS13#,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87250 - HOSE AND VALVE ASSY
87250-30130

GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
87124-28030
90119-06187
90119-06540
90179-06045
90464-00298
90467-13050
90467-22008
90480-31007
91616-60612
91651-60612
