GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

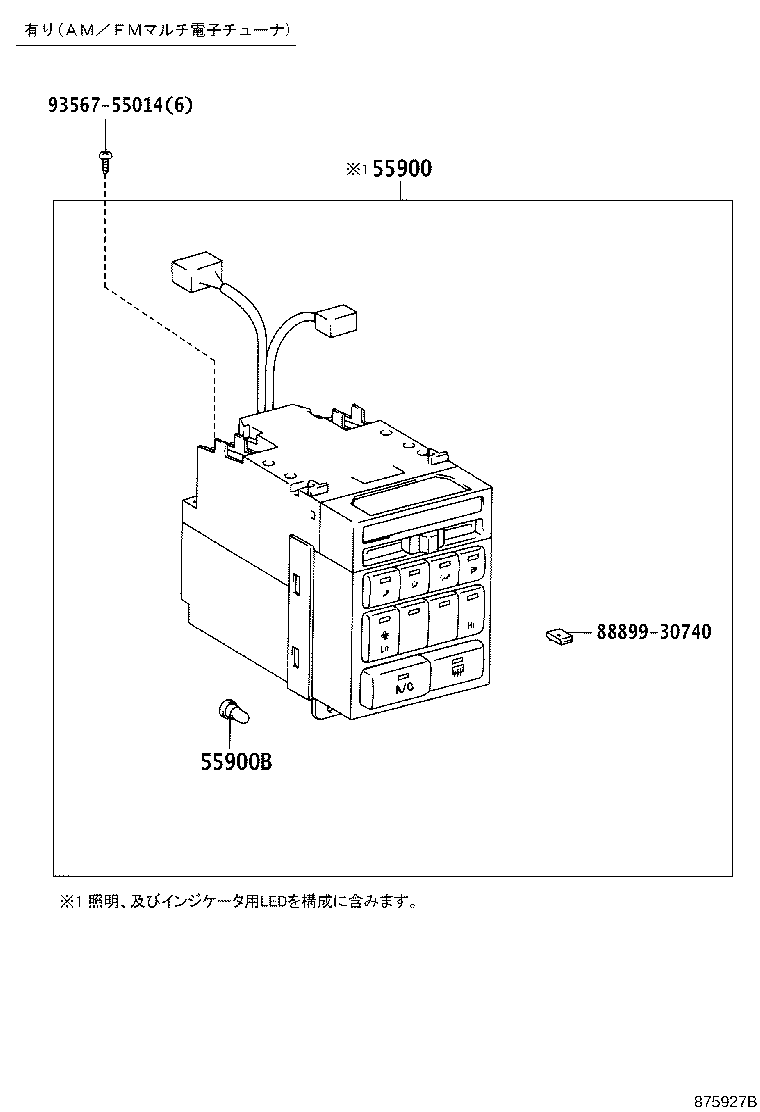

ILLUST NO. 1 OF 4(9110- )GS136,LS130..SED,V ; (9110- )GS130,131..SALEX,SDX

Click highlighted areas on diagram

ﾌﾟｯｼｭｼｷ ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ

diagram 55900 55900B 8889930740 9356755014
Part # Description Qty Price
Common parts
88899-30740
93567-55014

ILLUST NO. 1 OF 4(9110-9308)GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX ; (9308-9609)JZS130 ; (9308-

Click highlighted areas on diagram

ﾌﾟﾂｼﾕｼｷﾋ-ﾀ ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ

diagram 55900 55900B 55902B 88650M 9015350010 9356755014
Part # Description Qty Price
Common parts
90153-50010
93567-55014

ILLUST NO. 1 OF 4(9110-9512)YS130 ; (9110-9512)GS130,136..STD

Click highlighted areas on diagram

ﾚﾊﾞ- ｼｷ ﾋ-ﾀｺﾝﾄﾛ-ﾙ ﾊﾟﾈﾙ

diagram 55905A 55905A 55905A 55906A 55906A 55907A 55908A 55910 55931 55941 8302 8401 8401 8401 9356755014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-30170

YS130;GS130,136..STD

 3
55905A - KNOB, HEATER CONTROL
55905-30170

YS130;GS130,136..STD

 3
55905A - KNOB, HEATER CONTROL
55905-30170

YS130;GS130,136..STD

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-30111

YS130;GS130,136..STD

NO.2

 1
55906-30101

YS130;GS130,136..STD

NO.1

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-30111

YS130;GS130,136..STD

NO.2

 1
55906-30101

YS130;GS130,136..STD

NO.1

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-30170

YS130;GS130,136..STD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-30070

YS130;GS130,136..STD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-30181

YS130;GS130,136..STD

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

YS130;GS130,136..STD

 2
55941 - BRACKET, HEATER CONTROL
55938-30020

YS130;GS130,136..STD

 1
Common parts
93567-55014
Linked diagrams
8302
8401

ILLUST NO. 2 OF 4(9110- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｴｱ ﾀﾞｸﾄ

diagram 55087 55843A 55844 55845A 55848B 87127B 87201 87211 87211A 87211B 87212 87213 88539Q 88650B 88897P 9015960195 9016860014 9016860014 9016860014 9017906239 9018305094 9018305094 9018306090 9048031007 9356755014 9356755014 9356755014 9356755016
Part # Description Qty Price
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-30070

GS13#,JZS13#,LS13#,YS130

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-30160

GS13#,JZS13#,LS13#,YS130

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55085-30080

GS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55086-30100

YS130;GS130,136..STD

 1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-30070

GS13#,JZS13#,LS13#,YS130

 1
87127B - PACKING
87127-30030

GS130,136,YS130..STD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-30480

YS130;GS130,136..STD

 1
87211 - DUCT, AIR, NO.1
87201-30470

YS130;GS130,136..STD

 1
87211A - DUCT, AIR, NO.2
87211-30160

GS13#,JZS13#,LS13#,YS130

 1
87211B - DUCT, AIR, NO.3
87211-30170

GS13#,JZS13#,LS13#,YS130

 1
87212 - DUCT, AIR, REAR NO.1
87212-30341

GS130,136,YS130..STD

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87213 - DUCT, AIR, REAR NO.2
87213-30260

GS130,136,YS130..STD

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88539Q - PLUG, HOLE (FOR DRAIN HOSE HOLE)
90950-01587

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
Common parts
90159-60195
90168-60014
90179-06239
90183-05094
90183-06090
90480-31007
93567-55014
93567-55016
