GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )V,WG

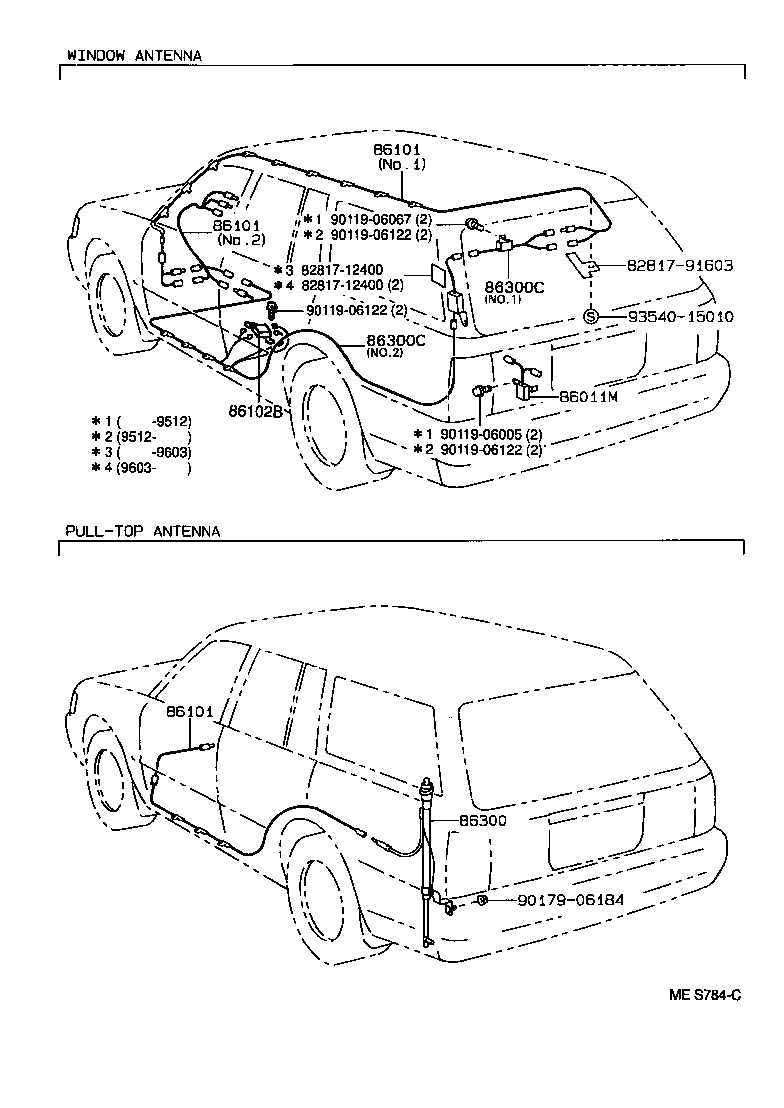

Click highlighted areas on diagram

diagram 8281712400 8281712400 8281791603 86011M 86101 86101 86101 86102B 86300 86300C 86300C 9011906005 9011906067 9011906122 9011906122 9011906122 9017906184 9354015010
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-91712

GS136..STD

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-91712

GS136..STD

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-91712

GS136..STD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91708

GS136..STD

 1
Common parts
82817-12400
82817-91603
90119-06005
90119-06067
90119-06122
90179-06184
93540-15010
