GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

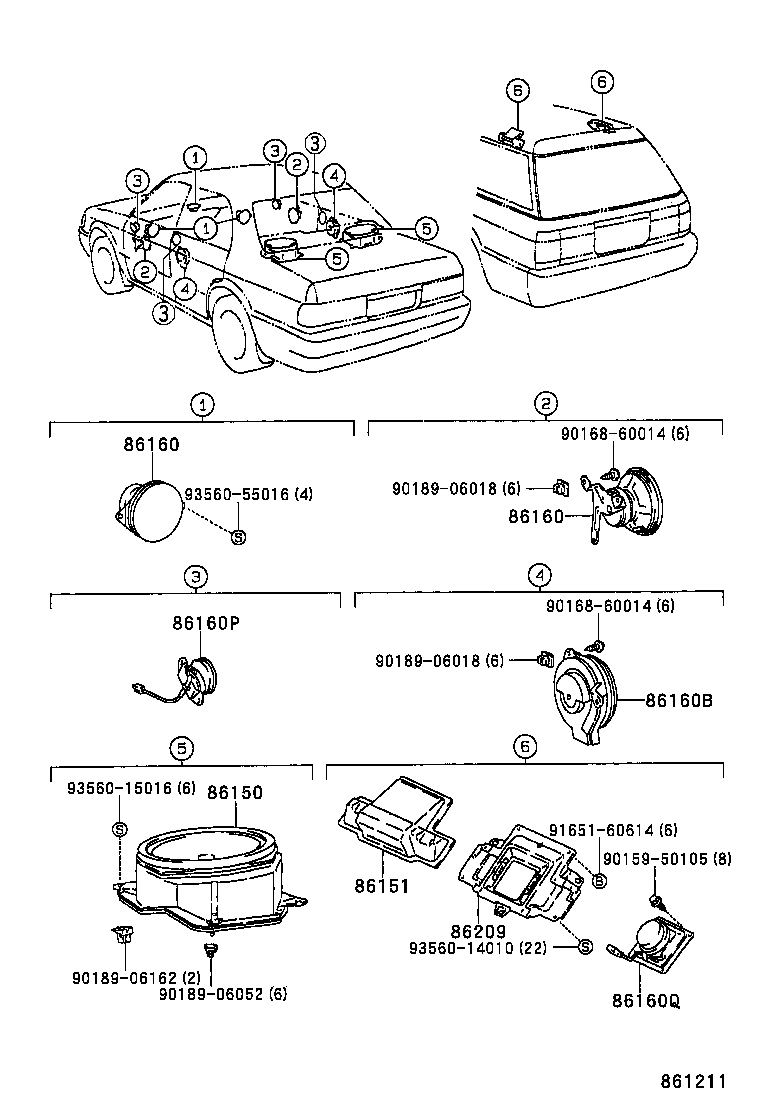

Click highlighted areas on diagram

diagram 86150 86151 86160 86160 86160B 86160P 86160Q 86209 9015950105 9016860014 9016860014 9018906018 9018906018 9018906052 9018906162 9165160614 9356014010 9356015016 9356055016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-30240

GS130,136,YS130..STD

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-30240

GS130,136,YS130..STD

 1
Common parts
90159-50105
90168-60014
90189-06018
90189-06052
90189-06162
91651-60614
93560-14010
93560-15016
93560-55016
