GS136V-AXJRK (1991)
Toyota Crown

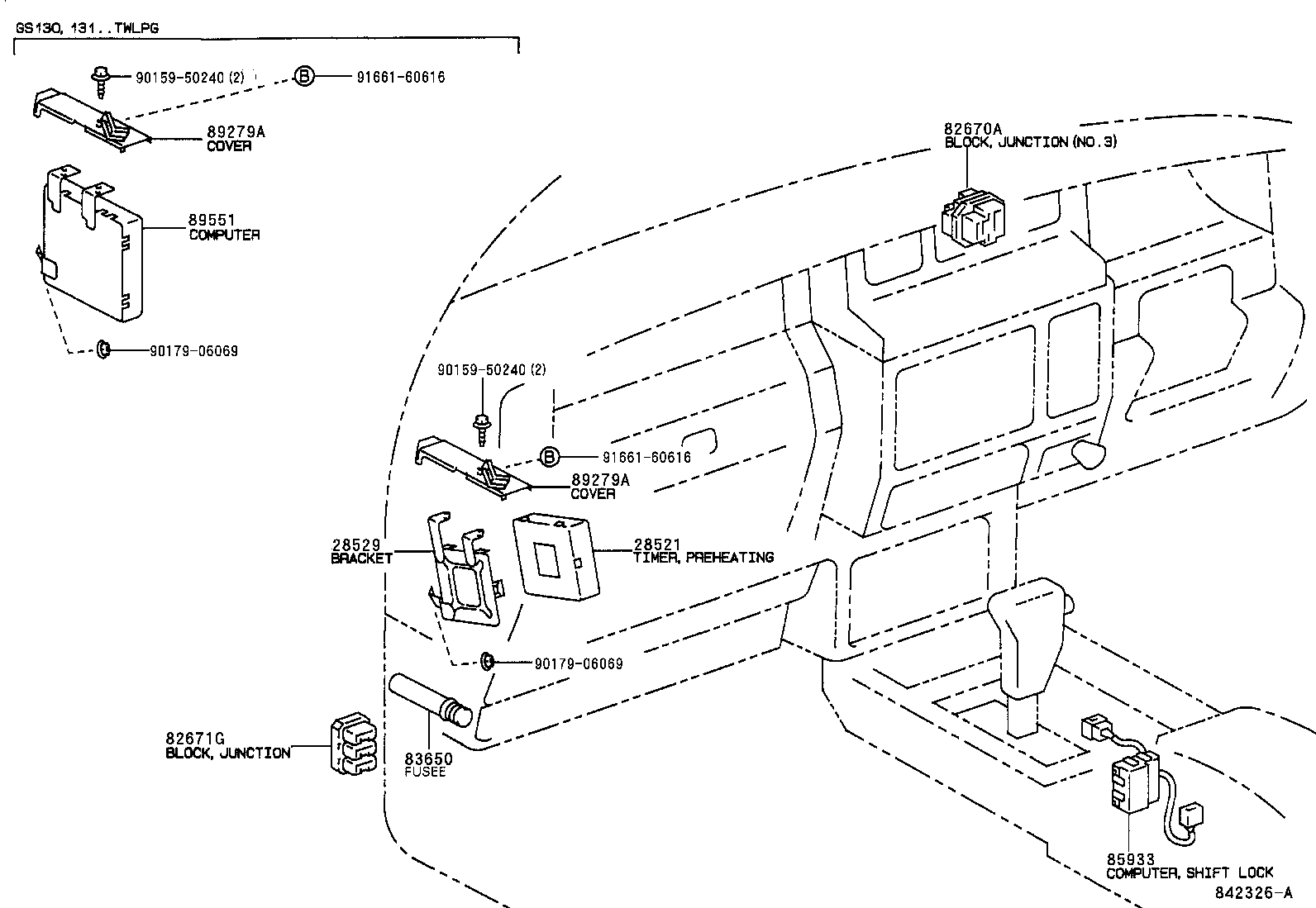

ILLUST NO. 5 OF 8(9110- )
ｶｳﾙ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90986-01005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| Common parts | ||||
| 90159-50240 | ||||
| 90179-06069 | ||||
| 91661-60616 | ||||

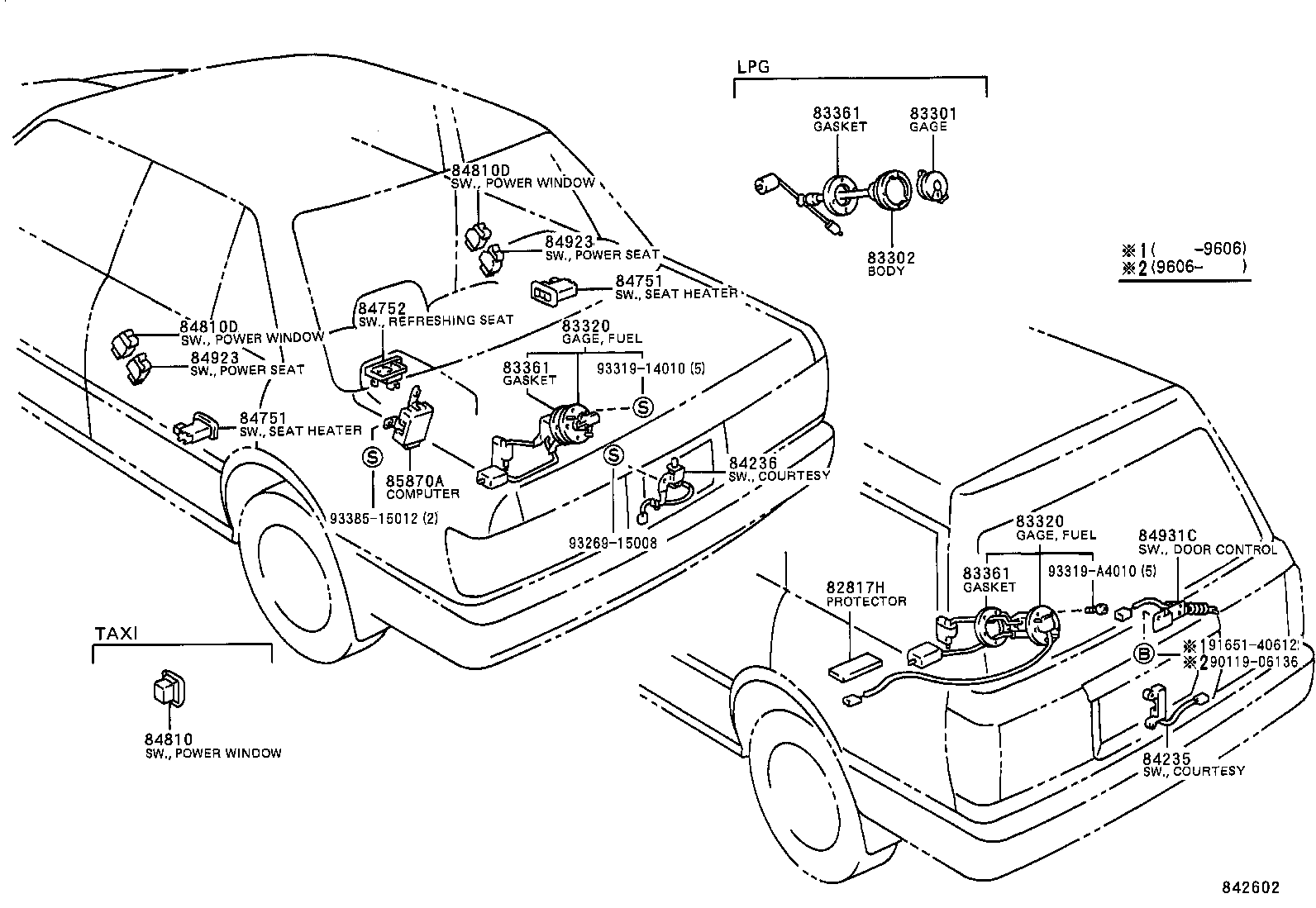

ILLUST NO. 8 OF 8(9110- )
ﾘﾔ ﾄﾞｱ & ﾌﾛｱ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80222 |
GS136,LS136 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80222 |
GS136,LS136 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS136,LS136 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS136,LS136 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS136,LS136 |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| Common parts | ||||
| 90119-06136 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14010 | ||||
| 93319-A4010 | ||||
| 93385-15012 | ||||

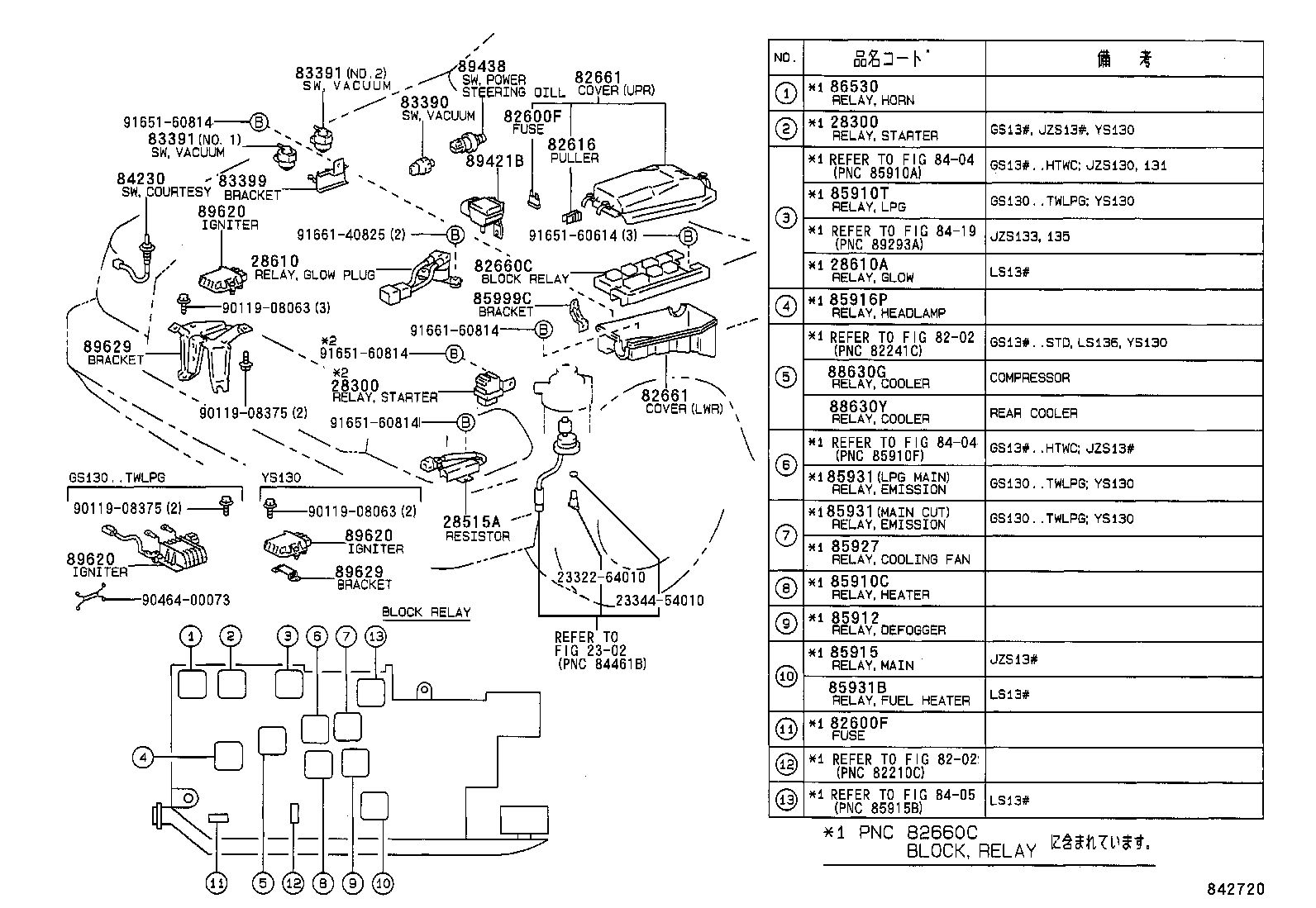

ILLUST NO. 2 OF 8(9110- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130 |
1 | ||
| 28300-16010 |
1GFE,1JZGE,2JZGE..GS13#,JZS13# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130 |
1 | ||
| 28300-16010 |
1GFE,1JZGE,2JZGE..GS13#,JZS13# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
GS13# 7.5A |
7 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
GS13# 7.5A |
7 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 82616-12010 |
GS13#,JZS13#,LS13# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30531 |
GS130,136..STD |
1 | ||
| 82660-30530 |
GS130,136..STD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC LOWER |
1 | ||
| 82662-30140 |
GS13#,JZS13#..HTWC,TWC UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC LOWER |
1 | ||
| 82662-30140 |
GS13#,JZS13#..HTWC,TWC UPPER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90987-04002 |
GS13#,JZS13#,LS13# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GS13#,JZS13#,LS13# |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-30290 |
GS13#,JZS130,131,LS130,131 |
1 | ||
| 85999-30290 |
GS13#,JZS130,131,LS130,131,YS130 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GS13#,JZS13#,LS13# |
1 | ||
| 86530-20070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS136..STD;GS130,131,JZS13#..ROY,ROYG,SALEX,SDX,STD |
1 | ||
| 90987-02004 |
GS13#,YS130..HTWC,LPEFI |
1 | ||
| 90987-02004 |
YS130;GS130..(SDX,STD)..HTWC;GS131,136,JZS13#..ROY,ROYG,SALEX,STD |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10100 |
GS13#..HTWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10100 |
GS13#..HTWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10100 |
GS13#..HTWC |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30020 |
GS13#..HTWC |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30020 |
GS13#..HTWC |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 90119-08063 | ||||
| 90119-08375 | ||||
| 90464-00073 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91661-40825 | ||||
| 91661-60814 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8419 | ||||

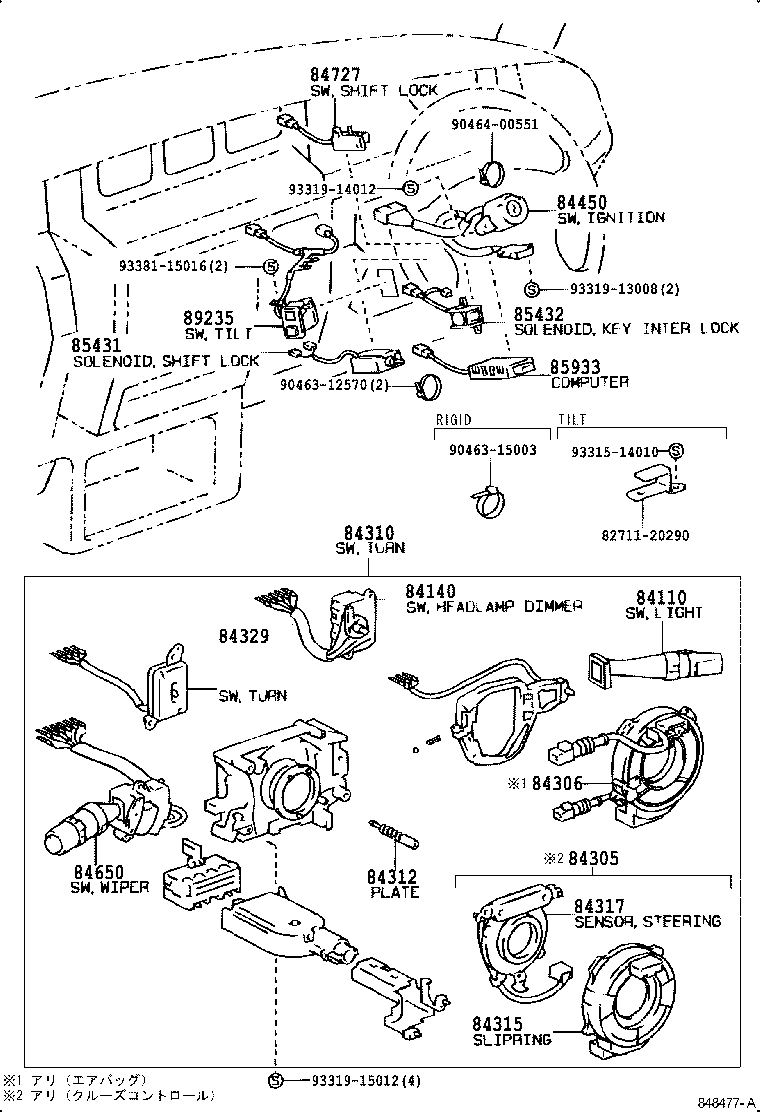

ILLUST NO. 6 OF 8(9110- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39665 |
GS130,136..STD |
1 | ||
| 84112-39665 |
GS130,136..STD;GS130,YS130..(DLX,DLXA,SDX,STD)..(LPEFI,TWLPG) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30080 |
JZS13#..4HC;GS130,136,JZS130,LS130,136..DLX,SALEX,SDX,STD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3A410 |
GS130,136..STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GS13#,JZS130,131,LS13# |
1 | ||
| 84312-12040 |
GS13#,JZS130,131,LS13#,YS130 |
1 | ||
| 84312-12040 |
JZS133..4FC;GS13#,JZS130,131,LS13#,YS130 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30230 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30190 |
GS130,136,LS130,136,YS130..DLX,DLXA,SDX,STD |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 90463-12570 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93381-15016 | ||||

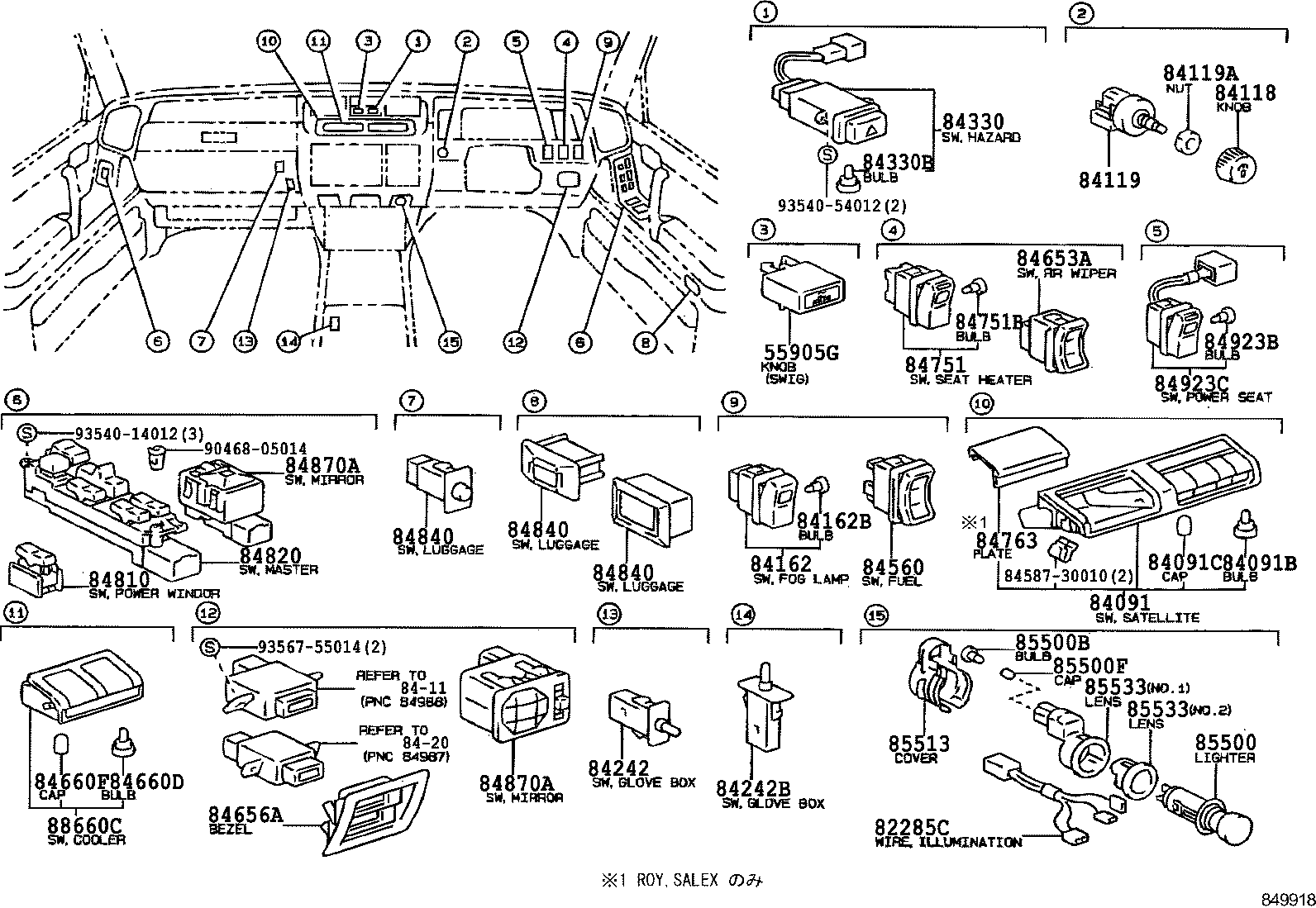

ILLUST NO. 3 OF 8(9110- )GS136 ; (9110- )GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285C - WIRE, ILLUMINATION, NO.2 | ||||
| 82285-30040 |
GS130,136..STD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS13#,JZS13#,LS13# |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513-12020 |
GS13#,JZS13#,LS13# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
GS130,136..STD |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
GS130,136..STD |
1 | ||
| Common parts | ||||
| 84587-30010 | ||||
| 90468-05014 | ||||
| 93540-14012 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8411 | ||||
| 8420 | ||||

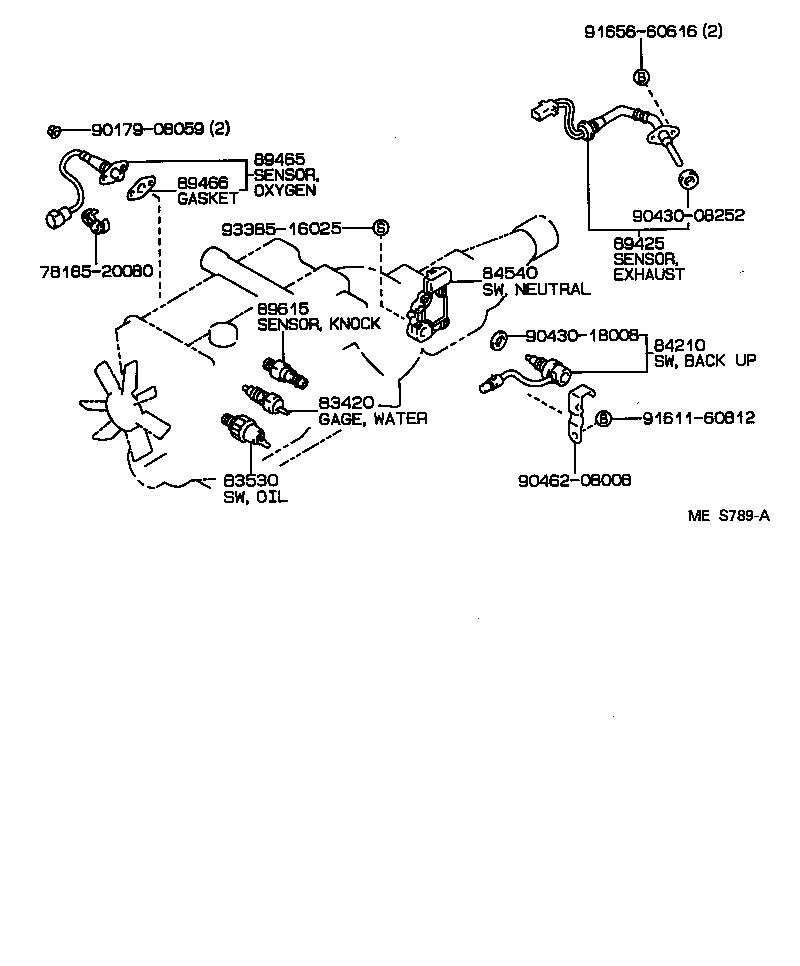

ILLUST NO. 1 OF 8(9110- )HTWC
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LS130,136;GS130,LS131..SALEX DENSO |
1 | ||
| 83420-20020 |
GS131,JZS130,131;GS130,136,JZS133,135,YS130..DLX,DLXA,ROY,ROYG,SDX,STD |
1 | ||
| 83420-20020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 83420-20030 |
LS130,136;GS130,LS131..SALEX YAZAKI |
1 | ||
| 83420-20020 |
GS13#,JZS13#,LS13# |
1 | ||
| 83420-16040 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC DENSO |
1 | ||
| 83420-20030 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
GS13#,JZS13# DENSO |
1 | ||
| 83530-30051 |
GS13# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39405 |
GS13#,JZS13# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39575 |
GS13#..HTWC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30030 |
GS13#..HTWC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
GS13#..HTWC |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91656-60616 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 8(9110-9512)GS136..SDX,STD ; (9110-9512)GS130,YS130..DLX,DLXA,STD
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285C - WIRE, ILLUMINATION, NO.2 | ||||
| 82285-30040 |
GS130,136..STD |
1 | ||
| 82285C - WIRE, ILLUMINATION, NO.2 | ||||
| 82285-30040 |
GS130,136..STD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS13#,JZS13#,LS13# |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS13#,JZS13#,LS13# |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513-12020 |
GS13#,JZS13#,LS13# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513-12020 |
GS13#,JZS13#,LS13# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
GS130,136..STD |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
GS130,136..STD |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
GS130,136..STD |
1 | ||
| Common parts | ||||
| 84731-12032 | ||||

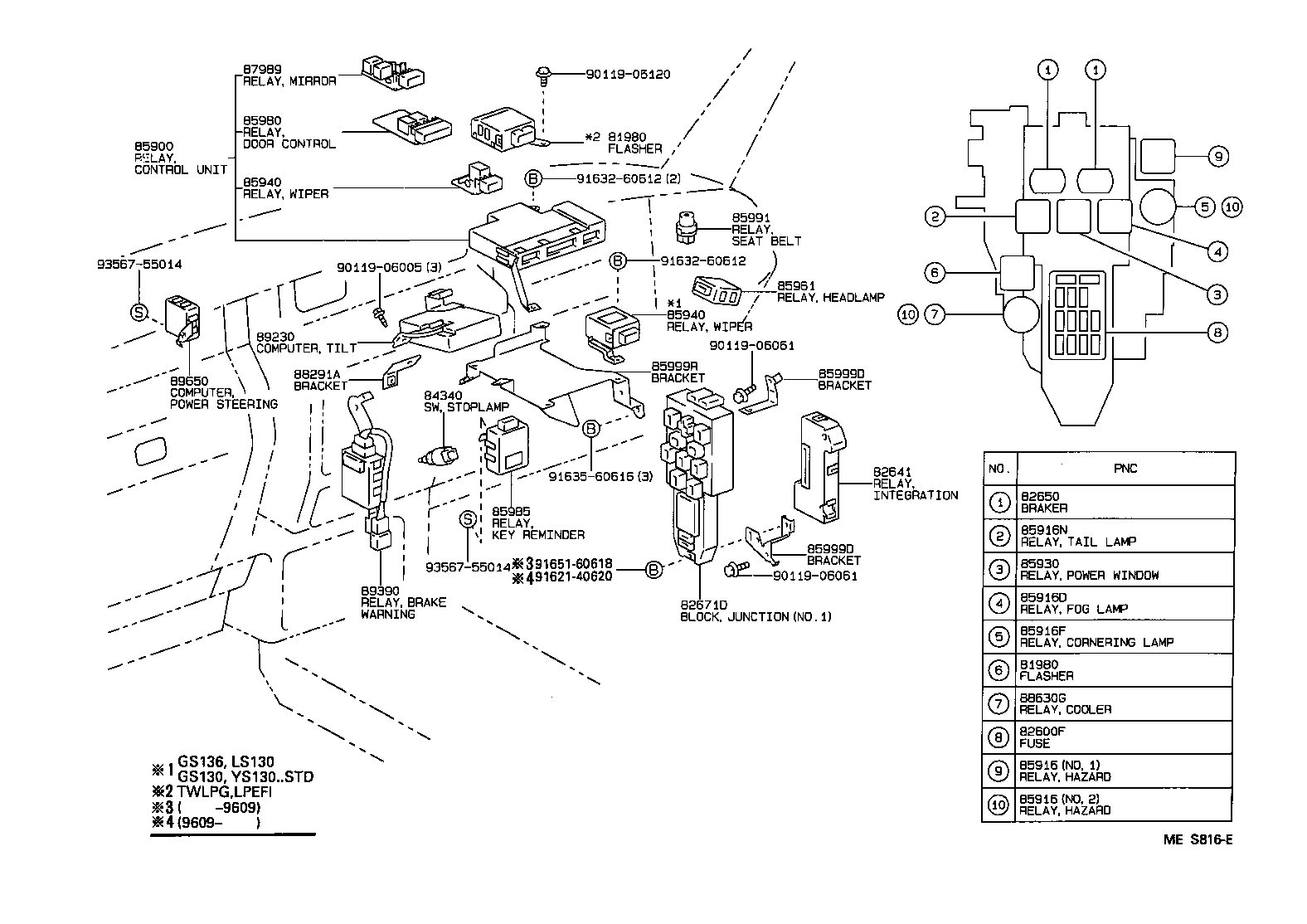

ILLUST NO. 4 OF 8(9110- )
ｶｳﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
GS13# 7.5A |
7 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30060 |
GS136,LS136..DLX,STD |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GS13#,JZS13#,LS13# 30A |
2 | ||
| 82650-20011 |
GS13#,JZS13#,LS13#,YS130 30A |
2 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
GS13#,JZS130,131,LS13#,YS130 |
1 | ||
| 84340-32090 |
GS13#,JZS130,131,LS13# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-04002 |
GS130,136..STD NO.1 |
1 | ||
| 90987-02004 |
GS130,136..STD NO.2,DENSO |
2 | ||
| 90987-02008 |
GS130,136..STD NO.2,MARUKO |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-04002 |
GS130,136..STD NO.1 |
1 | ||
| 90987-02004 |
GS130,136..STD NO.2,DENSO |
2 | ||
| 90987-02008 |
GS130,136..STD NO.2,MARUKO |
2 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02008 |
GS13#,JZS13#,LS13# |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30180 |
GS130..STD;GS136,LS136 |
1 | ||
| 85940-30180 |
GS136,LS136;GS130,YS130..STD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30180 |
GS130..STD;GS136,LS136 |
1 | ||
| 85940-30180 |
GS136,LS136;GS130,YS130..STD |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 80590-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-30261 |
GS13#,JZS13#,LS13# NO.1 J/B LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13# NO.1 J/B UPPER |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-30261 |
GS13#,JZS13#,LS13# NO.1 J/B LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13# NO.1 J/B UPPER |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-30281 |
GS13#,JZS13#,LS13# |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS136..STD;GS130,131,JZS13#..ROY,ROYG,SALEX,SDX,STD |
1 | ||
| 90987-02004 |
GS13#,YS130..HTWC,LPEFI |
1 | ||
| 90987-02004 |
YS130;GS130..(SDX,STD)..HTWC;GS131,136,JZS13#..ROY,ROYG,SALEX,STD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06120 | ||||
| 91621-40620 | ||||
| 91632-60612 | ||||
| 91635-60616 | ||||
| 91651-60618 | ||||
| 93567-55014 | ||||
ILLUST NO. 7 OF 8(9110- )
ﾙ-ﾌ,ﾄﾞｱ & ﾌﾛﾝﾄｼ-ﾄ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GS13#,JZS13#,LS13# |
2 | ||
| 84231-32040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GS13#,JZS13#,LS13# |
2 | ||
| 84231-32040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13# |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30040 |
GS130,136..4H |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-40159 | ||||
| 90168-40043 | ||||
| 90168-40079 | ||||
| 90168-60014 | ||||
| 90189-04118 | ||||
| 90189-06018 | ||||
| 93315-14014 | ||||
| 93530-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
