GS136V-AXJRK (1991)
Toyota Crown

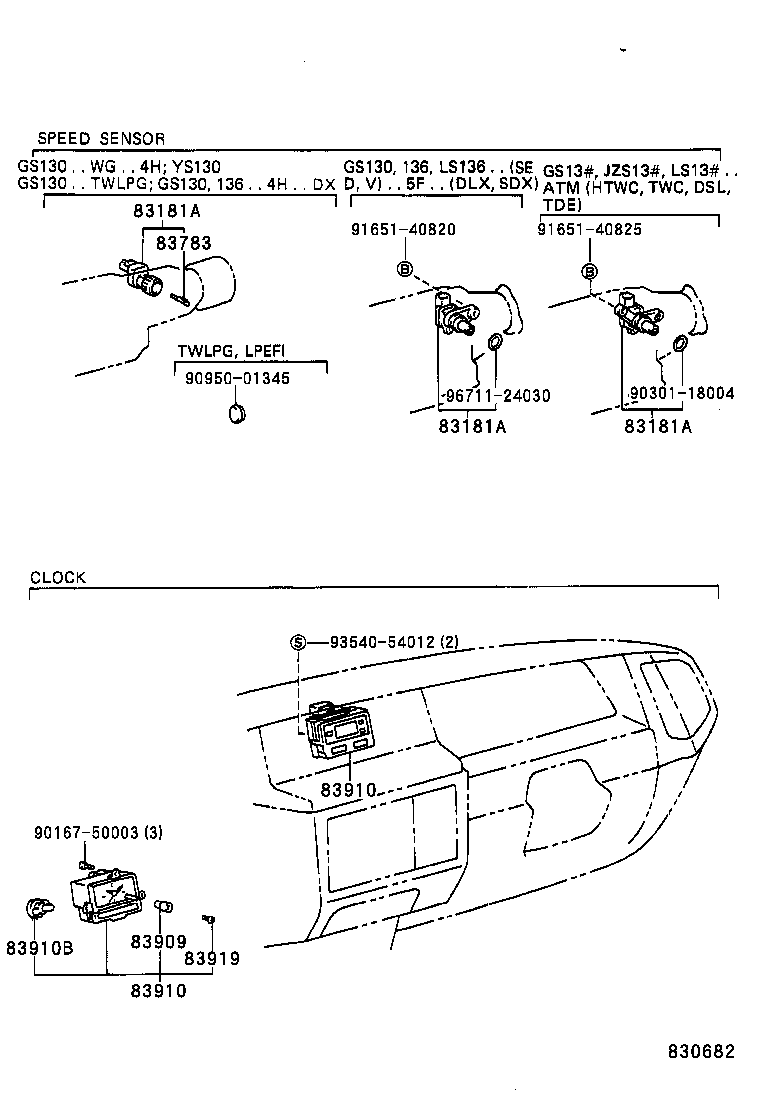

ILLUST NO. 2 OF 2(9110- )
ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｾﾝｻ & ｸﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
GS130,136..4H;GS130..5F..STD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
GS130,136..4H;GS130..5F..STD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
GS130,136..4H;GS130..5F..STD |
1 | ||
| 83783 - KEY, SPEEDMETER SENSOR | ||||
| 83783-22010 |
GS130,136..4H;GS130..5F..STD |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
YS130;GS130,136..STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30481 |
YS130;GS130,136..STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30481 |
YS130;GS130,136..STD |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02001 |
YS130;GS130,136..STD 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
YS130;GS130,136..STD |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90301-18004 | ||||
| 90950-01345 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93540-54012 | ||||
| 96711-24030 | ||||
ILLUST NO. 1 OF 2(9110- )

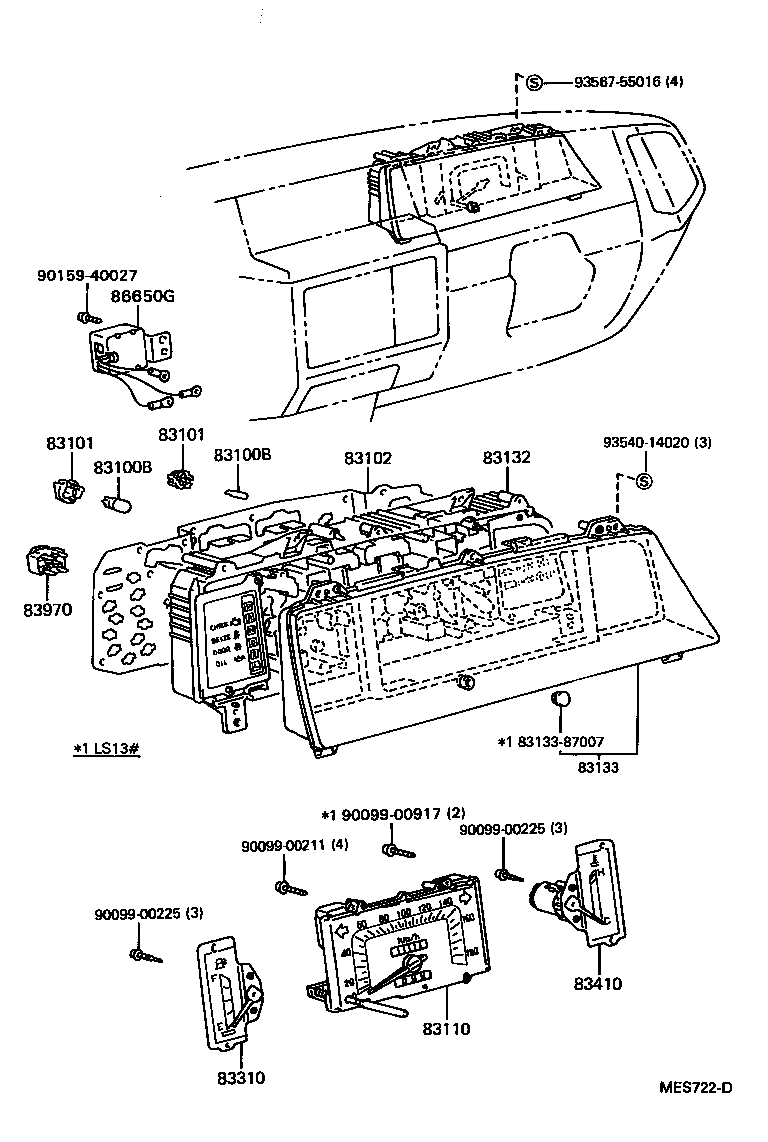

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30060 |
GS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30050 |
GS130,136,LS136 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 90981-11018 |
GS130,136,YS130..MTM..(HTWC,LPEFI) 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 83109-30050 |
GS130,136,LS136,YS130..DLX,DLXA,SDX,STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30070 |
GS130..ROY;GS130,136,LS136,YS130..MTM 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30060 |
GS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30050 |
GS130,136,LS136 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 90981-11018 |
GS130,136,YS130..MTM..(HTWC,LPEFI) 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 83109-30050 |
GS130,136,LS136,YS130..DLX,DLXA,SDX,STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30070 |
GS130..ROY;GS130,136,LS136,YS130..MTM 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS136;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101-30050 |
YS130..4H;GS130,136..STD BULB:2.0W OR 3.0W |
4 | ||
| 83101-14040 |
GS130,136,YS130..MTM..(HTWC,LPEFI) BULB:1.4W |
8 | ||
| 83101-14030 |
GS136,YS130;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS136;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101-30050 |
YS130..4H;GS130,136..STD BULB:2.0W OR 3.0W |
4 | ||
| 83101-14040 |
GS130,136,YS130..MTM..(HTWC,LPEFI) BULB:1.4W |
8 | ||
| 83101-14030 |
GS136,YS130;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-30620 |
YS130..4H;GS136..STD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A890 |
GS130,136..STD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30240 |
YS130..4H;GS136..STD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-3A250 |
YS130..4H;GS130,136..STD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A550 |
GS136..STD |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
LS130;GS13#,JZS13#,LS131..ROY,ROYG,SALEX,STD |
1 | ||
| Common parts | ||||
| 83133-87007 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

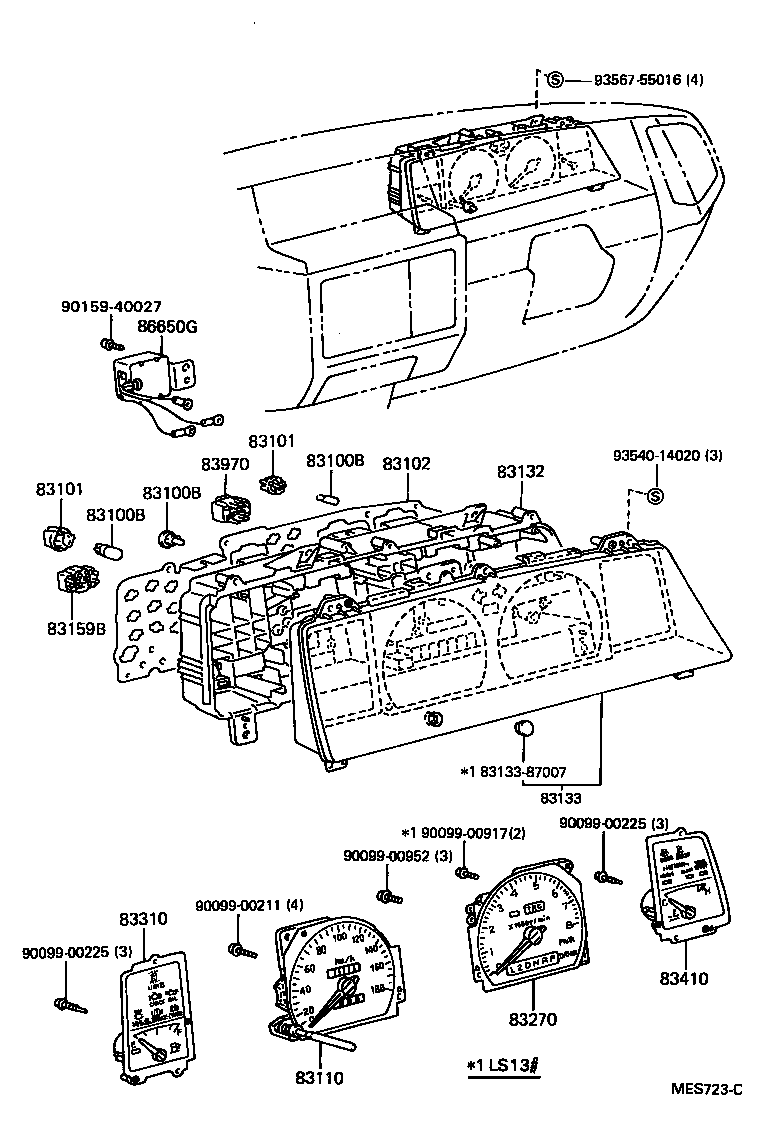

ILLUST NO. 1 OF 2(9110- )
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30060 |
GS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30050 |
GS130,136,LS136 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 90981-11018 |
GS130,136,YS130..MTM..(HTWC,LPEFI) 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 83109-30050 |
GS130,136,LS136,YS130..DLX,DLXA,SDX,STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30070 |
GS130..ROY;GS130,136,LS136,YS130..MTM 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30060 |
GS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30050 |
GS130,136,LS136 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 90981-11018 |
GS130,136,YS130..MTM..(HTWC,LPEFI) 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 83109-30050 |
GS130,136,LS136,YS130..DLX,DLXA,SDX,STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30070 |
GS130..ROY;GS130,136,LS136,YS130..MTM 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30060 |
GS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30050 |
GS130,136,LS136 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 90981-11018 |
GS130,136,YS130..MTM..(HTWC,LPEFI) 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 83109-30050 |
GS130,136,LS136,YS130..DLX,DLXA,SDX,STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30070 |
GS130..ROY;GS130,136,LS136,YS130..MTM 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS136;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101-30050 |
YS130..4H;GS130,136..STD BULB:2.0W OR 3.0W |
4 | ||
| 83101-14040 |
GS130,136,YS130..MTM..(HTWC,LPEFI) BULB:1.4W |
8 | ||
| 83101-14030 |
GS136,YS130;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS136;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83101-30050 |
YS130..4H;GS130,136..STD BULB:2.0W OR 3.0W |
4 | ||
| 83101-14040 |
GS130,136,YS130..MTM..(HTWC,LPEFI) BULB:1.4W |
8 | ||
| 83101-14030 |
GS136,YS130;GS130,LS136..DLX,SDX BULB:3.4W |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-30620 |
YS130..4H;GS136..STD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A890 |
GS130,136..STD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30240 |
YS130..4H;GS136..STD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-3A250 |
YS130..4H;GS130,136..STD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A550 |
GS136..STD |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
LS130;GS13#,JZS13#,LS131..ROY,ROYG,SALEX,STD |
1 | ||
| Common parts | ||||
| 83133-87007 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00952 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
