GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS136,LS136

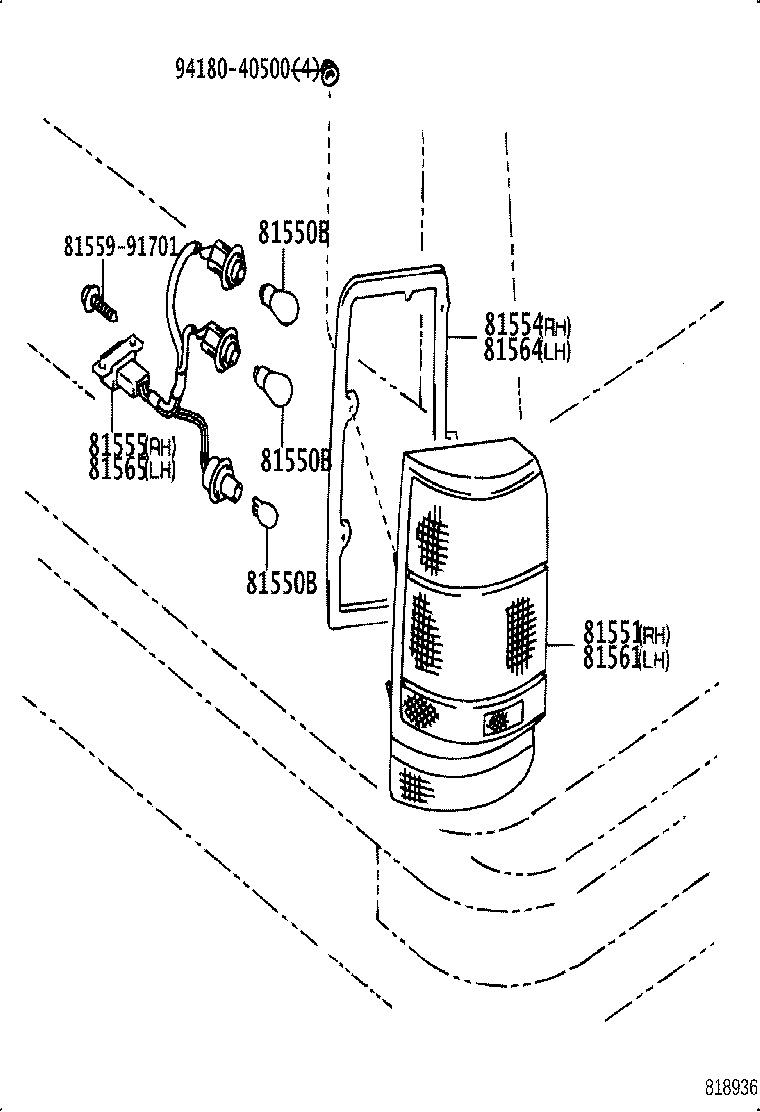

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81554 81555 8155991701 81561 81564 81565 9418040500
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

GS130..WG..SDX;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136

12V 21W

 2
99132-21210

GS136,LS136

12V 21/5W

 2
90981-11039

GS130,136,JZS130,LS130,136..V,WG

12V 16W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

GS130..WG..SDX;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136

12V 21W

 2
99132-21210

GS136,LS136

12V 21/5W

 2
90981-11039

GS130,136,JZS130,LS130,136..V,WG

12V 16W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

GS130..WG..SDX;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136

12V 21W

 2
99132-21210

GS136,LS136

12V 21/5W

 2
90981-11039

GS130,136,JZS130,LS130,136..V,WG

12V 16W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91706

GS136,LS136

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-91705

GS130,136,JZS130,LS130,136..V,WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91705

GS130,136,JZS130,LS130,136..V,WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91706

GS136,LS136

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-91705

GS130,136,JZS130,LS130,136..V,WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91705

GS130,136,JZS130,LS130,136..V,WG

 1
Common parts
81559-91701
94180-40500
