GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

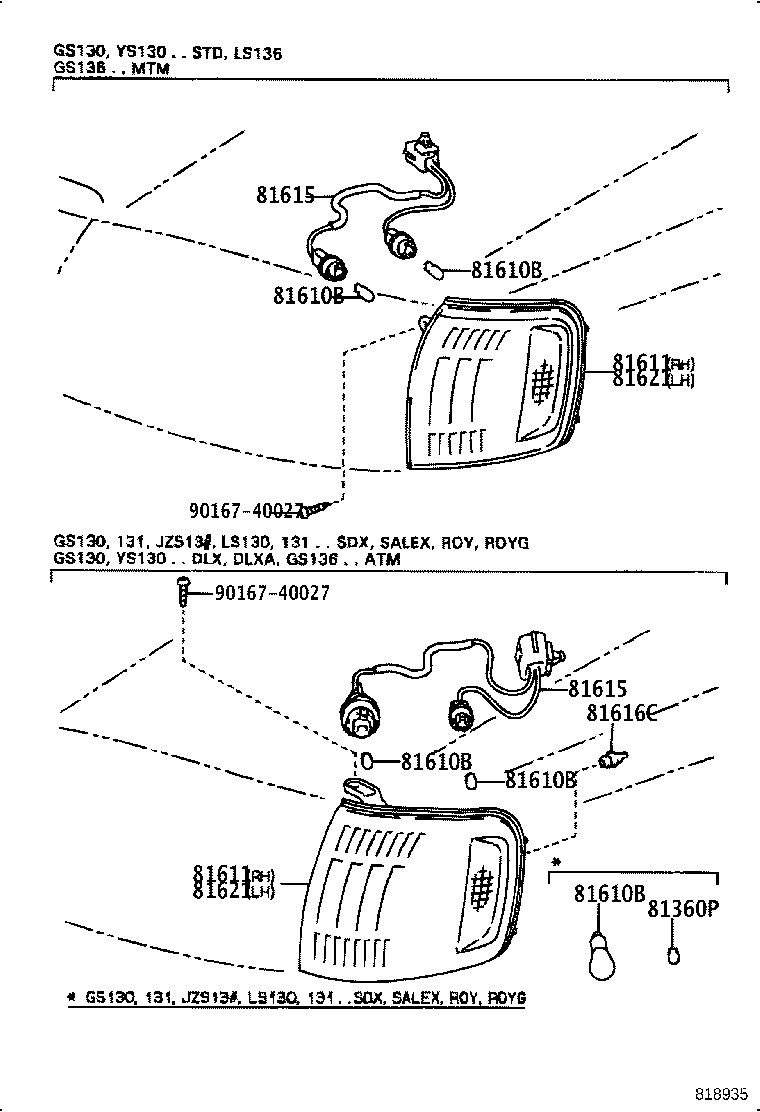

Click highlighted areas on diagram

diagram 81360P 81610B 81610B 81610B 81610B 81610B 81611 81611 81615 81615 81616C 81621 81621 9016740027 9016740027
Part # Description Qty Price
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS136;GS130,LS136..DLX,STD

12V 5W

 4
90981-12010

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS136;GS130,LS136..DLX,STD

12V 5W

 4
90981-12010

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS136;GS130,LS136..DLX,STD

12V 5W

 4
90981-12010

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS136;GS130,LS136..DLX,STD

12V 5W

 4
90981-12010

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS136;GS130,LS136..DLX,STD

12V 5W

 4
90981-12010

GS136;GS130,LS136,YS130..DLX,DLXA,STD

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-30340

GS130..STD;GS136,LS136..DLX,STD

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-30340

GS130..STD;GS136,LS136..DLX,STD

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-30340

GS130..STD;GS136,LS136..DLX,STD

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-30340

GS130..STD;GS136,LS136..DLX,STD

 2
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-30340

GS130..STD;GS136,LS136..DLX,STD

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-30340

GS130..STD;GS136,LS136..DLX,STD

 1
Common parts
90167-40027
