GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

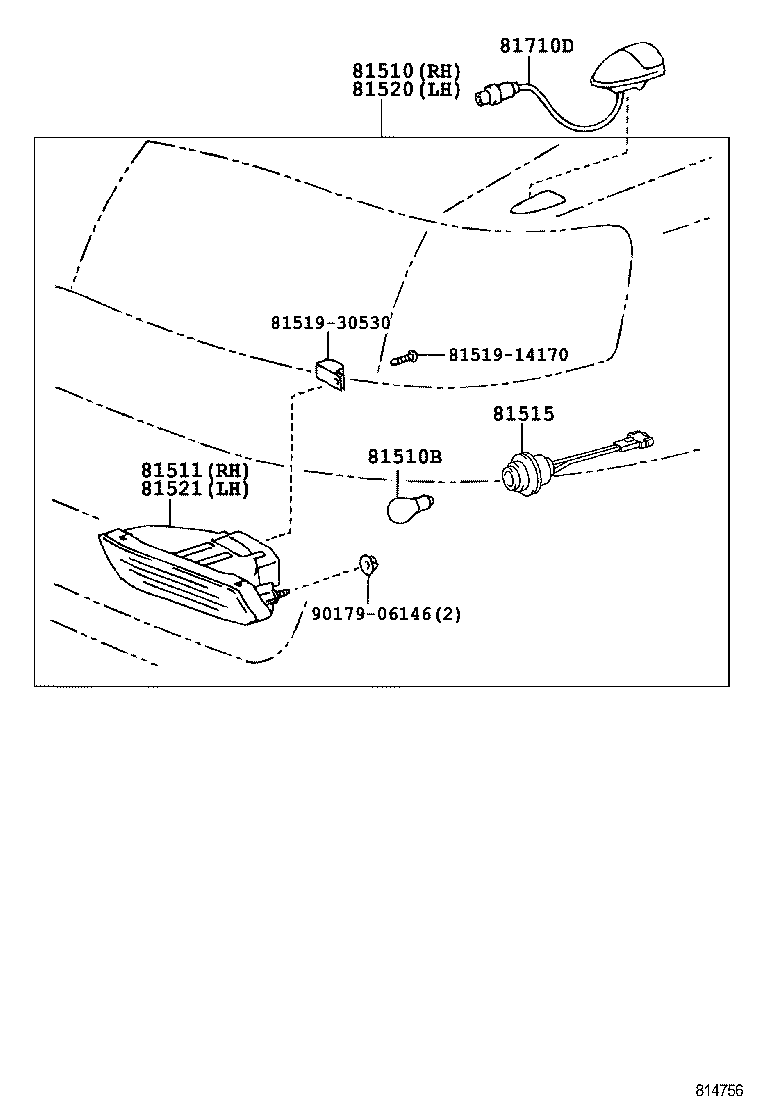

ILLUST NO. 2 OF 2(9110- )

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 8151914170 8151930530 81520 81521 81710D 9017906146
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81510-39665

GS136;GS130,LS136..DLX,STD

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

GS13#,JZS13#,LS13#

12V 21W

 2
99132-11210

GS13#,JZS13#,LS13#,YS130

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81511-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39665

GS136;GS130,LS136..DLX,STD

 1
81520-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81521-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
Common parts
81519-14170
81519-30530
90179-06146

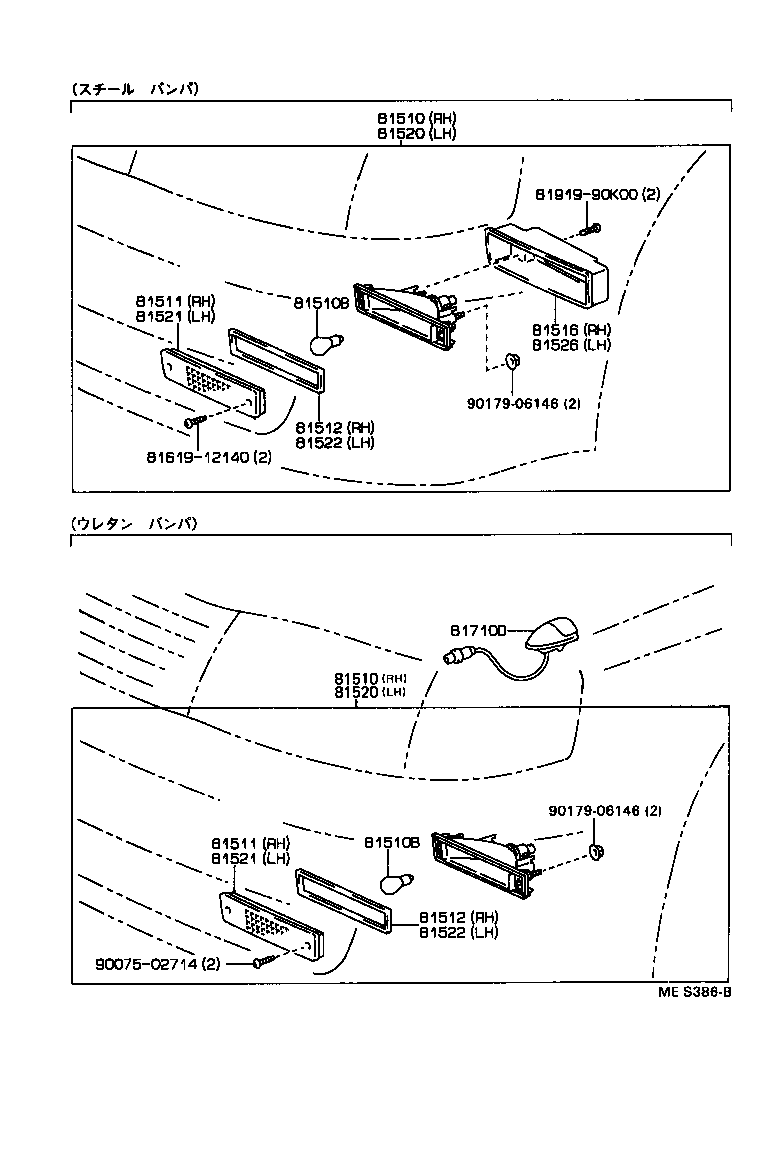

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81516 81520 81520 81521 81521 81522 81522 81526 8161912140 81710D 8191990K00 9007502714 9017906146 9017906146
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81510-39665

GS136;GS130,LS136..DLX,STD

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81510-39665

GS136;GS130,LS136..DLX,STD

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

GS13#,JZS13#,LS13#

12V 21W

 2
99132-11210

GS13#,JZS13#,LS13#,YS130

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

GS13#,JZS13#,LS13#

12V 21W

 2
99132-11210

GS13#,JZS13#,LS13#,YS130

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81511-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81511-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81512-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81512-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81516 - RIM, FRONT TURN SIGNAL LAMP, RH
81516-30480

GS136;GS130,LS136..DLX,STD

 1
81516-30480

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39665

GS136;GS130,LS136..DLX,STD

 1
81520-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39665

GS136;GS130,LS136..DLX,STD

 1
81520-39665

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81521-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81521-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81512-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-30490

GS130,136,LS130,136..DLX,SDX,STD

 1
81512-30490

GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD)

 1
81526 - RIM, FRONT TURN SIGNAL LAMP, LH
81526-30480

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
81526-30480

GS136;GS130,LS136..DLX,STD

 1
Common parts
81619-12140
81919-90K00
90075-02714
90179-06146
