GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )HTWC

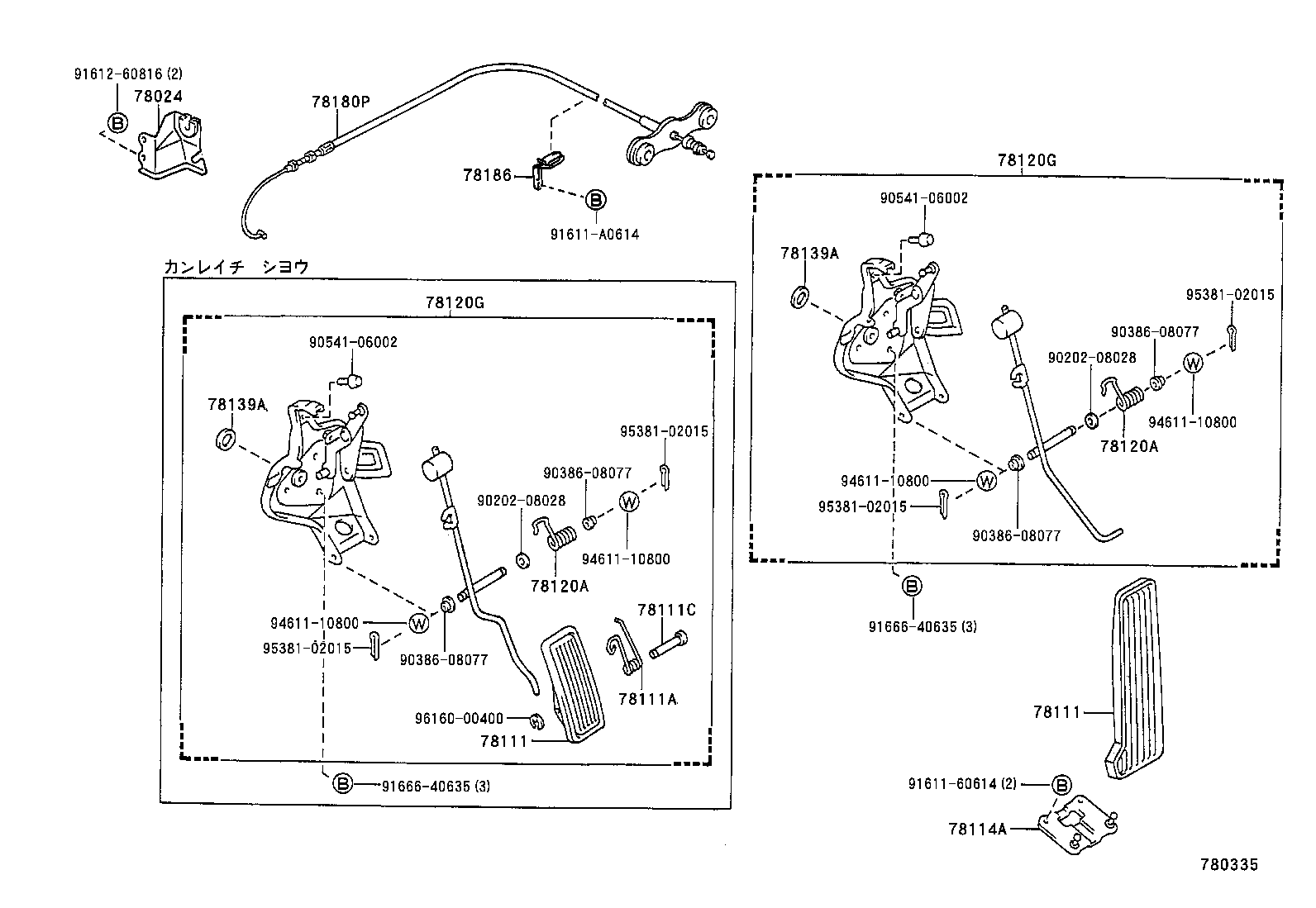

Click highlighted areas on diagram

diagram 78024 78111 78111 78111A 78111C 78114A 78120A 78120A 78120G 78120G 78139A 78139A 78180P 78186 9020208028 9020208028 9038608077 9038608077 9038608077 9038608077 9054106002 9054106002 9161160614 91611A0614 9161260816 9166640635 9166640635 9461110800 9461110800 9461110800 9461110800 9538102015 9538102015 9538102015 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30100

GS13#..HTWC

 1
78111 - PEDAL, ACCELERATOR
78111-30090

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30080

GS13#,JZS13#,LS13#

 1
78111 - PEDAL, ACCELERATOR
78111-30090

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111-30080

GS13#,JZS13#,LS13#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18071

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05043

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050

GS13#,JZS13#,LS13#

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-29010

GS130,136..MTM..HTWC

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-29010

GS130,136..MTM..HTWC

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30531

GS130,136..MTM..HTWC

 1
78120-30691

GS130,136..MTM..HTWC

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30531

GS130,136..MTM..HTWC

 1
78120-30691

GS130,136..MTM..HTWC

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2
78139-30060

GS13#,JZS13#,LS13#

 1
78139-30060

GS13#,JZS13#,LS13#,YS130

 1
78139A - SEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2
78139-30060

GS13#,JZS13#,LS13#

 1
78139-30060

GS13#,JZS13#,LS13#,YS130

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A380

GS13#..HTWC

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-30110

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC

 1
Common parts
90202-08028
90386-08077
90541-06002
91611-60614
91611-A0614
91612-60816
91666-40635
94611-10800
95381-02015
96160-00400
