GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

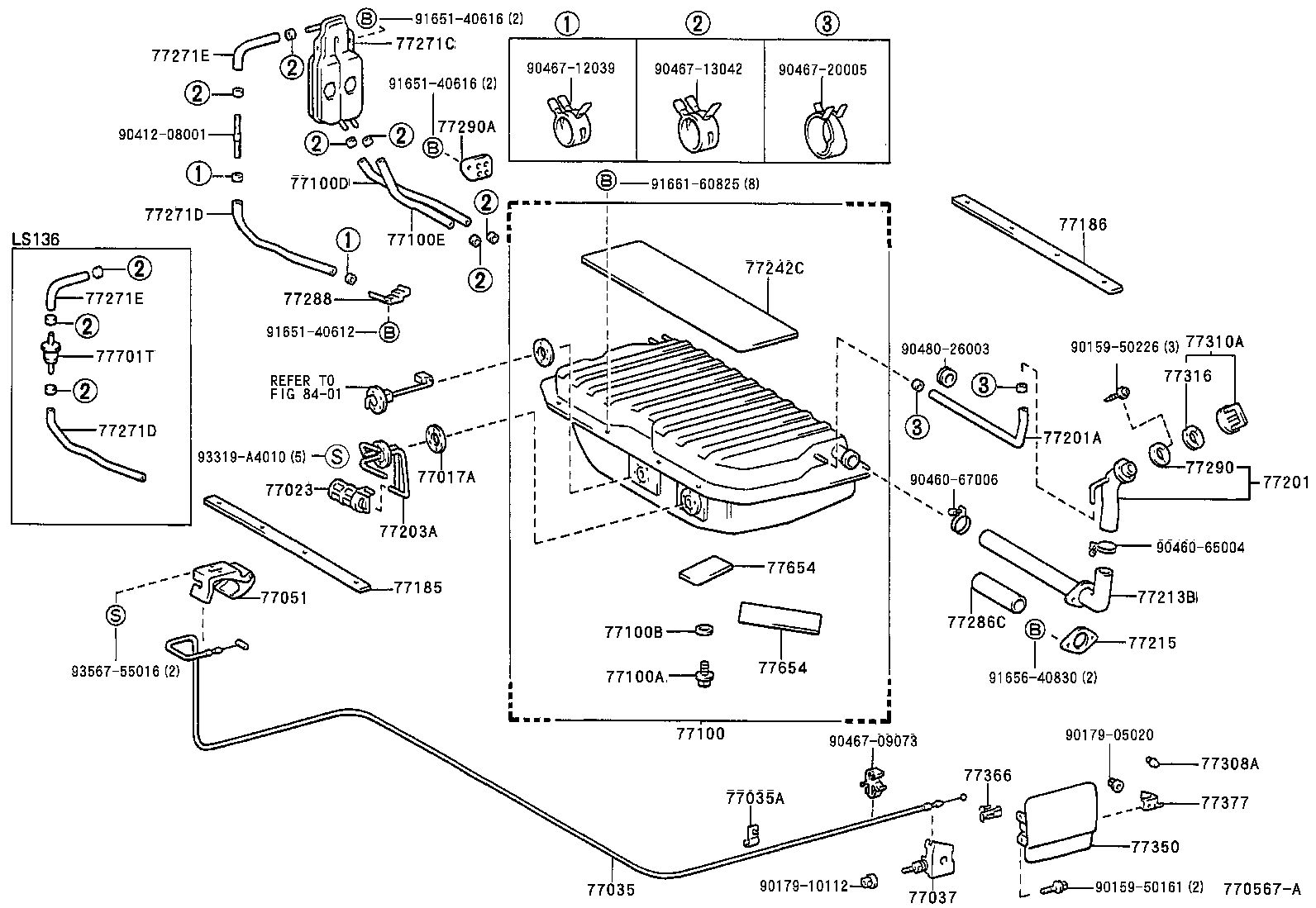

ILLUST NO. 1 OF 2(9110- )GS136,LS136

Click highlighted areas on diagram

diagram 77017A 77023 77035 77035A 77037 77051 77100 77100A 77100B 77100D 77100E 77185 77186 77201 77201A 77203A 77213B 77215 77242C 77271C 77271D 77271D 77271E 77271E 77286C 77288 77290 77290A 77308A 77310A 77316 77350 77366 77377 77654 77654 77701T 8401 9015950161 9015950226 9017905020 9017910112 9041208001 9046065004 9046067006 9046709073 9046712039 9046713042 9046720005 9048026003 9165140612 9165140616 9165140616 9165640830 9166160825 93319A4010 9356755016
Part # Description Qty Price
77017A - GASKET, FUEL TANK VENT
83361-20030

GS130,136,JZS130,LS130,136..V,WG

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-31010

GS130,136,JZS130..V,WG

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-91703

GS130,136,JZS130,LS130,136..V,WG

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
69749-20020

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC

ORANGE

 2
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-91701

GS130,136,JZS130,LS130,136..V,WG

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060J0

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC

DK.BLUE,TRIM8#

 1
77100 - TANK ASSY, FUEL
77001-39145

GS136,LS136

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

GS136,LS136

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

GS13#,JZS131,133,135,LS13#..(SED,V)..(DSL,HTWC,TDEC,TWC)

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95333-08060

GS136,LS136

*H,L=550,内径=7.6

 1
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90445-14106

GS136,LS136

長さ=530

 1
77185 - SHIM, FUEL TANK SET, FRONT
77185-91701

GS136,LS136

 1
77186 - SHIM, FUEL TANK SET, REAR
77186-91701

GS136,LS136

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-91707

GS136,LS136

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22022

GS136,LS136

長さ=590

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-31040

GS136

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-91701

GS136,LS136

 1
77215 - PLATE, FUEL TANK FILLER PIPE FLANGE
77215-91701

GS136,LS136

 1
77242C - PACKING, FUEL TANK SET, UPPER
77242-91501

GS130,136,JZS130,LS130,136..V,WG

 1
77271C - SEPARATOR, FUEL VAPOR LIQUID
77271-91701

GS130,136,JZS130,LS130,136..V,WG

 1
77271D - HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID)
95333-06060

GS130,136,JZS130,LS130,136..V,WG

 1
77271D - HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID)
95333-06060

GS130,136,JZS130,LS130,136..V,WG

 1
77271E - HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID)
95333-08020

GS130,136,JZS130..V,WG

 1
77271E - HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID)
95333-08020

GS130,136,JZS130..V,WG

 1
77286C - PROTECTOR, FUEL TANK INLET HOSE
77286-91501

GS136,LS136

 1
77288 - CLAMP, BREATHER HOSE
77288-91701

GS136,LS136

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-22030

GS130,136,JZS130,LS130,136..V,WG

 1
77290A - GROMMET ASSY, FUEL HOSE
77290-91702

GS136,LS136

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003

GS130,136,JZS130,LS130,136..V,WG

 2
77310A - CAP ASSY, FUEL TANK
77310-16011

GS13#,JZS13#..HTWC,TWC

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-31010

GS130,136,JZS130,LS130,136..V,WG

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

GS130,136,JZS130,LS130,136..V,WG

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030

GS130,136,JZS130,LS130,136..V,WG

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-91602

GS136,LS136

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-91602

GS136,LS136

 2
Common parts
90159-50161
90159-50226
90179-05020
90179-10112
90412-08001
90460-65004
90460-67006
90467-09073
90467-12039
90467-13042
90467-20005
90480-26003
91651-40612
91651-40616
91656-40830
91661-60825
93319-A4010
93567-55016
Linked diagrams
8401

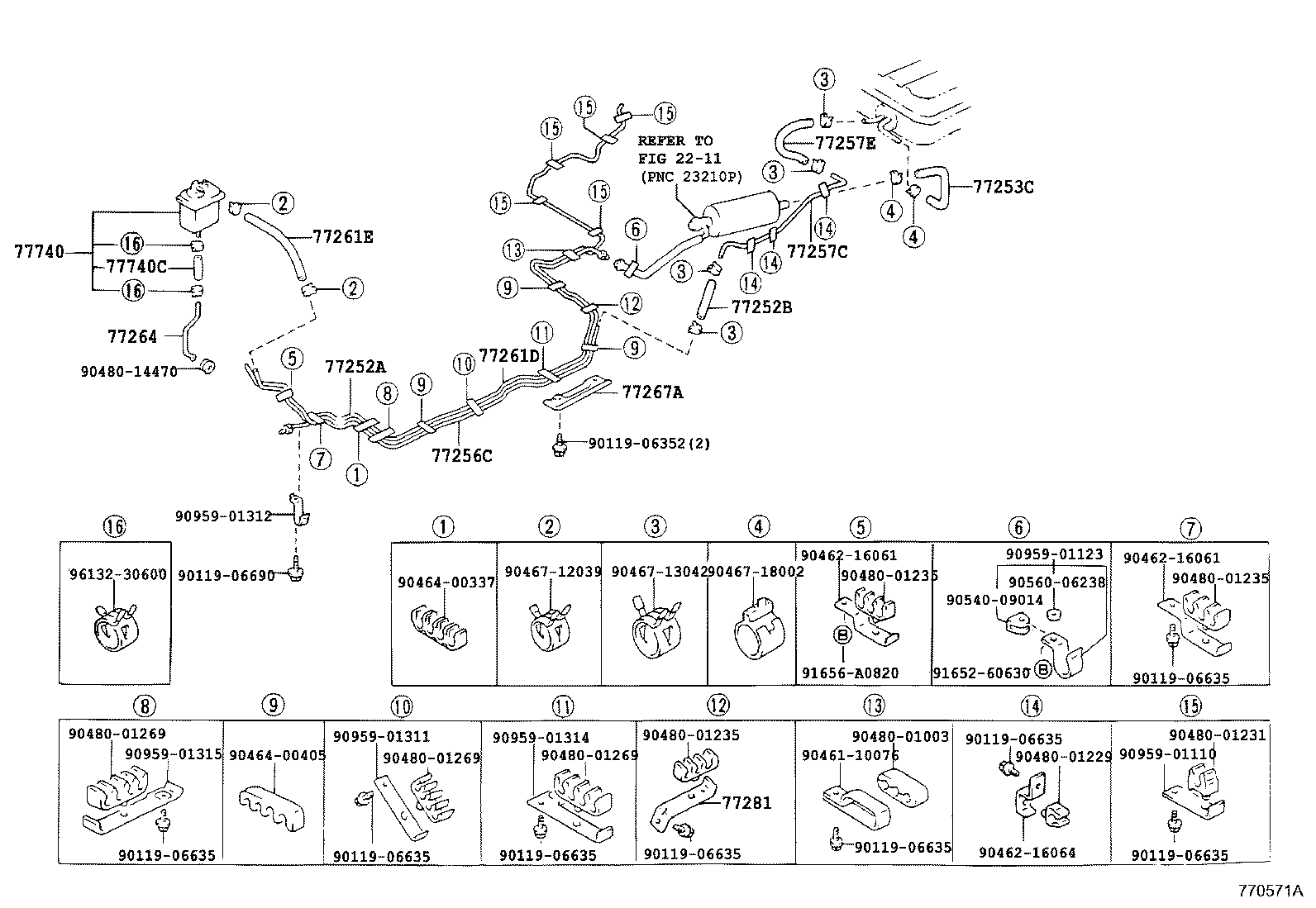

ILLUST NO. 2 OF 2(9110- )GS136

Click highlighted areas on diagram

diagram 2211 77252A 77252B 77253C 77256C 77257C 77257E 77261D 77261E 77264 77267A 77281 77740 77740C 9011906352 9011906635 9011906635 9011906635 9011906635 9011906635 9011906635 9011906635 9011906635 9011906690 9046110076 9046216061 9046216061 9046216064 9046400337 9046400405 9046712039 9046713042 9046718002 9048001003 9048001229 9048001231 9048001235 9048001235 9048001235 9048001269 9048001269 9048001269 9048014470 9054009014 9056006238 9095901110 9095901123 9095901311 9095901312 9095901314 9095901315 9165260630 91656A0820 9613230600
Part # Description Qty Price
77252A - TUBE, FUEL MAIN, NO.2
77252-91706

GS136

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95333-08020

GS136

*H,L=140

 1
77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)
77259-91707

GS136

 1
77256C - TUBE, FUEL RETURN, NO.2
77256-91701

GS136

 1
77257C - TUBE, FUEL RETURN, NO.3
77257-91703

GS136

 1
77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE)
95333-08030

GS136

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-91701

GS136

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

GS130,136,JZS130..V,WG

*H,L=220

 1
77264 - TUBE, CANISTER TO FRONT SIDE MEMBER
77264-30020

GS13#,JZS13#..HTWC,TWC

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-30050

GS13#,JZS13#,LS13#

 1
77267-30050

GS13#,JZS13#,LS13#,YS130

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-91702

GS136,LS136

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30170

GS13#,JZS13#..HTWC,TWC

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90445-12119

GS13#,JZS13#..HTWC,TWC

長さ=100

 1
Common parts
90119-06352
90119-06635
90119-06690
90461-10076
90462-16061
90462-16064
90464-00337
90464-00405
90467-12039
90467-13042
90467-18002
90480-01003
90480-01229
90480-01231
90480-01235
90480-01269
90480-14470
90540-09014
90560-06238
90959-01110
90959-01123
90959-01311
90959-01312
90959-01314
90959-01315
91652-60630
91656-A0820
96132-30600
Linked diagrams
2211
