GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )V,WG

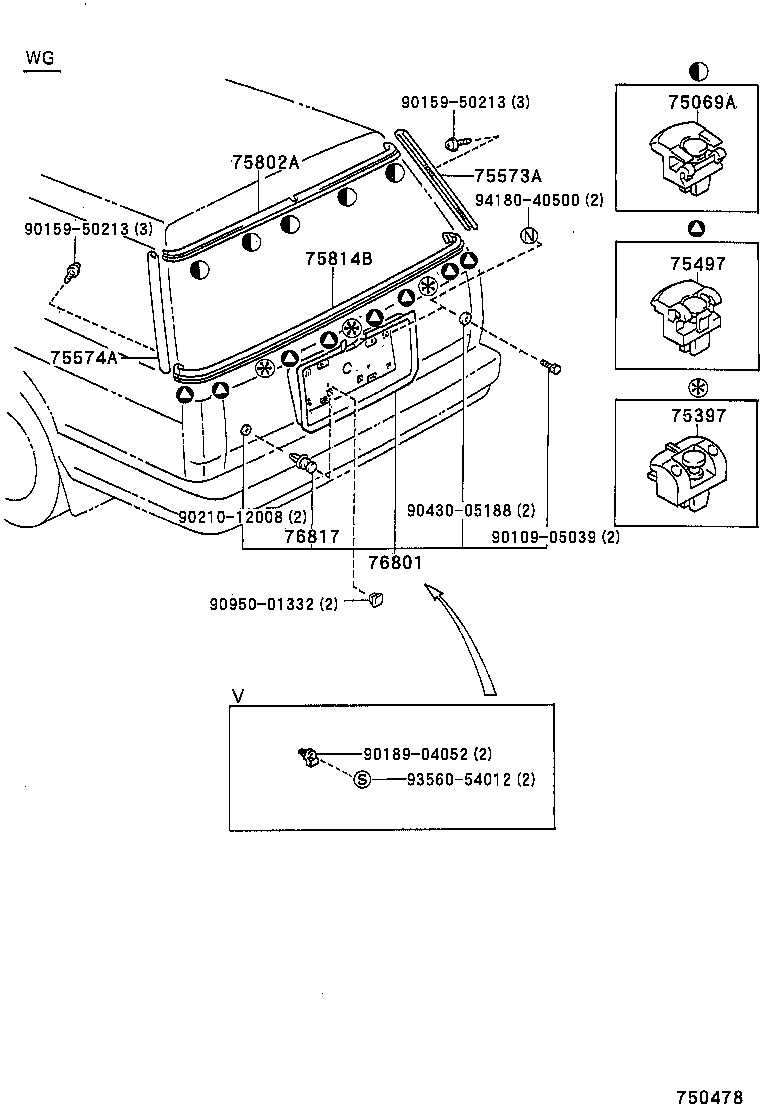

Click highlighted areas on diagram

diagram 75069A 75397 75497 75573A 75574A 75802A 75814B 76801 76817 9010905039 9015950213 9015950213 9018904052 9021012008 9043005188 9095001332 9356054012 9418040500
Part # Description Qty Price
75069A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
75069-91701

GS130,136,JZS130,LS130,136..V,WG

 5
75397 - CLIP, BACK DOOR MOULDING, NO.3
75397-91702

GS130,136,JZS130,LS130,136..V,WG

 3
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-91702

GS130,136,JZS130,LS130,136..V,WG

 8
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-91702

GS130,136,JZS130,LS130,136..V,WG

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-91702

GS130,136,JZS130,LS130,136..V,WG

 1
75802A - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE UPPER
75802-91703

GS136,LS136..DLX,STD

 1
75802-91704

GS136,LS136..DLX,STD

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
75814B - MOULDING, BACK DOOR, OUTSIDE LOWER
75814-31010

GS136,LS136

 1
Common parts
90109-05039
90159-50213
90189-04052
90210-12008
90430-05188
90950-01332
93560-54012
94180-40500
