GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

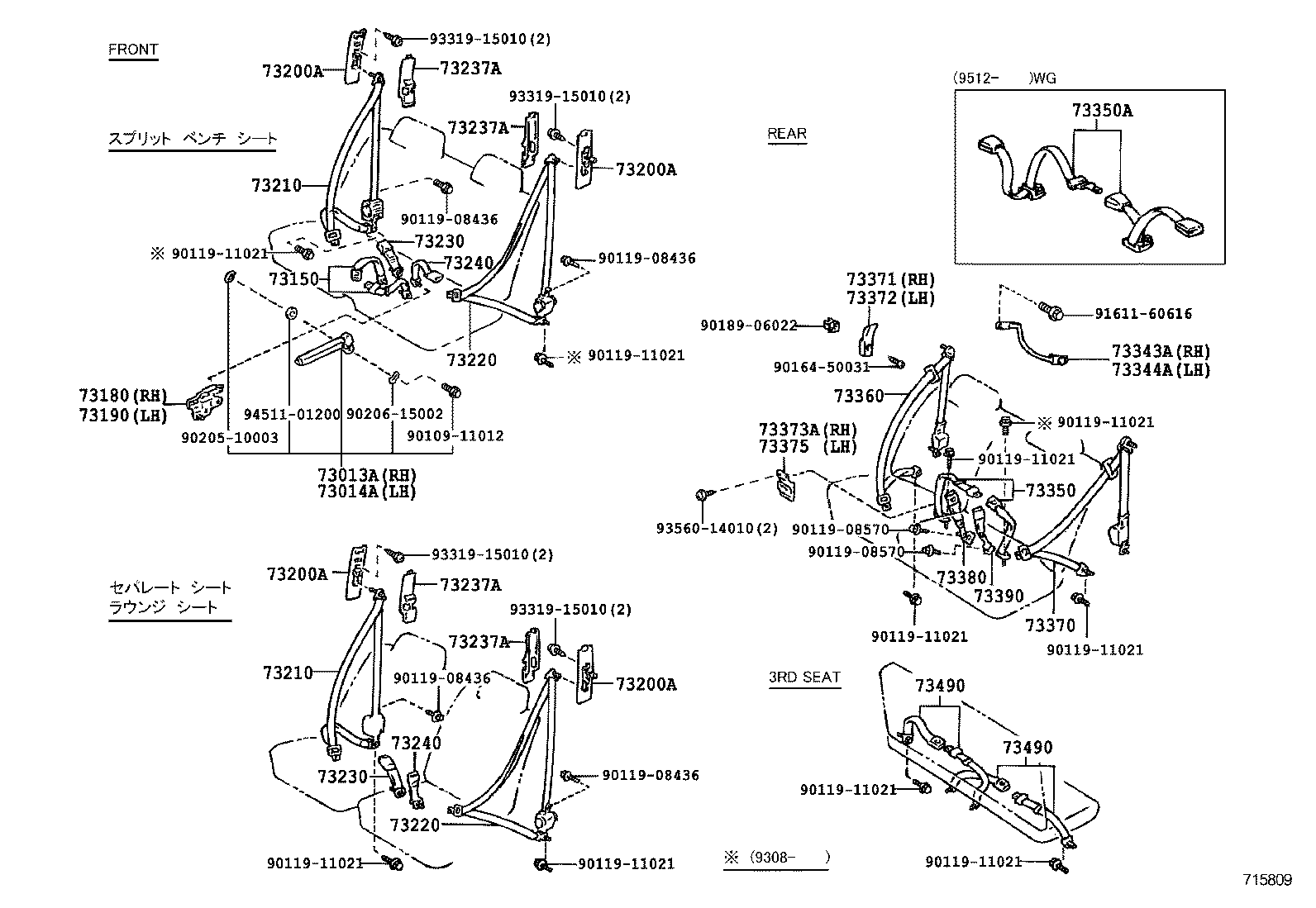

Click highlighted areas on diagram

diagram 73013A 73014A 73150 73180 73190 73200A 73200A 73200A 73200A 73210 73210 73220 73220 73230 73230 73237A 73237A 73237A 73237A 73240 73240 73343A 73344A 73350 73350A 73360 73370 73371 73372 73373A 73375 73380 73390 73490 73490 9010911012 9011908436 9011908436 9011908436 9011908436 9011908570 9011908570 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9016450031 9018906022 9020510003 9020615002 9161160616 9331915010 9331915010 9331915010 9331915010 9356014010 9451101200
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-30030J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-30030J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-30070J0

GS130,136..4H..(DLX,STD)

DARK BLUE,TRIM8#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-30040

GS130,136..4H..(DLX,STD)

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-30040

GS130,136..4H..(DLX,STD)

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30530J0

GS136;GS130,LS136,YS130..DLX,DLXA,STD

DK.BLUE,TRIM8#

 1
73210-30530J0

GS136;GS130,LS136..DLX,STD

DK.BLUE,TRIM8#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30530J0

GS136;GS130,LS136,YS130..DLX,DLXA,STD

DK.BLUE,TRIM8#

 1
73210-30530J0

GS136;GS130,LS136..DLX,STD

DK.BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30420J0

GS136;GS130,LS136..DLX,STD

DK.BLUE,TRIM8#

 1
73220-30420J0

GS136;GS130,LS136,YS130..DLX,DLXA,STD

DK.BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30420J0

GS136;GS130,LS136..DLX,STD

DK.BLUE,TRIM8#

 1
73220-30420J0

GS136;GS130,LS136,YS130..DLX,DLXA,STD

DK.BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30600J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30600J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73237A - COVER, SHOULDER BELT ANCHOR
73237-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-30010J0

GS13#,JZS13#,LS13#

LI.BLUE,TRIM8#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-30340J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-30340J0

GS130,136..4H..(DLX,STD)

DK.BLUE,TRIM8#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-31030J0

GS136,LS136

DK.BLUE,TRIM8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-31030J0

GS130,136,LS136..V,WG

DK.BLUE,TRIM8#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-31030J0

GS130,136,JZS130,LS130,136..(V,WG)..(DLX,SALEX,SDX,STD)

DK.BLUE,TRIM8#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-31010J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

DK.BLUE,TRIM8#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-31010J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

DK.BLUE,TRIM8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-31060J0

GS136,LS136

DK.BLUE,TRIM8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-31060J0

GS136,LS136

DK.BLUE,TRIM8#

 1
Common parts
90109-11012
90119-08436
90119-08570
90119-11021
90164-50031
90189-06022
90205-10003
90206-15002
91611-60616
93319-15010
93560-14010
94511-01200
