GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(9110- )

Click highlighted areas on diagram

diagram 72030 72040 72152A 72152A 72159B 72159B 72205C 72205C 72206A 72206A 8513 8513 9011908076 9011908076 9017910105 9017910105 9161160612 9161160612 9161160816 9161160816
Part # Description Qty Price
Common parts
90119-08076
90179-10105
91611-60612
91611-60816
Linked diagrams
8513

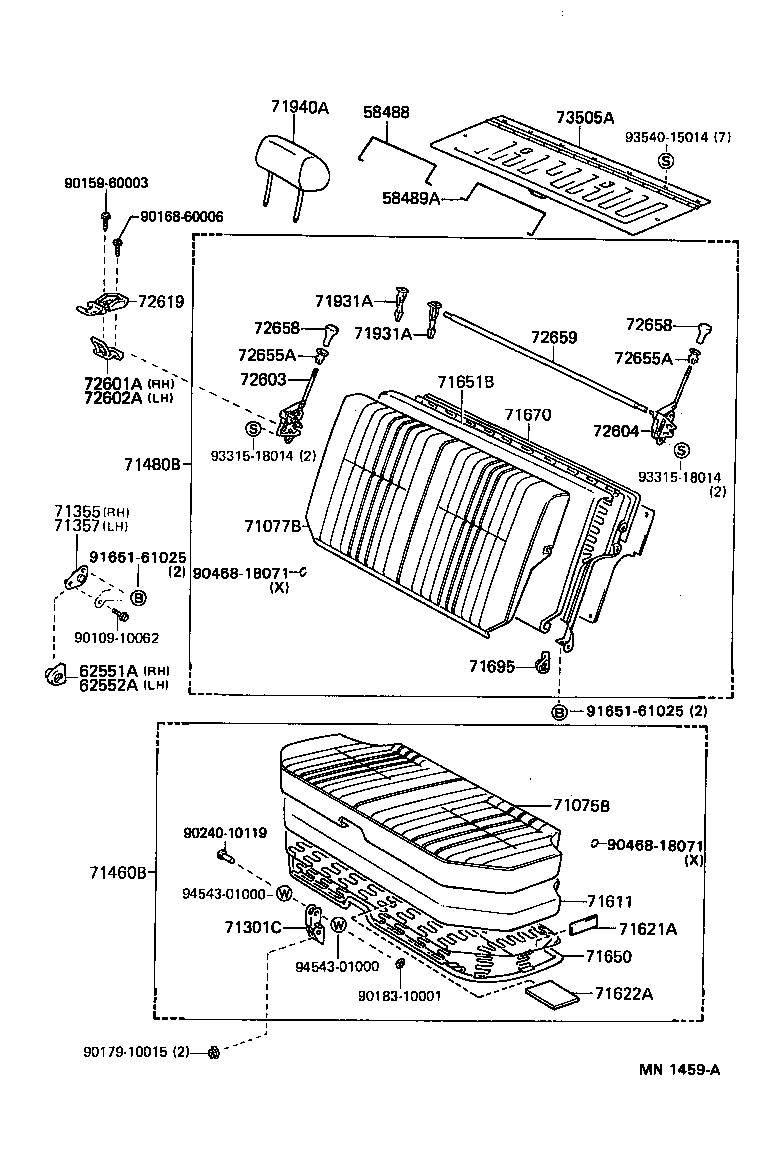

ILLUST NO. 1 OF 4(9110- )GS136..4H

Click highlighted areas on diagram

diagram 58488 58489A 62551A 62552A 71075B 71077B 71301C 71355 71357 71460B 71480B 71611 71621A 71622A 71650 71651B 71670 71695 71931A 71931A 71940A 72601A 72602A 72603 72604 72619 72655A 72655A 72658 72658 72659 73505A 9010910062 9015960003 9016860006 9017910015 9018310001 9024010119 9046818071 9046818071 9165161025 9165161025 9331518014 9331518014 9354015014 9454301000 9454301000
Part # Description Qty Price
58488 - SPRING, DECK BOARD, RH
58488-91703

GS130,136,LS136..V,WG

 1
58489A - SPRING, DECK BOARD, LH
58489-91703

GS130,136,LS136..V,WG

 1
62551A - COVER, REAR SEAT SIDE, RH
62551-91701

GS136,LS136

 1
62552A - COVER, REAR SEAT SIDE, LH
62552-91701

GS136,LS136

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-31100J0

GS136..STD

DK.BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-91752J1

GS136..STD

DK.BLUE,TRIM8#

 1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-91703

GS130,136,LS136..V,WG

 2
71355 - PLATE, REAR SEAT BACK HINGE, OUTER RH
71355-91702

GS136,LS136

 1
71357 - PLATE, REAR SEAT BACK HINGE, OUTER LH
71357-91702

GS136,LS136

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-31100J0

GS136..STD

***,DK.BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-31120J0

GS136..STD

***,DK.BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71503-91704

GS130,136,LS136..V,WG

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-91701

GS130,136,LS136..V,WG

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-91701

GS130,136,LS136..V,WG

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-91708

GS136,LS136

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-91711

GS136,LS136

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-31040

GS136..4H

 1
71695 - PROTECTOR, REAR SEAT BACK
71695-91701

GS130,136,LS136..V,WG

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040J0

GS130,LS130..WG;GS130,JZS131..ROY;GS136,JZS130,133,135,LS136

ﾛｯｸ無,DARK BLUE,TRIM8#

 2
71930-12070J0

GS130,LS130..WG;GS130,JZS131..ROY;GS136,JZS130,133,135,LS136

ﾛｯｸ付,DARK BLUE,TRIM8#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040J0

GS130,LS130..WG;GS130,JZS131..ROY;GS136,JZS130,133,135,LS136

ﾛｯｸ無,DARK BLUE,TRIM8#

 2
71930-12070J0

GS130,LS130..WG;GS130,JZS131..ROY;GS136,JZS130,133,135,LS136

ﾛｯｸ付,DARK BLUE,TRIM8#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-30760J0

GS136,LS136

DK.BLUE,TRIM8#

 2
71910-30760J1

GS136,LS136

DK.BLUE,TRIM8#

 2
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-91701

GS130,136,LS136..V,WG

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-91701

GS130,136,LS136..V,WG

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-91702

GS130..WG;GS136..4H

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-91702

GS130..WG;GS136..4H

 1
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72619-14011J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

DK.BLUE,TRIM8#

 2
72655A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-20020J0

GS136..4H;GS130..WG..SDX

DK.BLUE,TRIM8#

 2
72655A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-20020J0

GS136..4H;GS130..WG..SDX

DK.BLUE,TRIM8#

 2
72658 - KNOB, REAR SEAT HANDLE
72658-91701J0

GS136..4H;GS130..WG..SDX

DK.BLUE,TRIM8#

 2
72658 - KNOB, REAR SEAT HANDLE
72658-91701J0

GS136..4H;GS130..WG..SDX

DK.BLUE,TRIM8#

 2
72659 - ROD, REAR SEAT BACK LOCK CONNECTING
72659-91701

GS130..WG;GS136..4H

 1
73505A - FLOOR SUB-ASSY, REAR SEAT SUB
73505-91702

GS136,LS136

 1
Common parts
90109-10062
90159-60003
90168-60006
90179-10015
90183-10001
90240-10119
90468-18071
91651-61025
93315-18014
93540-15014
94543-01000
