GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

Click highlighted areas on diagram

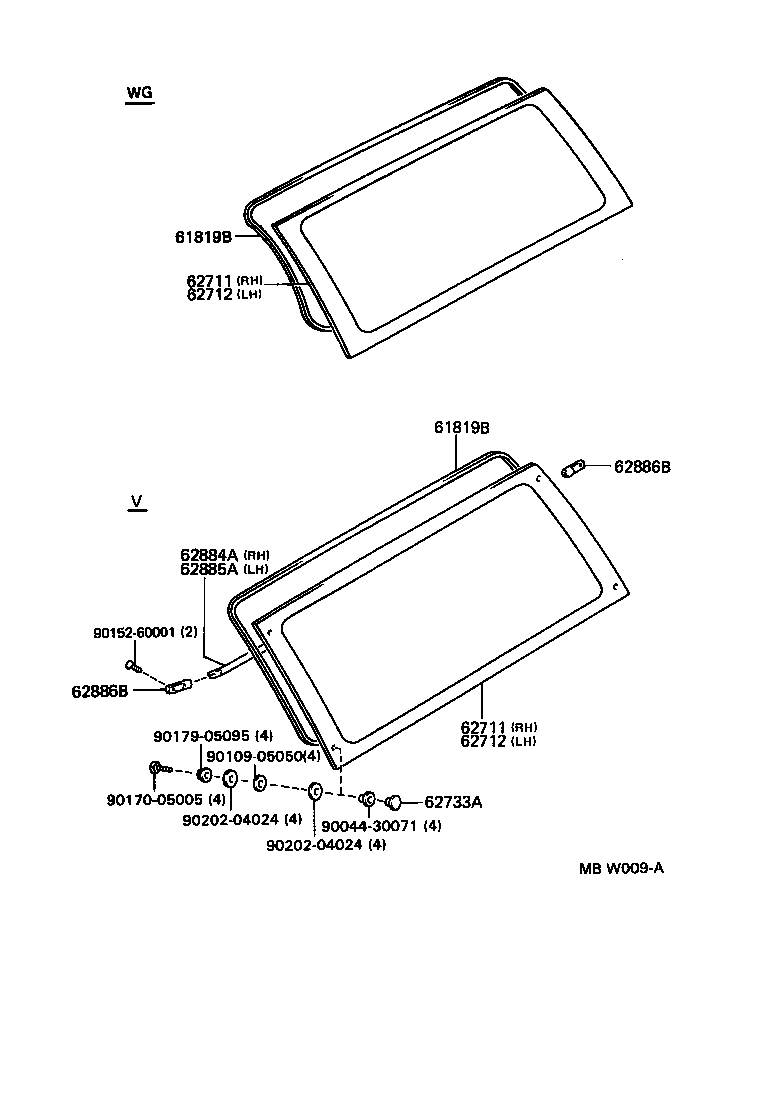

diagram 61819B 61819B 62711 62711 62712 62712 62733A 62884A 62885A 62886B 62886B 9004430071 9010905050 9015260001 9017005005 9017905095 9020204024 9020204024
Part # Description Qty Price
61819B - SEAL, QUARTER WINDOW REAR SHIELD
61819-91703

GS130,136,JZS130,LS130,136..V,WG

 2
61819B - SEAL, QUARTER WINDOW REAR SHIELD
61819-91703

GS130,136,JZS130,LS130,136..V,WG

 2
62711 - GLASS, QUARTER WINDOW, RH
62711-91711

GS136..STD

*TEM,厚さ=3.5

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-91711

GS136..STD

*TEM,厚さ=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-91711

GS136..STD

*TEM,厚さ=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-91711

GS136..STD

*TEM,厚さ=3.5

 1
62733A - RETAINER, QUARTER WINDOW HINGE
62733-87201

GS136,LS136

 8
62884A - GUARD, QUARTER WINDOW, RH
62884-91704

GS136,LS136

 1
62885A - GUARD, QUARTER WINDOW, LH
62885-91703

GS136,LS136

 1
62886B - SUPPORT, SIDE WINDOW GUARD
62886-91701J0

GS136,LS136

LI.BLUE,TRIM8#

 4
62886B - SUPPORT, SIDE WINDOW GUARD
62886-91701J0

GS136,LS136

LI.BLUE,TRIM8#

 4
Common parts
90044-30071
90109-05050
90152-60001
90170-05005
90179-05095
90202-04024
