GS136V-AXJRK (1991)
Toyota Crown
ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57411-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57412-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-30031 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57421-30031 |
GS13#,JZS13#,LS13# |
1 | ||
| 57422 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-30031 |
GS13#,JZS13#,LS13# |
1 | ||
| 57422-30031 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57445 - REINFORCEMENT, NO.5 BODY MOUNTING, RH | ||||
| 57445-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57445-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57446 - REINFORCEMENT, NO.5 BODY MOUNTING, LH | ||||
| 57446-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57446-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57455A - BRACKET, FRONT FLOOR CROSSMEMBER | ||||
| 57455-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57455-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH | ||||
| 57457-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57457-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57458-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-91702 |
GS136,LS136 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57467-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57468-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57469-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 57478A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57478-91702 |
GS136,LS136 |
1 | ||
| 57479A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57479-91703 |
GS136,LS136 |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-30020 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 57505-30020 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30271 |
GS130,136,JZS13#..4H,4HC |
1 | ||
| 58111-30271 |
GS130,136,JZS13#,YS130..4H,4HC |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS13#,JZS13#,LS13#,YS130 ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58131-14030 |
GS13#,JZS13#,LS13# ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58164-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-30070 |
GS136..4H;GS130,JZS130,LS130..4FC,4H,4HC |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58191-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-30031 |
JZS131,133,135..ROY,ROYG;GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 58215-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 58216-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58241-30031 |
GS136,LS136 |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58242-30041 |
GS136,LS136 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-91705 |
GS130,136,LS136..V,WG |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-91705 |
GS130,136,LS136..V,WG |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-30050 |
GS130,136..4H |
1 | ||
| 58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 | ||||
| 58265-30030 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 58265-30030 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-30100 |
GS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58271-30100 |
YS130;GS130..4FC,5F;GS130..SED..4H..HTWC;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58272-30100 |
GS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58272-30100 |
YS130;GS130..4FC,5F;GS130..SED..4H..HTWC;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 58368-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS136,LS136 |
2 | ||
| 58369-30040 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS136,LS136 |
2 | ||
| 58369-30040 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ A |
1 | ||
| Common parts | ||||
| 83791-30050 | ||||
| 90119-06506 | ||||
| 90176-05007 | ||||
| 90176-05013 | ||||
| 90463-12020 | ||||
| 90467-10070 | ||||
| 90950-01167 | ||||
| 90950-01269 | ||||
| 90950-01311 | ||||
| 90950-01370 | ||||
| 90950-01453 | ||||
| 90950-01611 | ||||
| 90950-01867 | ||||
| 90950-06001 | ||||
| 90959-01117 | ||||
| 91651-40614 | ||||
| 91661-60616 | ||||

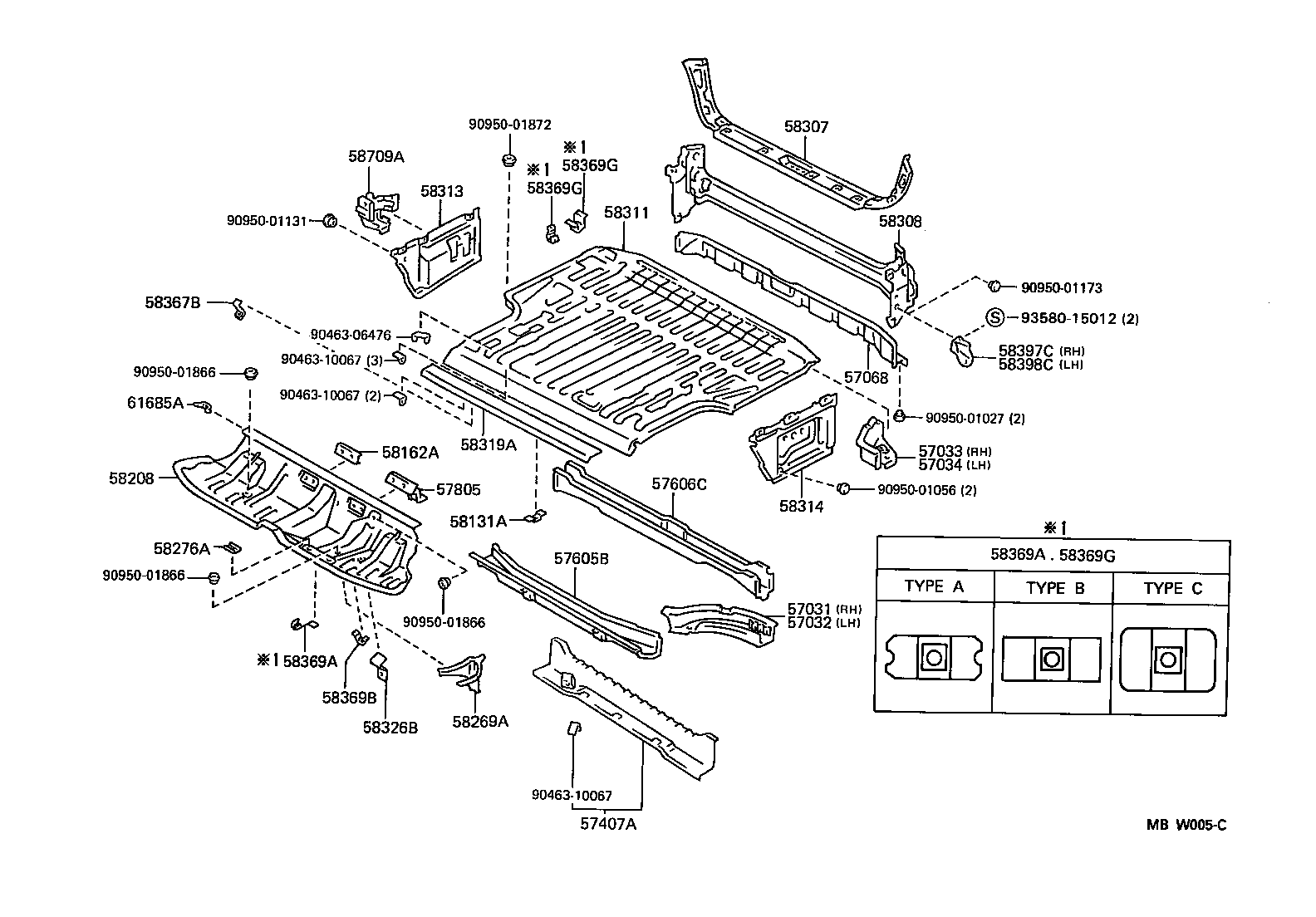

ILLUST NO. 2 OF 2(9110- )GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57031 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH | ||||
| 57031-31010 |
GS136,LS136 |
1 | ||
| 57032 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH | ||||
| 57032-31010 |
GS136,LS136 |
1 | ||
| 57033 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, RH | ||||
| 57033-31010 |
GS136,LS136 |
1 | ||
| 57034 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, LH | ||||
| 57034-31010 |
GS136,LS136 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57659-91703 |
GS136,LS136 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-91704 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-91704 |
GS136,LS136 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-91704 |
GS136,LS136 |
1 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57805-31020 |
GS136,LS136 |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS13#,JZS13#,LS13#,YS130 ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58131-14030 |
GS13#,JZS13#,LS13# ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58162A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58162-31020 |
GS136,LS136 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-91712 |
GS136,LS136 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-31010 |
GS136..4H |
1 | ||
| 58276A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH | ||||
| 58276-91701 |
GS136,LS136 |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91709 |
GS136,LS136 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-31010 |
GS136,LS136 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-31010 |
GS136,LS136 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-91705 |
GS136,LS136 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-31010 |
GS136,LS136 |
1 | ||
| 58319A - PLATE, REAR FLOOR PANEL, FRONT | ||||
| 58024-91702 |
GS136,LS136 |
1 | ||
| 58326B - BRACKET, FLEXIBLE HOSE MOUNTING | ||||
| 58326-31010 |
GS136,LS136 |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-31010 |
GS136,LS136 FOR CENTER FLOOR PAN |
1 | ||
| 58367-31020 |
GS136,LS136 FOR REAR FLOOR PAN |
3 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS136,LS136 |
2 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS136,LS136 |
2 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS136,LS136 |
2 | ||
| 58369-30040 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-31010 |
GS136,LS136 ﾀｲﾌﾟ C |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-31010 |
GS136,LS136 ﾀｲﾌﾟ C |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-31010 |
GS136,LS136 ﾀｲﾌﾟ C |
1 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58709A - CARRIER SUB-ASSY, JACK | ||||
| 58709-91703 |
GS136,LS136 |
1 | ||
| 61685A - BRACKET, REAR SEAT BACK MOUNTING | ||||
| 61685-91602 |
GS130,136,LS136..V,WG |
2 | ||
| Common parts | ||||
| 90463-06476 | ||||
| 90463-10067 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01131 | ||||
| 90950-01173 | ||||
| 90950-01866 | ||||
| 90950-01872 | ||||
| 93580-15012 | ||||
