GS136V-AXJRK (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

Click highlighted areas on diagram

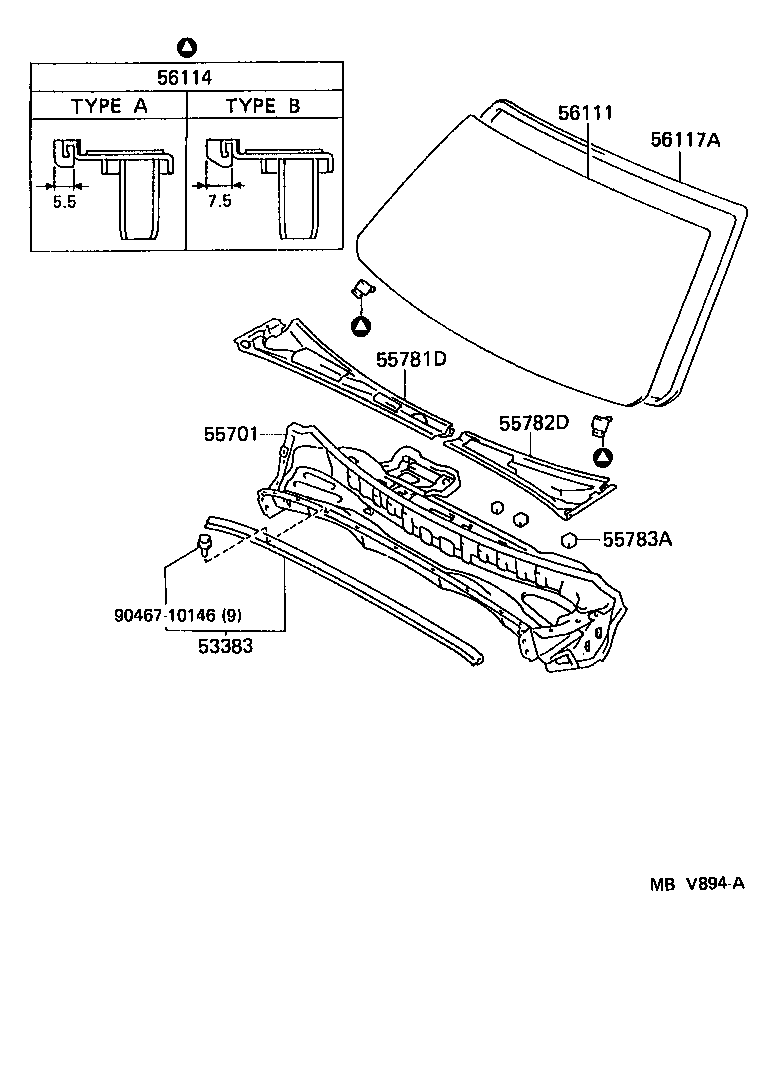

diagram 53383 55701 55781D 55782D 55783A 56111 56114 56117A 9046710146
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-30110

GS13#,JZS13#,LS13#,YS130

 1
53383-30110

GS13#,JZS13#,LS13#

 1
55701 - PANEL SUB-ASSY, COWL
55700-30700

JZS135..4HC;GS13#,JZS130,131,133,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55700-30481

GS130..WG..SALEX;GS130,136..DLX,ROY,SDX,STD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30081

GS13#,JZS13#,LS13#

 1
55781-30081

GS13#,JZS13#,LS13#,YS130

 1
55781-30101

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55781-30101

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30061

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782-30041

GS13#,JZS13#,LS13#

 1
55782-30041

GS13#,JZS13#,LS13#,YS130

 1
55782-30061

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55783A - PAD, COWL TOP SILENCER
55783-30020

GS13#,JZS13#,LS13#,YS130

 6
55783-30020

GS13#,JZS13#,LS13#

 6
56111 - GLASS, WINDSHIELD
56111-31050

GS136..STD

*TL,T=5.3,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56111-31010

GS136..STD

*TL,T=5.3

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30080

GS13#,JZS13#,LS13#

ﾀｲﾌﾟ B

 2
56114-30070

GS13#,JZS13#,LS13#,YS130

ﾀｲﾌﾟ A

 2
56114-30080

GS13#,JZS13#,LS13#,YS130

ﾀｲﾌﾟ B

 2
56114-30070

GS13#,JZS13#,LS13#

ﾀｲﾌﾟ A

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-30200

GS13#,JZS13#,LS13#

 1
56117-30200

GS13#,JZS13#,LS13#,YS130

 1
Common parts
90467-10146
