GS136V-AXJRK (1991)
Toyota Crown

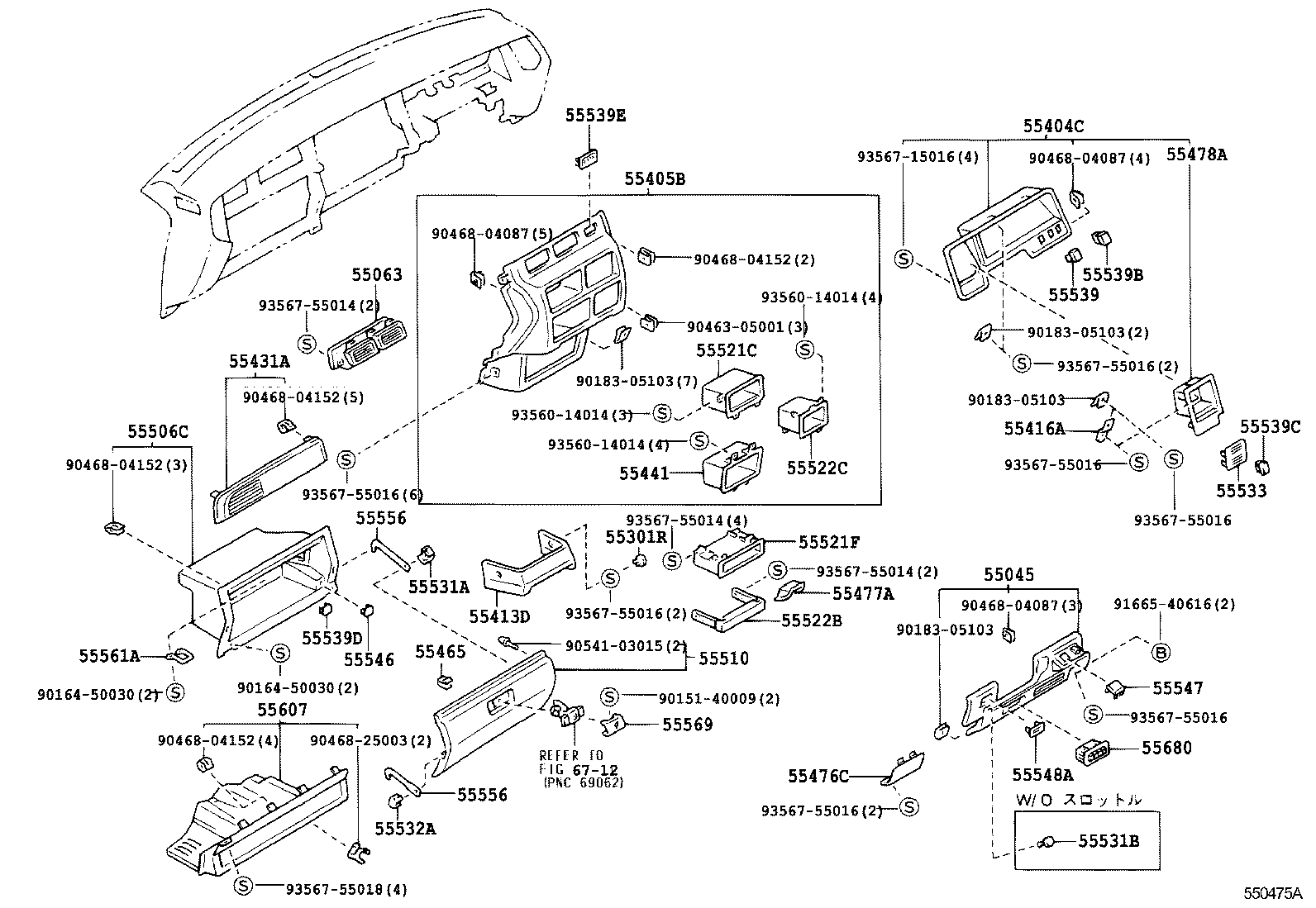

ILLUST NO. 1 OF 2(9110- )GS130,136..STD ; (9112- )YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30070J0 |
GS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG DK.BLUE,TRIM8# |
1 | ||
| 55045-30070J0 |
GS136,LS136;GS130..DLX,STD;GS130..4H..SDX DK.BLUE,TRIM8# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55670-30080J0 |
GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01581J0 |
GS130,136..4H..STD DK.BLUE,TRIM8# |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30710 |
GS130,136..STD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-30300J0 |
GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-30080J0 |
GS130,136..4H..STD DK.BLUE,TRIM8# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30080 |
GS130,136..STD |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-30200 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 55044-30200 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-30190J0 |
YS130;GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55531-30170 |
GS136,LS136..DLX,STD;GS130,YS130..DLXA,STD |
1 | ||
| 55531-30170 |
GS130..STD;GS136,LS136..DLX,STD |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-30110J0 |
GS130,136..4H DK.BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-30040 |
GS130,136..STD |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-30080 |
GS130,136..STD |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30220J0 |
GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-30120J0 |
GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55521-16030 |
GS13#,JZS13#,LS13# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-16030 |
GS136..STD |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-30110J0 |
GS130,136..STD DK.BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55531-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-30130J0 |
GS136,LS136;GS130..DLX,STD;GS130..4H..SDX DK.BLUE,TRIM8# |
1 | ||
| 55531-30130J0 |
GS130..DLX,STD;GS136,LS136,YS130;GS130..4H..SDX..HTWC DK.BLUE,TRIM8# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55532-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-30100 |
GS130,136..STD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS130,131;JZS133,135..4FC;GS13#,LS13#..DLX,SALEX,SDX,STD |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-30090 |
GS136..MTM;GS130,131,JZS131,133,LS13#,YS130..SED,V |
1 | ||
| 55539-30090 |
GS136..MTM;GS130,131,JZS131,133,LS13#..SED,V |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS131..SALEX;GS13#,JZS130,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55546-30030 |
GS13#,JZS130,131,133,LS13# |
1 | ||
| 55546-30030 |
GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55538-20050 |
GS130,136..STD |
1 | ||
| 55546 - COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE | ||||
| 55546-30030 |
GS130..STD;GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 55546-30030 |
GS130..ROY,STD;GS130,136,JZS130,LS130,136..V,WG;GS130,YS130..(DLX,DLXA,SDX,STD)..(LPEFI,TWLPG) |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 74267-24010J0 |
GS130..5F..STD;GS130..4H..(SDX,STD);GS136,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 74267-24010J0 |
YS130..DLXA,STD;GS136,LS136..DLX,STD;GS130..4FC..SDX..TWLPG;GS130..(4FC,5F)..(ROY,STD);GS130..(4H,4HC)..(SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30070J0 |
GS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG DK.BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30010J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30120J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030C0 |
GS130..STD;GS136,LS136 BLACK,TRIM8# |
1 | ||
| Common parts | ||||
| 90151-40009 | ||||
| 90164-50030 | ||||
| 90183-05103 | ||||
| 90463-05001 | ||||
| 90468-04087 | ||||
| 90468-04152 | ||||
| 90468-25003 | ||||
| 90541-03015 | ||||
| 91665-40616 | ||||
| 93560-14014 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| Linked diagrams | ||||
| 6712 | ||||
ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-30080 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55321-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55323-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55324-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-30010 |
GS130,136..STD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30301J0 |
GS13#,LS136 DK.BLUE,TRIM8# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30130 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30070 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 55436-30070 |
GS130,136,LS130,136,YS130..DLX,DLXA,SDX,STD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30170J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30260J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55951-30100 |
GS13#,JZS13#,LS13# |
1 | ||
| 55951-30100 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30060J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30040J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55967-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55971-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55972-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30020J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30020J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-06077 | ||||
| 90119-08196 | ||||
| 90179-06054 | ||||
| 90179-06074 | ||||
| 90467-14013 | ||||
| 90468-04152 | ||||
| 90468-05075 | ||||
| 91645-80820 | ||||
| 91655-60616 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
